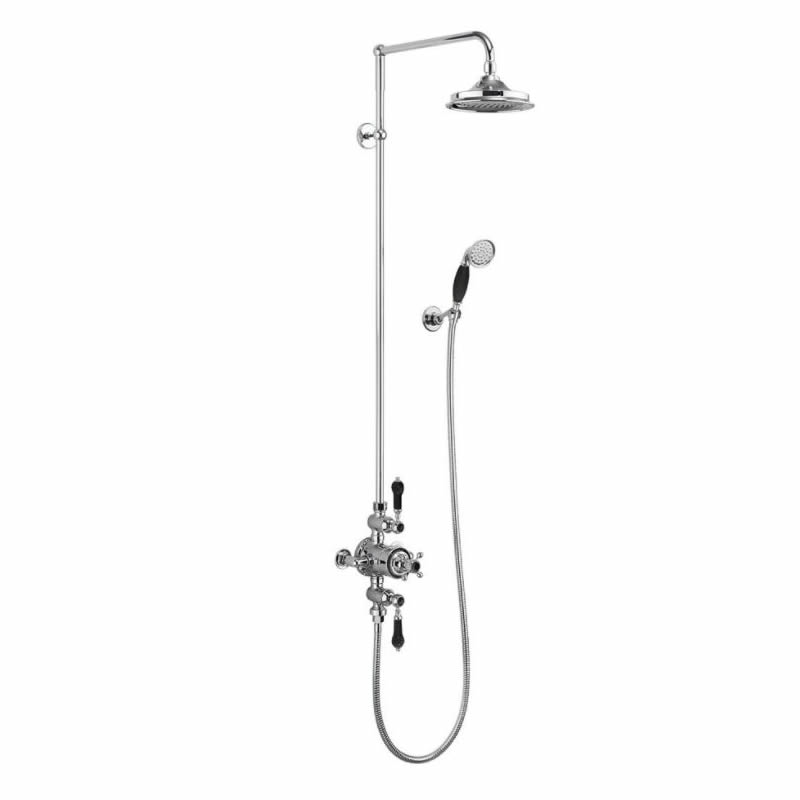

Avon Thermostatic dual function brass valve

Product Options

shower head options

6 inch

9 inch

12 inch

Finish Options

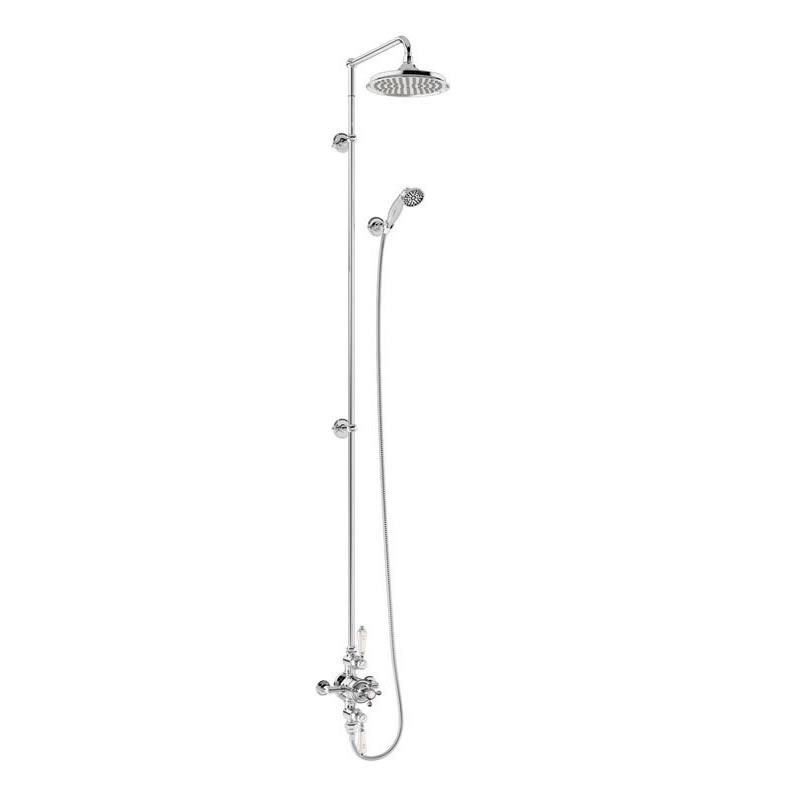

Avon Medici Thermostatic Exposed Shower Valve Two Outlet,Extended Rigid Riser, Swivel Shower Arm, Handset & Holder with Hose with 6 inch rose

Chrome

Indicies & lever finish

White

Medici

Black

rigid riser option

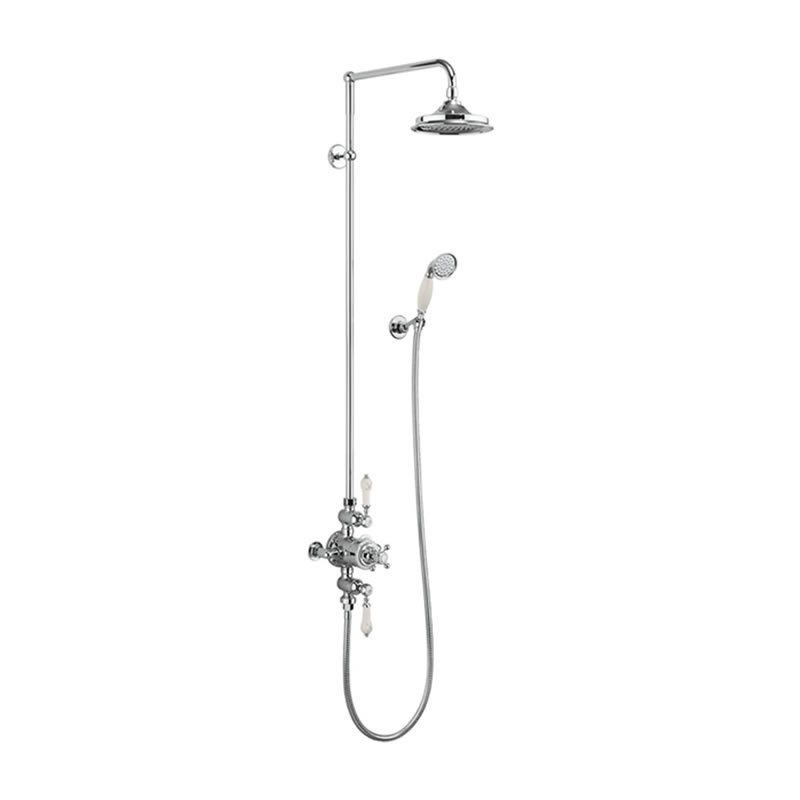

Avon Medici Thermostatic Exposed Shower Valve Two Outlet,Rigid Riser, Swivel Shower Arm, Handset & Holder with Hose with 6 inch rose

Standard rigid riser

Extended rigid riser

As Shown

AF3S Avon Thermostatic Exposed Shower Valve Two Outlet, Swivel Shower Arm, Handset & Holder with Hose

ME31 Medici kit for Avon Thermostatic Exposed Shower Valve Two Outlet, Swivel Shower Arm, Handset & Holder with Hose (excluding Shower Head and Rigid Riser) - chrome

V16 6 inch shower rose

V22 Extended vertical riser

BAF3S.EXT MED_V16 - Combined product code

Colour

AF3S - shower kit - Polished Chrome

ME31 - valve - Medici

V16 - shower rose - Polished Chrome

V22 - riser - Polished Chrome

Material

AF3S - shower kit - Brass

ME31 - valve - Brass

V16 - shower rose - ABS

V22 - riser - Brass

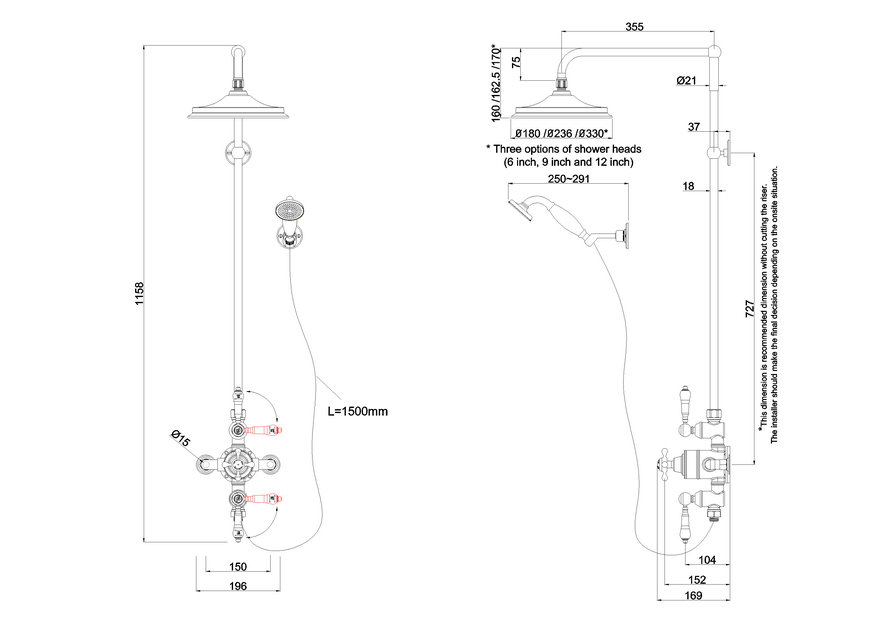

Size

AF3S - 169 x 196 x 366mm

ME31 - 100 x 60 x 60mm

V16 - 180 x 180 x 85mm

V22 - 171 x 60 x 1800mm

Nett Weight

AF3S - shower kit - 4.8kg

ME31 - valve - 0.285kg

V16 - shower rose - 0.34kg

V22 - riser - 1.84kg

Gross Weight Including Packaging

AF3S - shower kit - 6.7kg

ME31 - valve - 0.3kg

V16 - shower rose - 0.58kg

V22 - riser - 2.41kg

Packed Dimension

AF3S - 435 x 400 x 175 = 0.0305 m3

ME31 - 110 x 70 x 70 = 0.0005 m3

V16 - 200 x 190 x 100 = 0.0038 m3

V22 - 1820 x 95 x 70 = 0.0121 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

Additional Information

V22 Extended vertical riser is available if required and can be ordered as an option

Traditional brass body, Claremont handle, with ceramic levers

Adjustable wall bracket, 1500mm shower hose, and handset with ceramic handle

18mm diameter vertical brass shower riser

355mm adjustable swivel shower arm

6" AirBurst shower head (as shown on image)

The shower head has anti-limescale silicon nipples.

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
12 inch rose	4.23	7.62	10.27	15.7	19.1	n/a	n/a
12 inch rose & handset	7.27	9.85	15.01	23.71	30.14	n/a	n/a
6 inch rose	4.05	6.39	8.27	11.55	14.46	n/a	n/a
6 inch rose & handset	7.08	9.17	14.58	22.5	28.11	n/a	n/a
9 inch rose	3.64	4.15	7	10.46	13.04	n/a	n/a
9 inch rose & handset	6.86	8.34	14.18	21.93	26.5	n/a	n/a
Handset	3.13	5.92	8.06	11.55	14.6	n/a	n/a

Spare parts

ACSH1	1.5m Shower hose with ACS approval for T8, T8-QT, TF2S, TF3S, AF3S, T2DB
SP118	2 x chrome dome + 2 x connection part for V25
SP806	3x rubber o rings and 1x plastic washer for all finishes products of V21, V22, ARCV21, ARCV22
SP175	back plate of product AF3S, AF1S, ARC74 CHR
SP593	bottom lever (including thread) for two outlets valves (on, off indices)
V29	burlington Ceramic telephone handset
V26	burlington Shower hose 1500mm
SP958	cartridge cap of product AF1S, AF3S
SP163	ceramic B indices with Chrome for V34 and V36
SP1209	ceramic handle for Burlington telephone handset
V10_2	ceramic levers for Avon & Clyde dual control valves (pair)
SP108	ceramic ring for all finishes products of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4
SP1664	check valve for all finishes products of EF1S, EF2S, T2WS, T2DS, AF1S, AF3S, T2DB, T2WB
SP873	chrome bevel and threaded part of Burlington & Arcade valve handles
SP110	chrome compression nut and olive for V21, V22, V31, V27
V1	claremont valve handle 1 (single)
SP596	claremont valve handle for all valves, (except Stour)
V31	diverter with ceramic lever
SP553	fixing nut & retaining ring of product AF1S, AF3S, ARC74 CHR
SP1692	fixing screw sets (including flat washer and spring washer) for all finishes products of Avon valve, Trent valve, Severn valve
SP1248	gear sleeve for stop valve for AF1S, ARC74 CHR, AF3S, AF3S BLA, BF1S
SP599	grub screw (M4x4)
SP603	grub screw (M5x5) for all finishes products of SF1S, SF3S, AF1S, AF3S, GU422DC, GU422DG, GU422DL
SP37	hent F5 flow control cartridge
SP36	hent F6 flow control cartridge
SP994	inner box and internal package of product AF3S
SP751	lever base for AF1S, ARC74 CHR, TF3S, VF3S, TF3S BLA, ARCV25 CHR, SF3S, AF3S, AF3S BLA, TF2S, TF1S, VF1S, TF1H, ARC64 CHR, ARC73 CHR, TF1S BLA, TF1H BLA, TF2S BLA, SF1S
SP935	lower water flow control section of product AF1S, AF3S
SP128	metal block for ARC74 CHR, AF1S, AF3S
SP713	metal part of the diverter handle of V31 with screw
SP1784	olives part (one pair) for R6 CHR, R7 CHR, AF1S, AF3S, EF1S, EF2S, T2WB, T2WS
SP388	one set of hot and cold inlet elbow for V25, AF3S (including compression nut and cover plate)
SP662	one unit of wall Bracket for V21and V22(28-171mm)
SP714	optional elbow for V25, ARC74 CHR, AF1S, AF3S (one pair)
SP155	pair of cover plate for V25, AF3S, AF1S, ARC74 CHR
SP1310	plastic block for all finishes products of AF1S, ARC74, V25, AF3S
SP1385	retaining nut for all finishes products of BF3S, AF1S, ARC74, ARCV25, V25, AF3S, BF2S, BF1S
SP997	retaining sleeve of products AF1S, AF3S, ARC74 CHR
V18	shower hook (for wall mounting of telephone shower head)
SP130	single top, bottom control knob for flow of product AF1S, AF3S
SP601	small grub screw (M4x4)
V11_1	straight shower arm for vertical riser mounting
SP1147	the bracket for BF3S, BF2S, SF3S, V21, V22 (including screws)
SP1128	the screws and expansion tubes for Trent, Avon, Eden valves (6 sets)
SP1369	top control section for AF3S, V25, AF1S
SP592	top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices)
SP32	vernet T1 temperature control cartridge
SP929	wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H
SP1293	washer for all finishes products of ARC74, AF3S
