Tay Deck mounted Thermostatic two outlet twin control bath shower mixer
Product Options
Indicies & lever finish
shower head options
bath spout options
|
White
|
Medici
|
6 inch
|
9 inch
|
12 inch
|
|
with swivel bath spout
|
with fixed bath spout
|

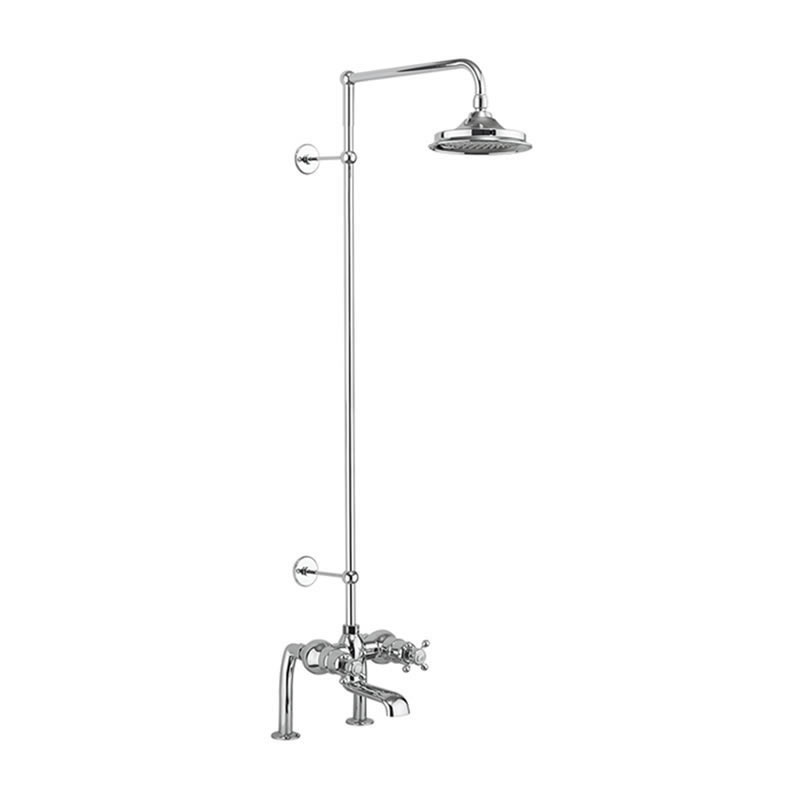

As Shown

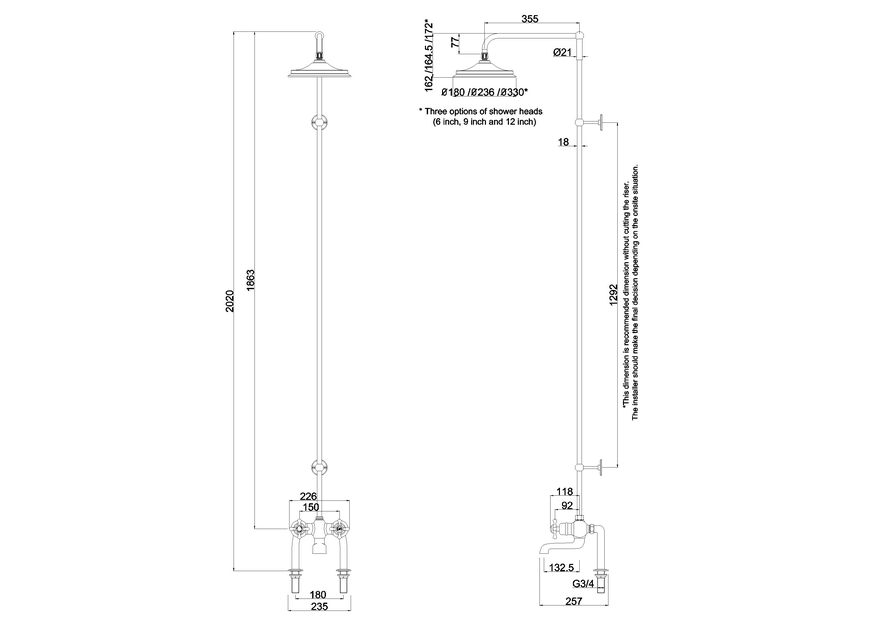

| T2DS Tay Thermostatic Bath Shower Mixer Deck Mounted with Swivel Shower Arm |
| V22 Extended vertical riser |
| V60 12 inch shower rose |
| BT2DS.EXT+V60 - Combined product code |
Colour
| T2DS - tap - Polished Chrome |
| V22 - riser - Polished Chrome |
| V60 - shower rose - Polished Chrome |
Gross Weight Including Packaging
| T2DS - tap - 6.06kg |
| V22 - riser - 2.41kg |
| V60 - shower rose - 2.17kg |
Packed Dimension
| T2DS - 435 x 400 x 140 = 0.0244 m3 |
| V22 - 1820 x 95 x 70 = 0.0121 m3 |
| V60 - 356 x 342 x 102 = 0.0124 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Traditional brass body, and Claremont handles, with ceramic indices |
|
Brass bath spout with swivel function |
|
Available deck or wall mounted |
|
18mm diameter vertical brass shower riser |
|
355mm adjustable swivel shower arm |
|
Image shown is with 6 inch rose. |
|
Extended vertical riser V22 is produced in two parts and then joined together as one riser. |
|
The shower head has anti-limescale silicon nipples. |
|
Minimum recommended pressure of 2 Bar |
|
Hot & cold inlet ∅15mm |
Compatible Products
| V33 - Slide rail |
| V27 - Ceramic telephone handset, hose & divertor |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 12 inch rose | 3.77 | 4.88 | 7.94 | 11.8 | 14.5 | n/a | n/a |
| 6 inch rose | 3.62 | 4.32 | 6.83 | 10.04 | 12.07 | n/a | n/a |
| 9 inch rose | 2.88 | 4.03 | 6.2 | 9.16 | 11.58 | n/a | n/a |
| Spout (aerator) | 3.42 | 5.01 | 8.01 | 11.87 | 14.71 | n/a | n/a |
| Spout (straightener) | 4.73 | 6.14 | 9.84 | 14.45 | 17.96 | n/a | n/a |
| SP806 | 3x rubber o rings and 1x plastic washer for all finishes products of V21, V22, ARCV21, ARCV22 |
| SP162 | aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1548 | aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1052 | cartridge cover for EF1S, EF2S, T2WB, T2DB, T2WS, T2DS |
| SP839 | ceramic indice with texts shower-bath for product T2WB, T2DB, T2WS, T2DS |
| SP1664 | check valve for all finishes products of EF1S, EF2S, T2WS, T2DS, AF1S, AF3S, T2DB, T2WB |
| SP873 | chrome bevel and threaded part of Burlington & Arcade valve handles |
| SP110 | chrome compression nut and olive for V21, V22, V31, V27 |
| V1 | claremont valve handle 1 (single) |
| SP596 | claremont valve handle for all valves, (except Stour) |
| SP1547 | flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP599 | grub screw (M4x4) |
| SP1783 | metal block for EF1S, EF2S, T2WB, T2WS, T2DS |
| SP726 | metal block for Trent, Severn, Eden, Spey shower valves |
| SP583 | mingshi F3 flow control cartridge |
| SP1170 | new Sedal cartridge for Tay BSM, used for EF1S, EF2S, T2WS, T2DS, T2WB, T2DB which with updated valve body |
| SP1722 | o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2 |
| SP1896 | old retaining ring for EF1S, EF2S, T2WS, T2DS, T2WB, T2DB |
| SP662 | one unit of wall Bracket for V21and V22(28-171mm) |
| SP995 | pair of deck mounted unions of product T2DB, T2DS |
| SP1350 | retaining nut for T2DB, T2WB, EF1S, EF2S, T2WS, T2DS |
| SP601 | small grub screw (M4x4) |
| V11_1 | straight shower arm for vertical riser mounting |
| SP1147 | the bracket for BF3S, BF2S, SF3S, V21, V22 (including screws) |
| SP585 | VQT2 cartridge temperature control cartridge |
| SP929 | wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H |
| SP1735 | washers (pair) on the back of body of EF2S, EF1S, T2WS, T2DS, T2DB, T2WB |
| SP1778 | white overflow ring for EF1S, EF2S, T2WS, T2DS, T2WB, T2DB |
