Tay Deck mounted Thermostatic two outlet twin control bath shower mixer

Product Options

bath spout options

Tay Thermostatic Bath Shower Mixer Deck Mounted

with swivel bath spout

Tay Thermostatic Bath Shower Mixer Deck Mounted with fixed spout

with fixed bath spout

As Shown

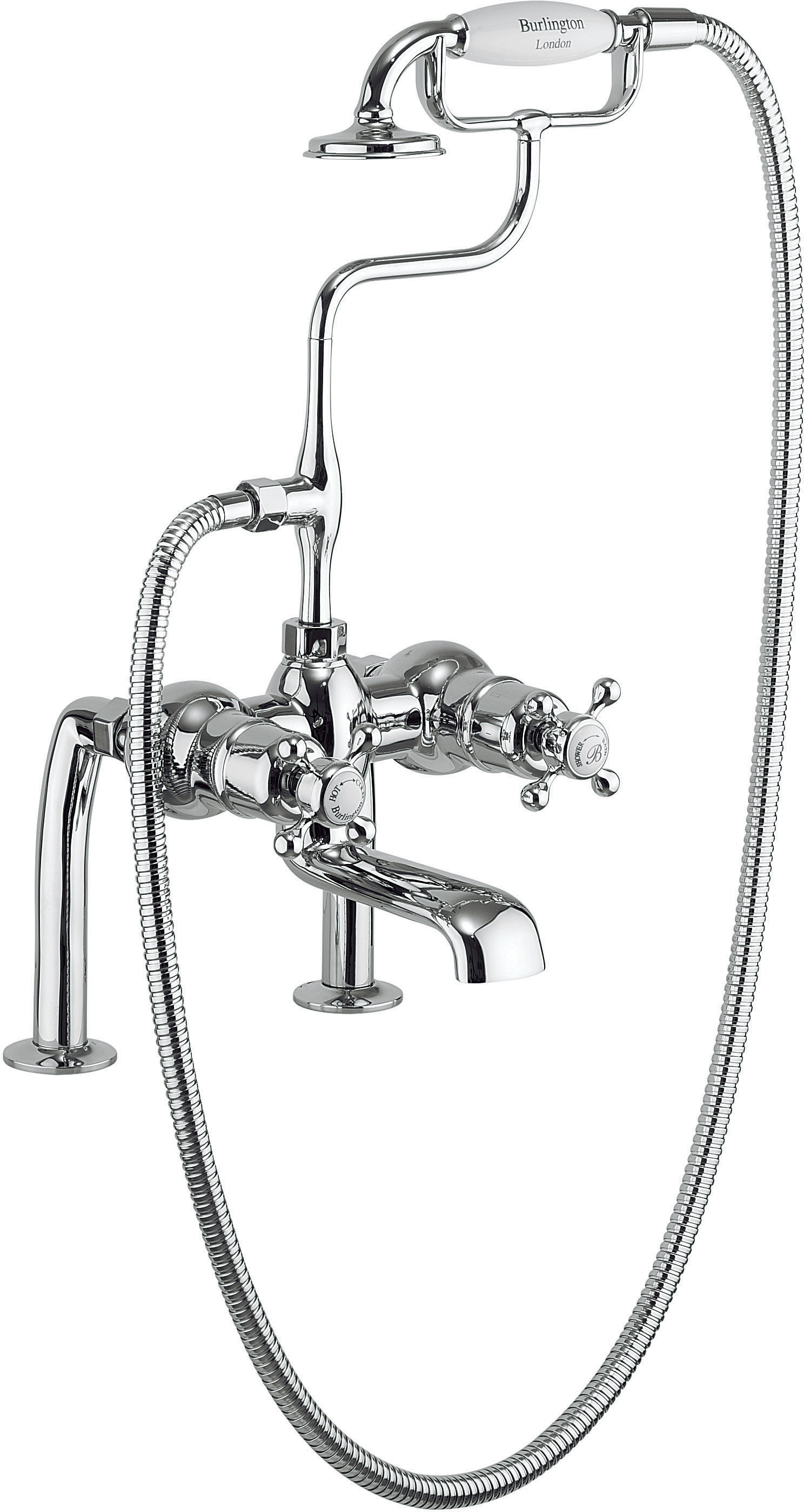

T2DB Tay Thermostatic Bath Shower Mixer Deck Mounted

Colour

T2DB - tap - Polished Chrome

Material

T2DB - tap - Brass

Size

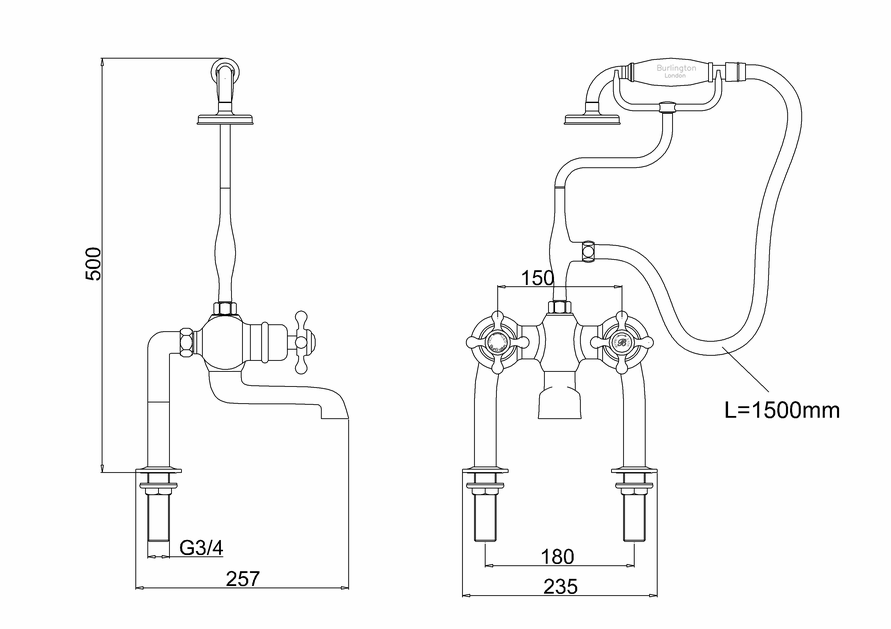

T2DB - 257 x 235 x 500mm

Nett Weight

T2DB - tap - 5.54kg

Gross Weight Including Packaging

T2DB - tap - 6.95kg

Packed Dimension

T2DB - 470 x 350 x 160 = 0.0263 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

Additional Information

Traditional brass body, and Claremont handles, with ceramic indices

Brass bath spout with swivel function

Available deck or wall mounted

S connector and bracket, 1500mm shower hose, and handset with ceramic handle

This product is supplied with both a straightener for low pressure and an aerator for high pressure (screws into the nozzle on the front of the spout) a small plastic toll is supplied to make changing the aerator / straightener an easy operation.

Minimum recommended pressure of 2 Bar

This product is compatible with the W7 floor mounting leg set

The length of the shower hose is 1.5m

Large bore shower hose (11mm)

Hot & cold inlet ∅15mm

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Handset	3.65	4.87	7.37	11.35	14.1	n/a	n/a
Spout (aerator)	3.76	4.85	6.26	10.83	13.71	n/a	n/a
Spout (straightener)	4.88	6.52	9.86	14.34	18.22	n/a	n/a

Spare parts

ACSH1	1.5m Shower hose with ACS approval for T8, T8-QT, TF2S, TF3S, AF3S, T2DB
SP162	aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
V26	burlington Shower hose 1500mm
SP1052	cartridge cover for EF1S, EF2S, T2WB, T2DB, T2WS, T2DS
SP1209	ceramic handle for Burlington telephone handset
SP839	ceramic indice with texts shower-bath for product T2WB, T2DB, T2WS, T2DS
SP1664	check valve for all finishes products of EF1S, EF2S, T2WS, T2DS, AF1S, AF3S, T2DB, T2WB
SP873	chrome bevel and threaded part of Burlington & Arcade valve handles
SP164	chrome linking splines and chrome for V34 & V36
V1	claremont valve handle 1 (single)
SP596	claremont valve handle for all valves, (except Stour)
SP1547	flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP600	grub screw (M3x5)
SP599	grub screw (M4x4)
SP602	grub screw for T2WB and T2DB (M4x3)
SP726	metal block for Trent, Severn, Eden, Spey shower valves
SP583	mingshi F3 flow control cartridge
SP1170	new Sedal cartridge for Tay BSM, used for EF1S, EF2S, T2WS, T2DS, T2WB, T2DB which with updated valve body
SP1722	o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2
SP995	pair of deck mounted unions of product T2DB, T2DS
SP1350	retaining nut for T2DB, T2WB, EF1S, EF2S, T2WS, T2DS
SP585	VQT2 cartridge temperature control cartridge
SP1735	washers (pair) on the back of body of EF2S, EF1S, T2WS, T2DS, T2DB, T2WB
