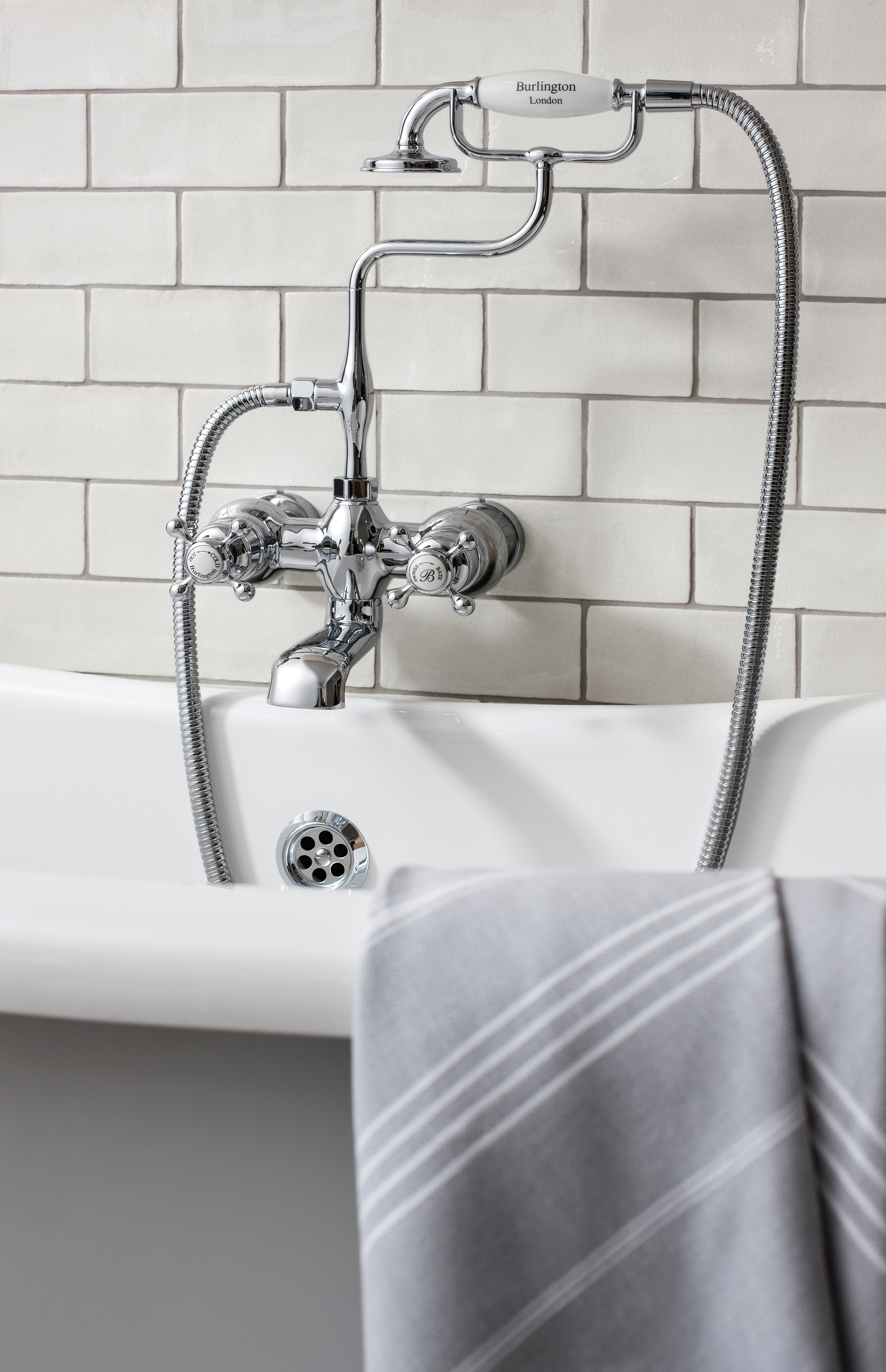

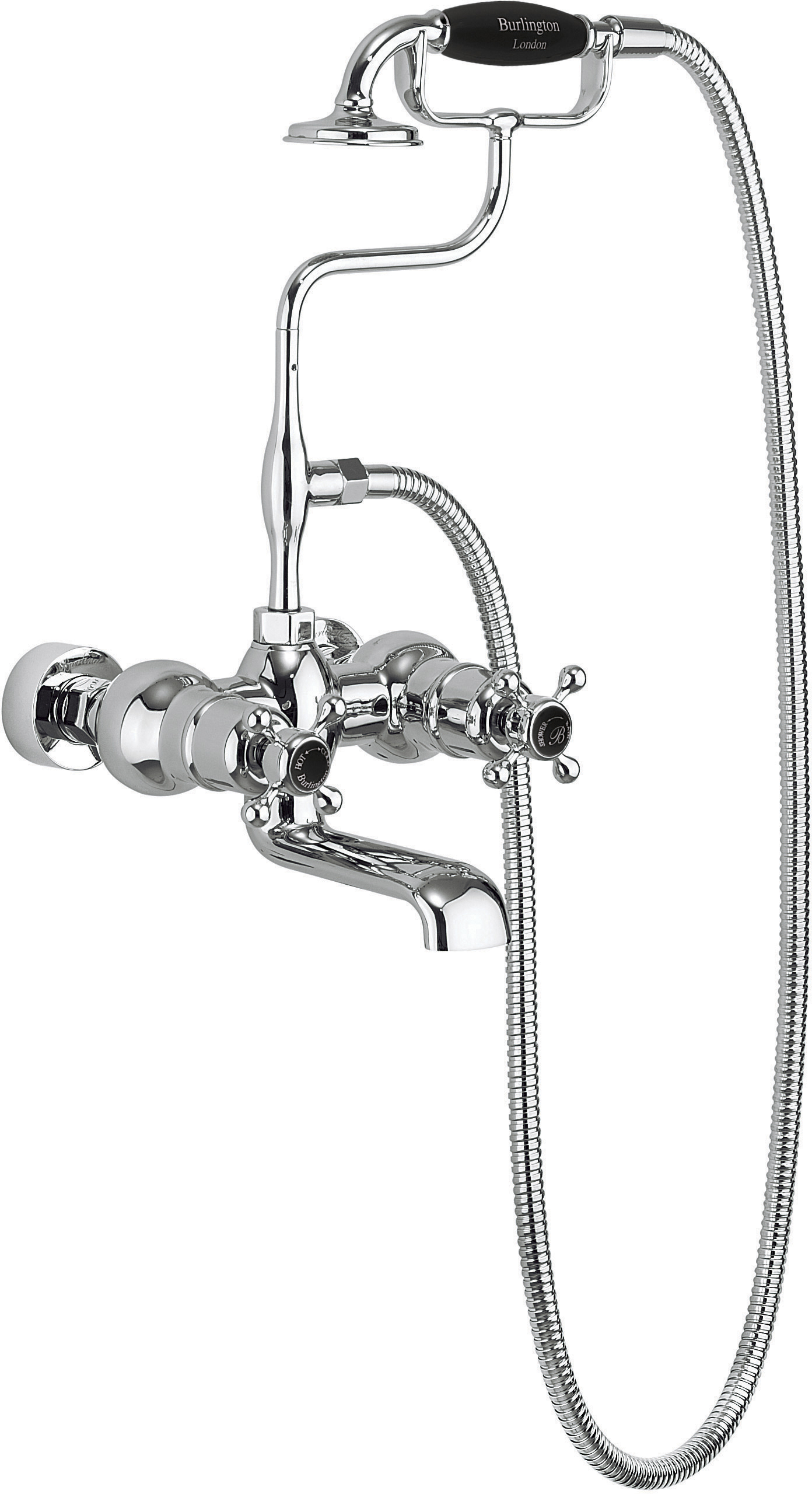

Tay Wall mounted Thermostatic two outlet twin control bath shower mixer

As Shown

T2WB Tay Thermostatic Bath Shower Mixer Wall Mounted

Colour

T2WB - tap - Polished Chrome

Material

T2WB - tap - Brass

Size

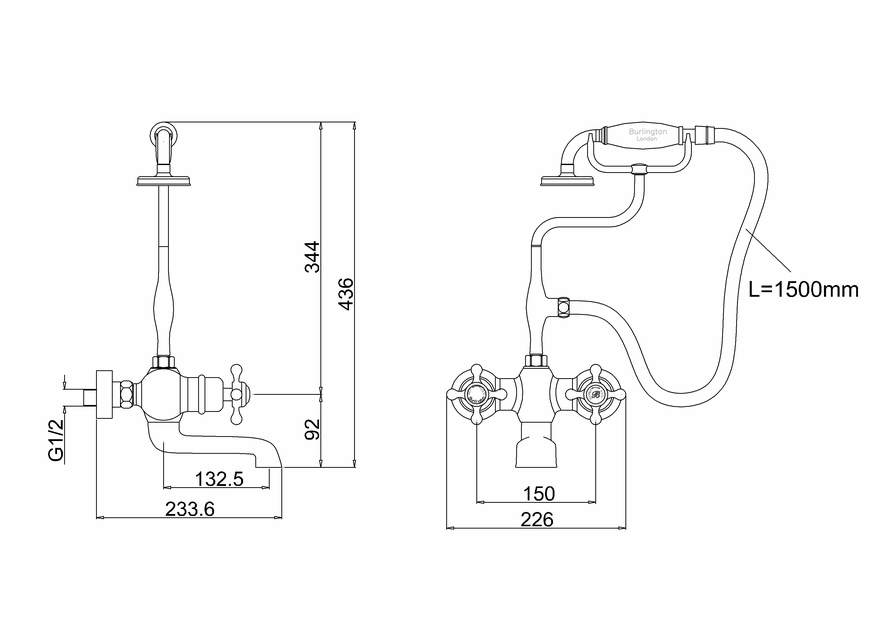

T2WB - 125 x 210 x 374mm

Nett Weight

T2WB - tap - 4.63kg

Gross Weight Including Packaging

T2WB - tap - 5.15kg

Packed Dimension

T2WB - 570 x 420 x 140 = 0.0335 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

Additional Information

This product is supplied with both a straightener for low pressure and an aerator for high pressure (screws into the nozzle on the front of the spout) a small plastic toll is supplied to make changing the aerator / straightener an easy operation.

Traditional brass body, and Claremont handles, with ceramic indices

Brass bath spout with swivel function

Available deck or wall mounted

S connector and bracket, 1500mm shower hose, and handset with ceramic handle

Minimum recommended pressure of 2 Bar

The length of the shower hose is 1.5m

Large bore shower hose (11mm)

Hot & cold inlet ∅15mm

Compatible Products

V2 - Anglesey Valve Handle (single)

V3 - Birkenhead Valve Handle (single)

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Handset	3.39	5.33	7.89	12	14.86	n/a	n/a
Spout (aerator)	3.03	4.42	6.47	10.15	12.84	n/a	n/a
Spout (straightener)	4.17	6.26	9.06	13.8	16.83	n/a	n/a

Spare parts

SP376	adaptor(pair) G1, 2 male thread to 15mm pipe
SP162	aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548	aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
V26	burlington Shower hose 1500mm
SP1052	cartridge cover for EF1S, EF2S, T2WB, T2DB, T2WS, T2DS
SP1209	ceramic handle for Burlington telephone handset
SP839	ceramic indice with texts shower-bath for product T2WB, T2DB, T2WS, T2DS
SP1664	check valve for all finishes products of EF1S, EF2S, T2WS, T2DS, AF1S, AF3S, T2DB, T2WB
SP873	chrome bevel and threaded part of Burlington & Arcade valve handles
V1	claremont valve handle 1 (single)
SP596	claremont valve handle for all valves, (except Stour)
SP1547	flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP600	grub screw (M3x5)
SP599	grub screw (M4x4)
SP602	grub screw for T2WB and T2DB (M4x3)
SP1483	joint cover for T2WS, EF1S, EF2S, T2WB
SP1783	metal block for EF1S, EF2S, T2WB, T2WS, T2DS
SP726	metal block for Trent, Severn, Eden, Spey shower valves
SP583	mingshi F3 flow control cartridge
SP1170	new Sedal cartridge for Tay BSM, used for EF1S, EF2S, T2WS, T2DS, T2WB, T2DB which with updated valve body
SP1896	old retaining ring for EF1S, EF2S, T2WS, T2DS, T2WB, T2DB
SP1784	olives part (one pair) for R6 CHR, R7 CHR, AF1S, AF3S, EF1S, EF2S, T2WB, T2WS
SP1701	one pair of connectors for EF1S, EF2S, T2WS, T2WB
SP1268	one piece of wall plate for EF1S, EF2S, T2WS, T2WB
SP981	pair of retaining Sleeve for product EF1S, EF2S, T2WS, T2WB
SP1350	retaining nut for T2DB, T2WB, EF1S, EF2S, T2WS, T2DS
SP1128	the screws and expansion tubes for Trent, Avon, Eden valves (6 sets)
SP585	VQT2 cartridge temperature control cartridge
SP1735	washers (pair) on the back of body of EF2S, EF1S, T2WS, T2DS, T2DB, T2WB
SP1778	white overflow ring for EF1S, EF2S, T2WS, T2DS, T2WB, T2DB
