30cm single door wall unit
Product Options
Finish Options
|
Dark Olive
|

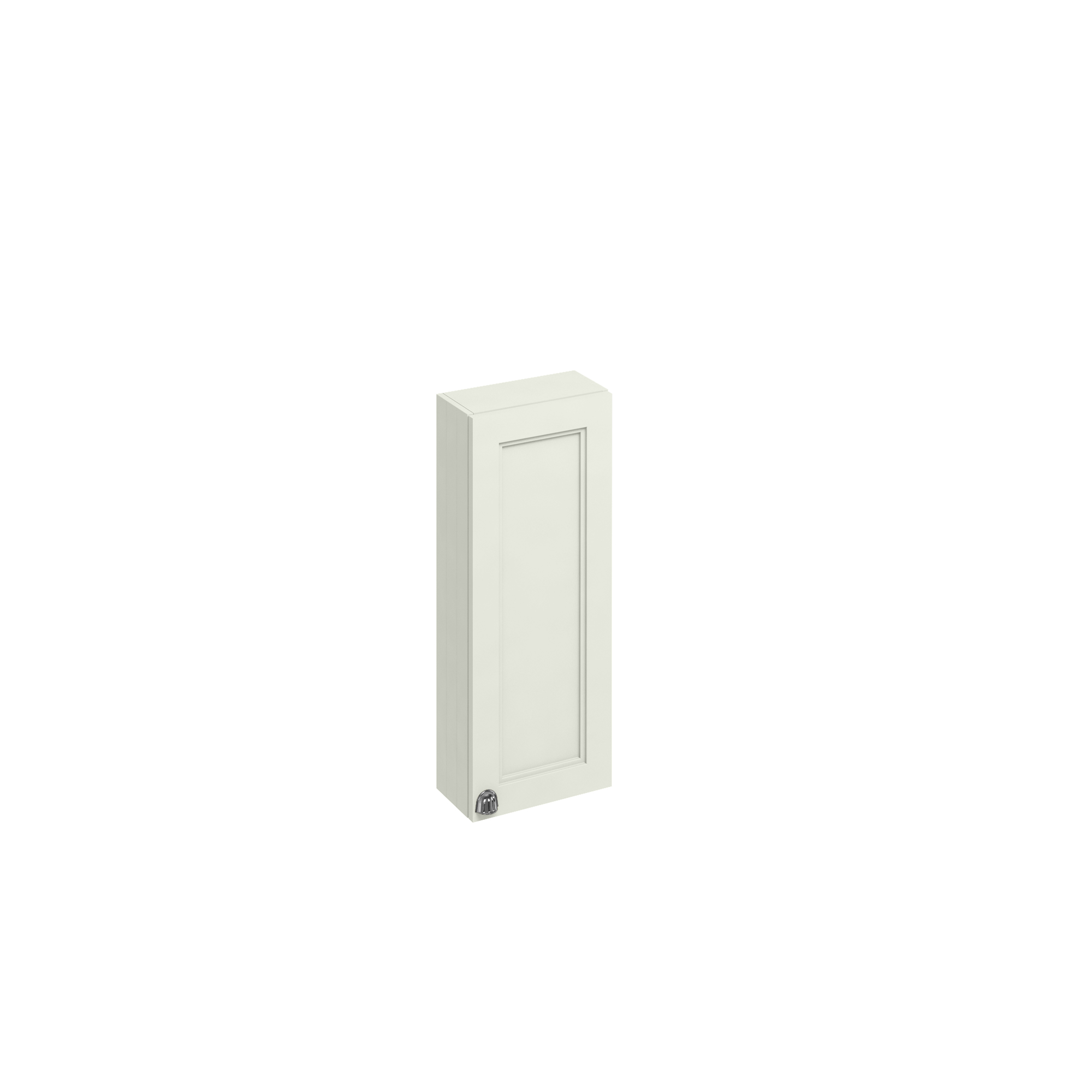

Sand
|

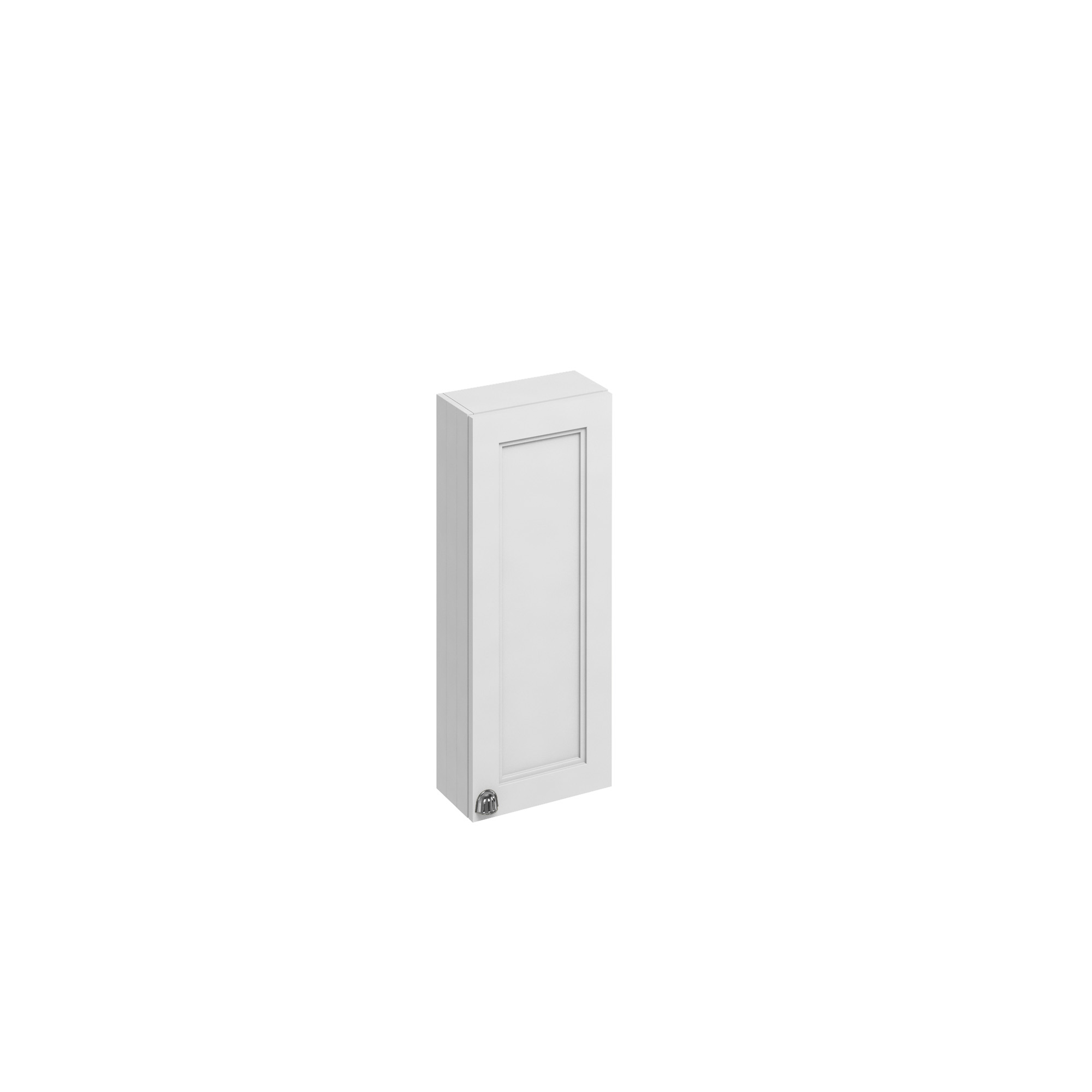

Matt White
|
Classic Grey
|
Blue
|
|
As Shown
| F3WO 300 Single Door Wall Unit |
Nett Weight
| F3WO - wall cabinet - 6.25kg |
Gross Weight Including Packaging
| F3WO - wall cabinet - 8.1kg |
Packed Dimension
| F3WO - 365 x 215 x 815 = 0.064 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Includes 2 adjustable glass shelves |
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Soft close door |
|
5mm safety glass shelves |
|
Door can be opened left or right |
|
Rigid solid carcass - not flat pack |
| SPF6WDP-O | door panel for F6WO, F3WO |
| SPF3WGS | glass shelf for F3W, F3M |
| SP673 | hinges for the straight panel of F30, F3W, F3M, F3T, F6M, F6W, F60, F6B (1x soft close, 1x non-soft close) |
| SP1348 | one piece of soft close hinge for Aqua straight panel |
Downloads
-
2D CAD-File - DWG -
F3WO
(F3W.dwg)
-

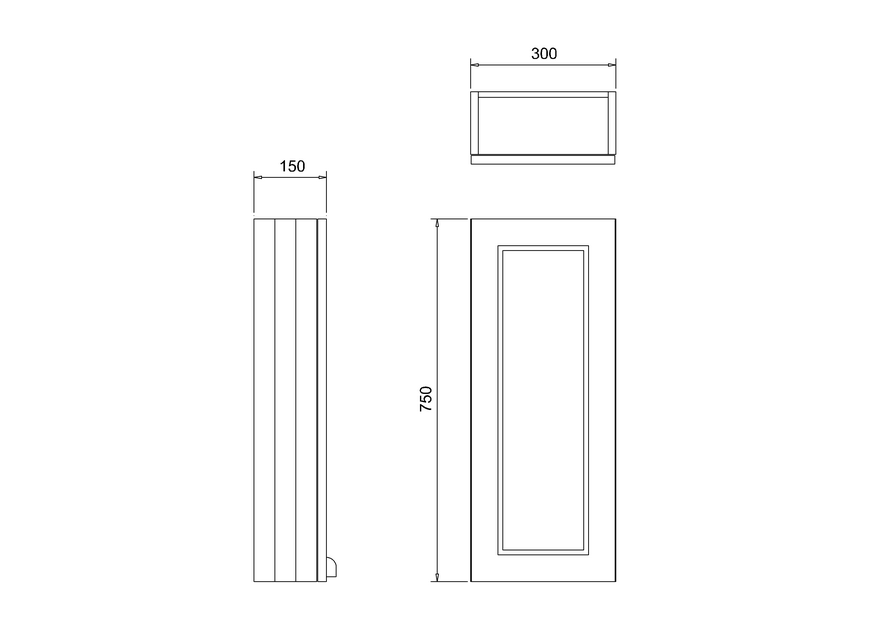

2D Drawing - PDF -
F3WO
(F3W.pdf)
2D Drawing - PDF - F3WO
-
3D DWG - File - DWG
-
F3WO
(F3W_1.dwg)
-
3D DXF - File - DXF
-
F3WO
(F3W_1.dxf)
-
3D IGS - File - IGS
-
F3WO
(F3W_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
F3WO
(F3W_1.rfa)
