1200mm basin
asaq2.Model.Web_product_new?.web_name
Product Options
mounting options

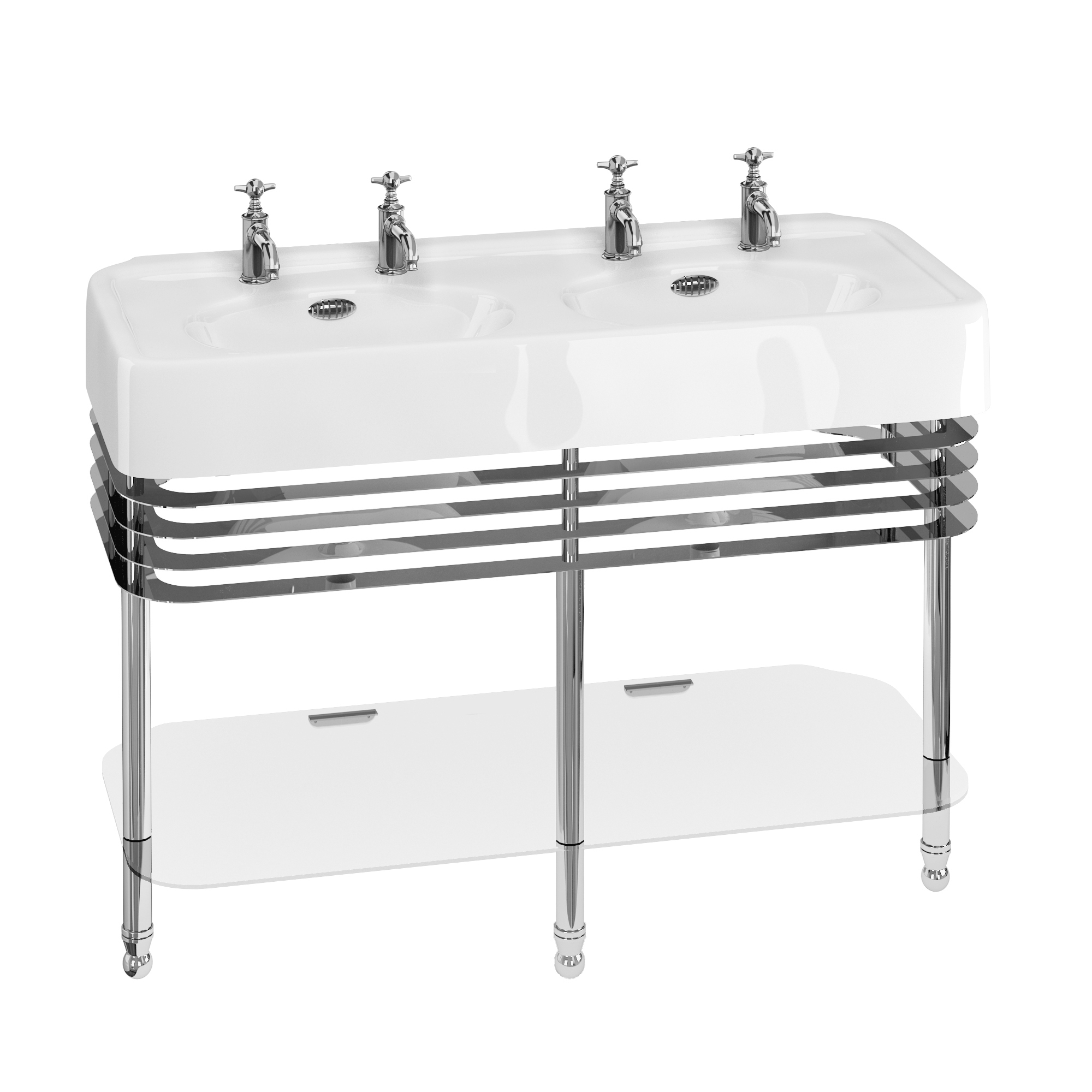

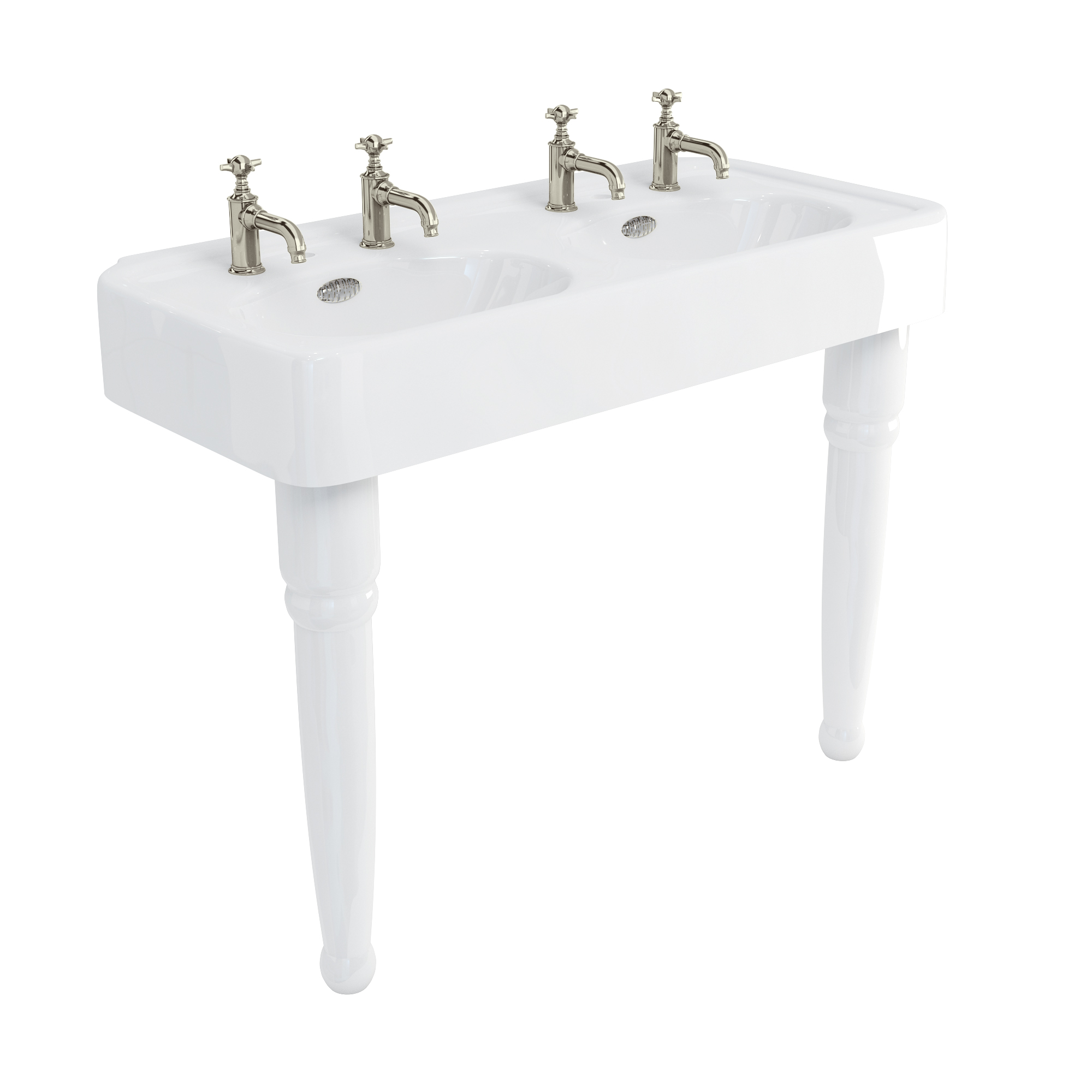

Arcade 1200mm basin with chrome overflow & basin stand with double basin & overflows basin stand Arcade 1200mm basin with chrome overflow & ceramic console legs ceramic console legs
overflow finish options

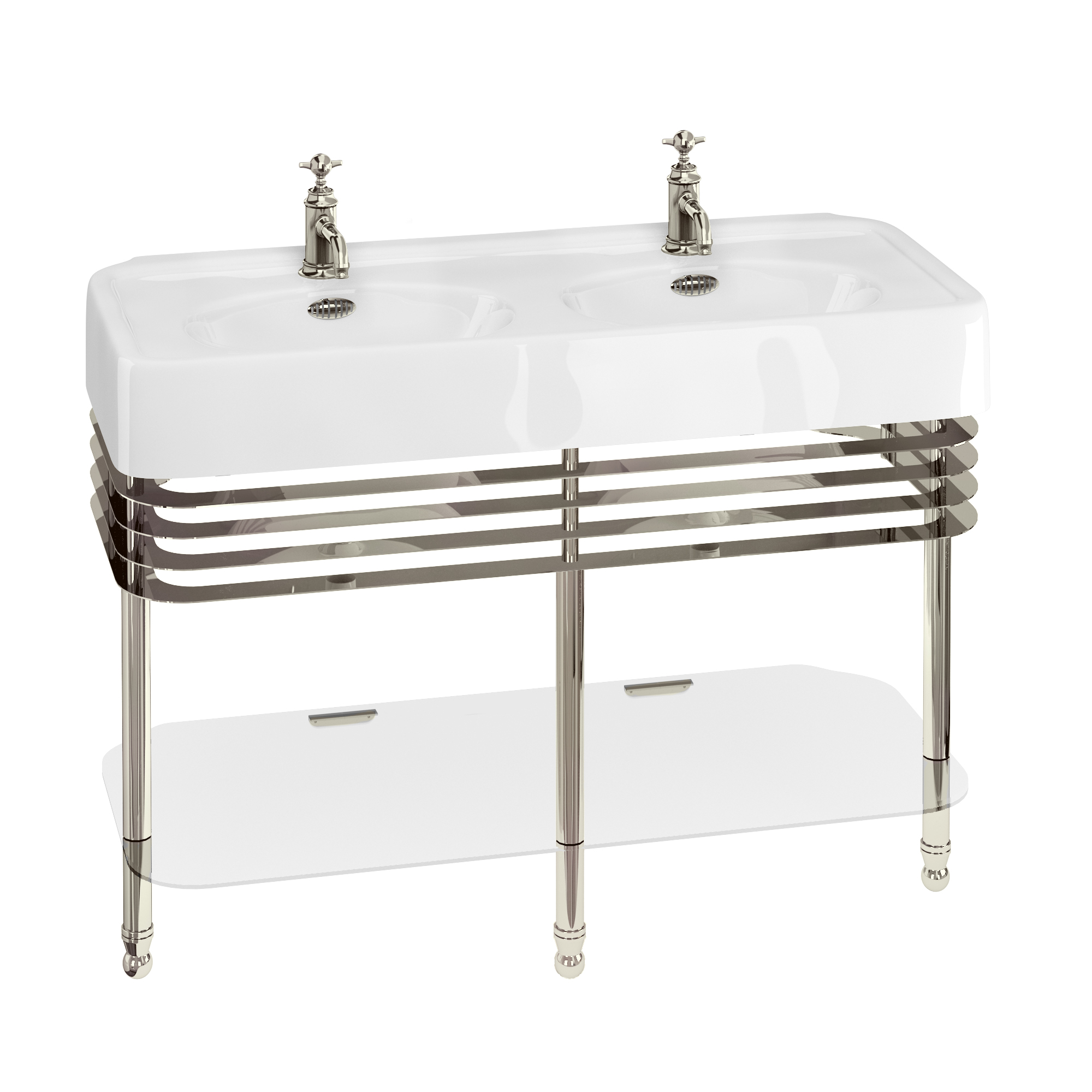

Arcade 1200mm basin with nickel overflow & basin stand with double basin & overflows nickel overflow Arcade 1200mm basin with chrome overflow & basin stand with double basin & overflows chrome overflow
tap hole options

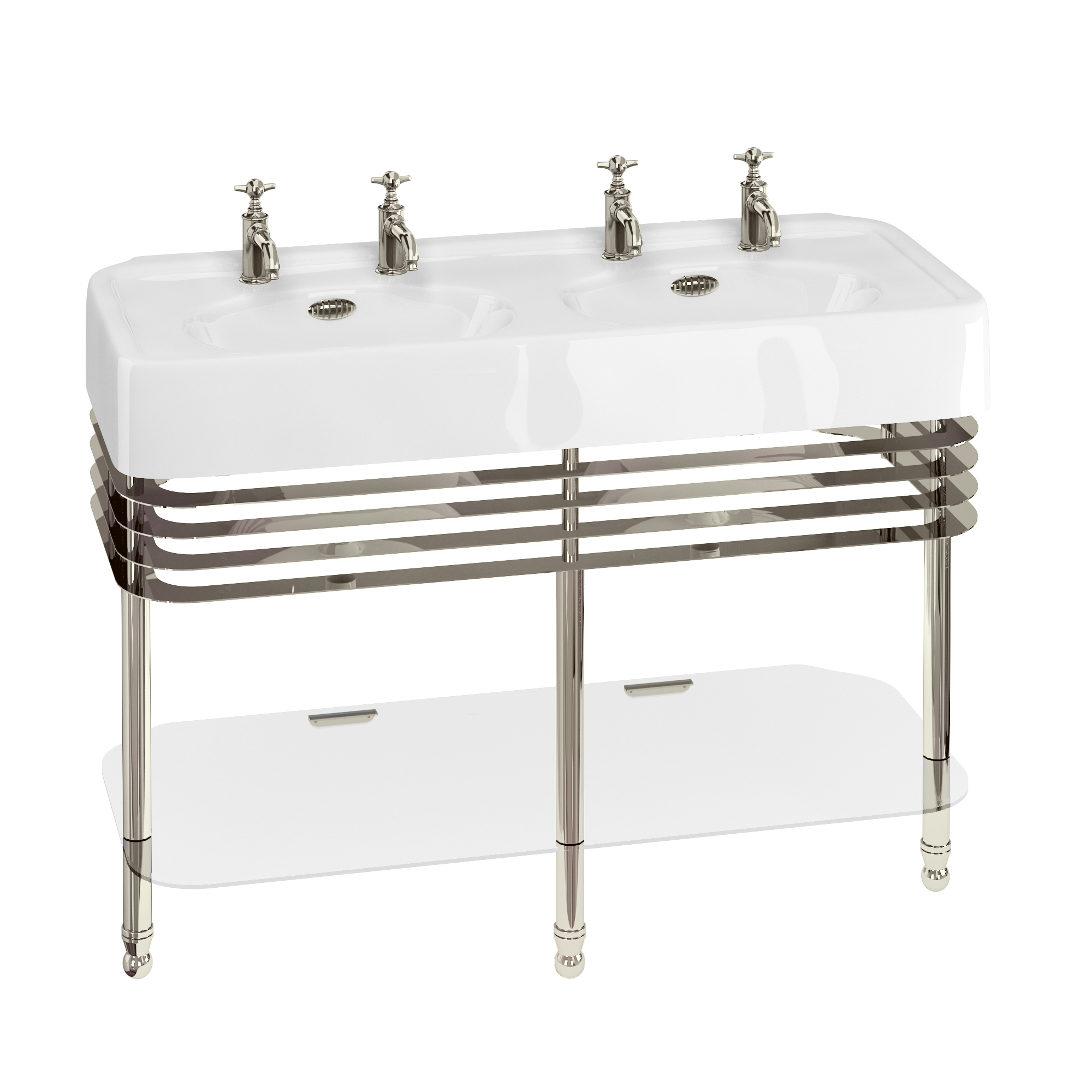

Arcade 1200mm basin with chrome overflow & basin stand with double basin & overflows no tap holes Arcade 1200mm basin with chrome overflow & basin stand with double basin & overflows 1 tap hole Arcade 1200mm basin with chrome overflow & basin stand with double basin & overflows 2 tap holes Arcade 1200mm basin with chrome overflow & basin stand with double basin & overflows 3 tap holes
Alternate Text
As Shown
ARC1200 1TH 1200mm Arcade double basin 1TH
ARC24 CHR 1200mm Arcade floor stand for double basin
A68CHR Basin overflow
Colour
ARC1200 1TH - basin - Gloss White
ARC24 CHR - floor stand - Polished Stainless Steel
A68CHR - overflow - Polished Chrome
Material
ARC1200 1TH - basin - Fine Fire Clay
ARC24 CHR - floor stand - Stainless Steel
A68CHR - overflow - ABS
Size
ARC1200 1TH - 560 x 1215 x 200mm
ARC24 CHR - 1210 x 543 x 727mm
A68CHR - 66 x 31 x 22mm
Nett Weight
ARC1200 1TH - basin - 40.9kg
ARC24 CHR - floor stand - 32kg
A68CHR - overflow - 0.006kg
Gross Weight Including Packaging
ARC1200 1TH - basin - 45.5kg
ARC24 CHR - floor stand - 34kg
A68CHR - overflow - 0.01kg
Packed Dimension
ARC1200 1TH - 1235 x 225 x 275 = 0.0764 m3
ARC24 CHR - 1240 x 585 x 225 = 0.1632 m3
A68CHR - 85 x 45 x 35 = 0.0001 m3
Tap Hole Options
Available with no(NT), one(1TH), two(2TH) or three(3TH) tap holes.
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN 14688:2006
BS EN 31:2011
Chrome plated to BS EN248:2009
Sanitary tapware. General specification for electro deposited coatings of Ni
Additional Information
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap.
Compatible Products
W14 -    Traditional basin bottle trap
W18 NKL -    Flip top basin waste (for basins with overflow )
W4 NKL -    Traditional bottle trap with extended wall tube
W18 -    Flip-top basin waste slotted
A68CHR arcade overflow of basin - chrome
ARCSP8 arcade overflow ring - nickel
SP968 small adjustable supports for the basin stands
Downloads
  • Instructions - PDF - ARC24 CHR (English)
  • Instructions - PDF - A68CHR (English)
  • Instructions - PDF - ARC24 CHR (French)
  • 3D DWG - File - DWG  -  ARC1200 1TH ARC24 (80062.dwg)
  • 3D DXF - File - DXF  -  ARC1200 1TH ARC24 (80062.dxf)
  • 3D IGS - File - IGS  -  ARC1200 1TH ARC24 (80062.igs)
  • 3D RFA BIMM Objects - File - RFA  -  ARC1200 1TH ARC24 (80062.rfa)
  • Product image 1 - jpg

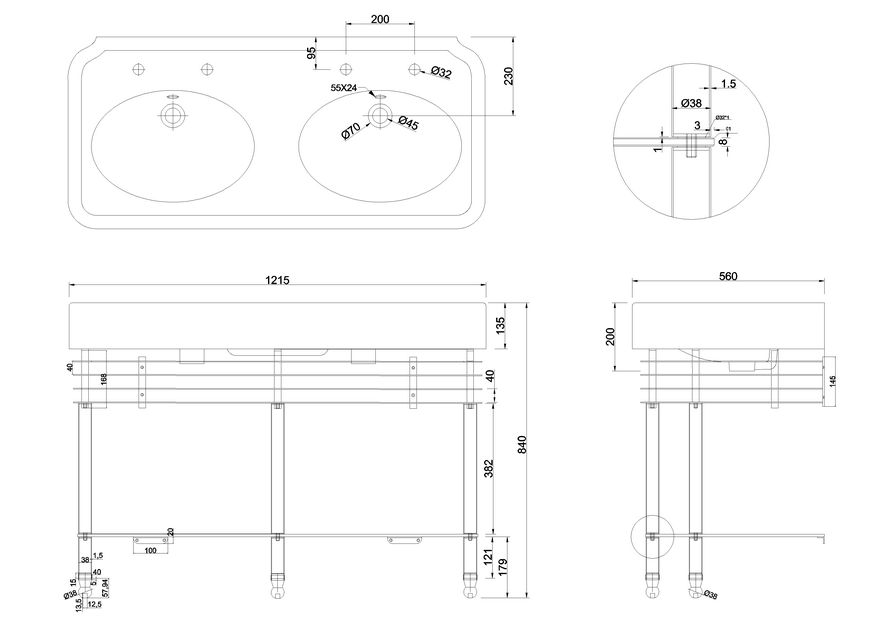

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
