Parshley Bicycle with 600mm basin
Product Options
overflow finish options
|
nickel overflow
|
As Shown
| ARC600 3TH 600mm Arcade basin 3TH |
| ARC 2015 NKL Arcade three hole basin mixer taps - deck mounted without pop up waste - nickel |
| Bicy1 Pashley bicycle |
Colour
| ARC600 3TH - basin - Gloss White |
| ARC 2015 NKL - tap - Polished Nickel |
| Bicy1 - pashley bicycle - |
Gross Weight Including Packaging
| ARC600 3TH - basin - 22.55kg |
| ARC 2015 NKL - tap - 2.86kg |
Packed Dimension
| ARC600 3TH - 615 x 225 x 545 = 0.0754 m3 |
| ARC 2015 NKL - 345 x 250 x 105 = 0.0091 m3 |
Tap Hole Options
| 0, 1, 2 or 3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2006 |
|
BS EN 31:2011 |
Additional Information
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W18 NKL - Flip top basin waste (for basins with overflow ) |
| W4 NKL - Traditional bottle trap with extended wall tube |
| A68CHR | arcade overflow of basin - chrome |
| ARCSP8 | arcade overflow ring - nickel |
| SP1620 | cold cartridge for ARC 2014, ARC 2015, ARC 2016, ARC 2017, ARC 2036 |
| ARCSP182 | flow straightener for Arcade Basin taps |
| SP1619 | hot cartridge for ARC 2014, ARC 2015, ARC 2016, ARC 2017, ARC 2036 |
| ARCSP139 NKL | nickel finish Crosshead handle (single piece) for Arcade basin taps (except ARC12, ARC2012 NKL) |
| SP1699NKL | nickel finish handle base set for product ARC 2015 NKL |
Downloads
-
2D CAD-File - DWG -
bicy1
(bicy1_LD.dwg)
-

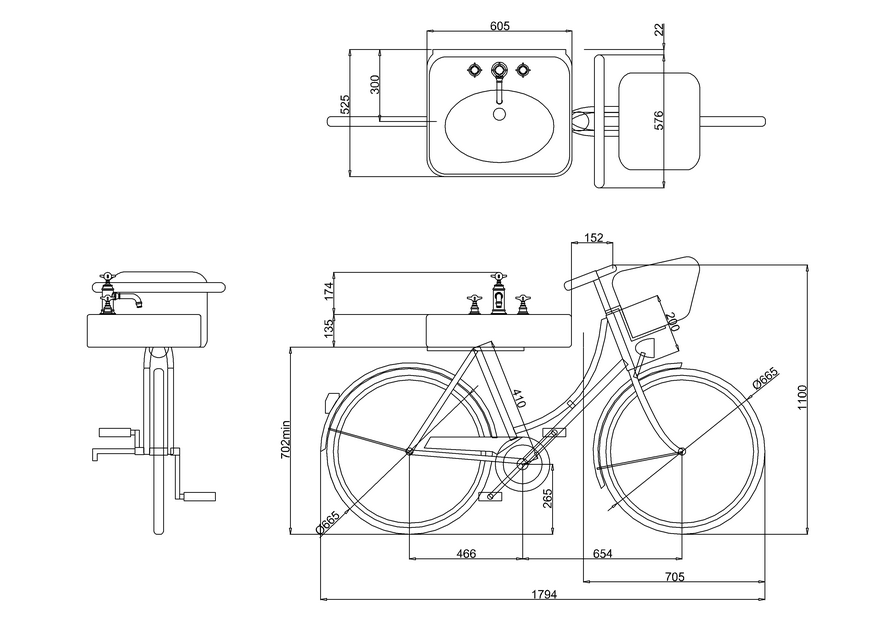

2D Drawing - PDF -
bicy1
(bicy1_LD.pdf)
2D Drawing - PDF - bicy1
-
3D DWG - File - DWG
-
bicy1
(bicy1-LD.DWG)
-
3D DXF - File - DXF
-
bicy1
(bicy1-LD.dxf)
-
3D IGS - File - IGS
-
bicy1
(bicy1-LD.igs)
-
3D RFA BIMM Objects - File - RFA
-
bicy1
(bicy1-LD.rfa)
- 3D IGS - File - IGS - ARC 2015 NKL (ARC 2015.igs)
-
Lifestyle image 1 -
tiff
jpg -
Lifestyle image 2 -
tiff
jpg -
Lifestyle image 3 -
tiff
jpg -

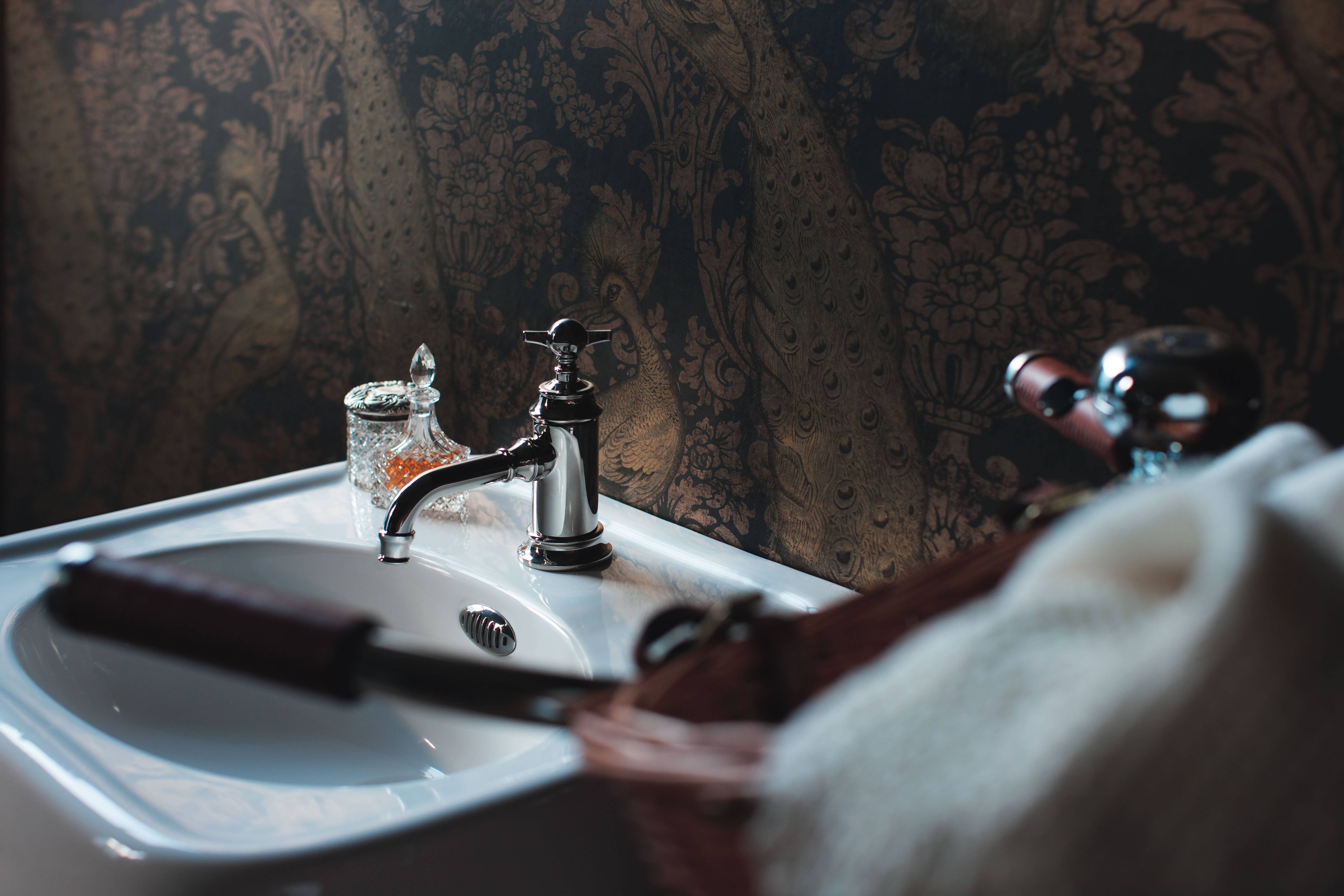

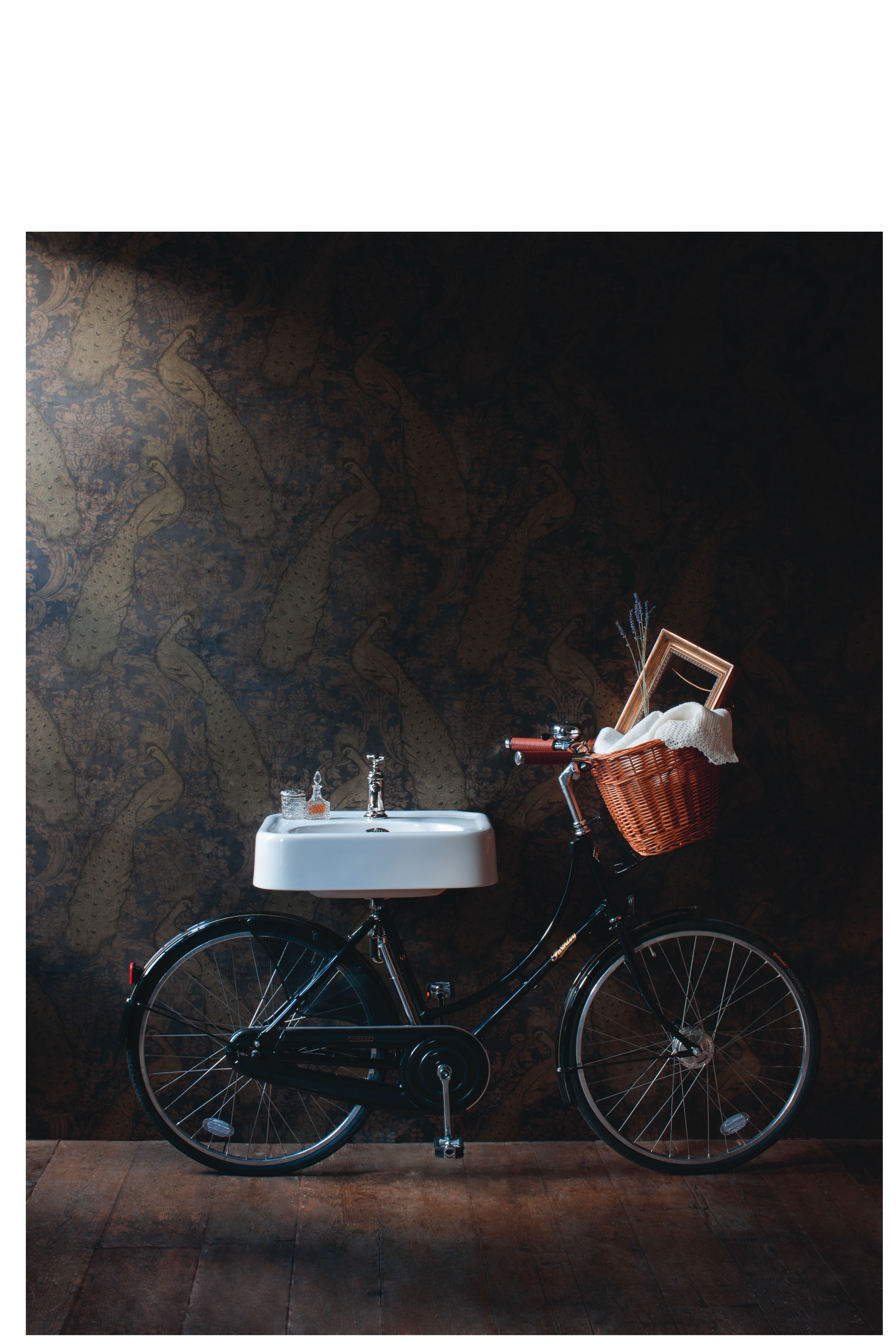

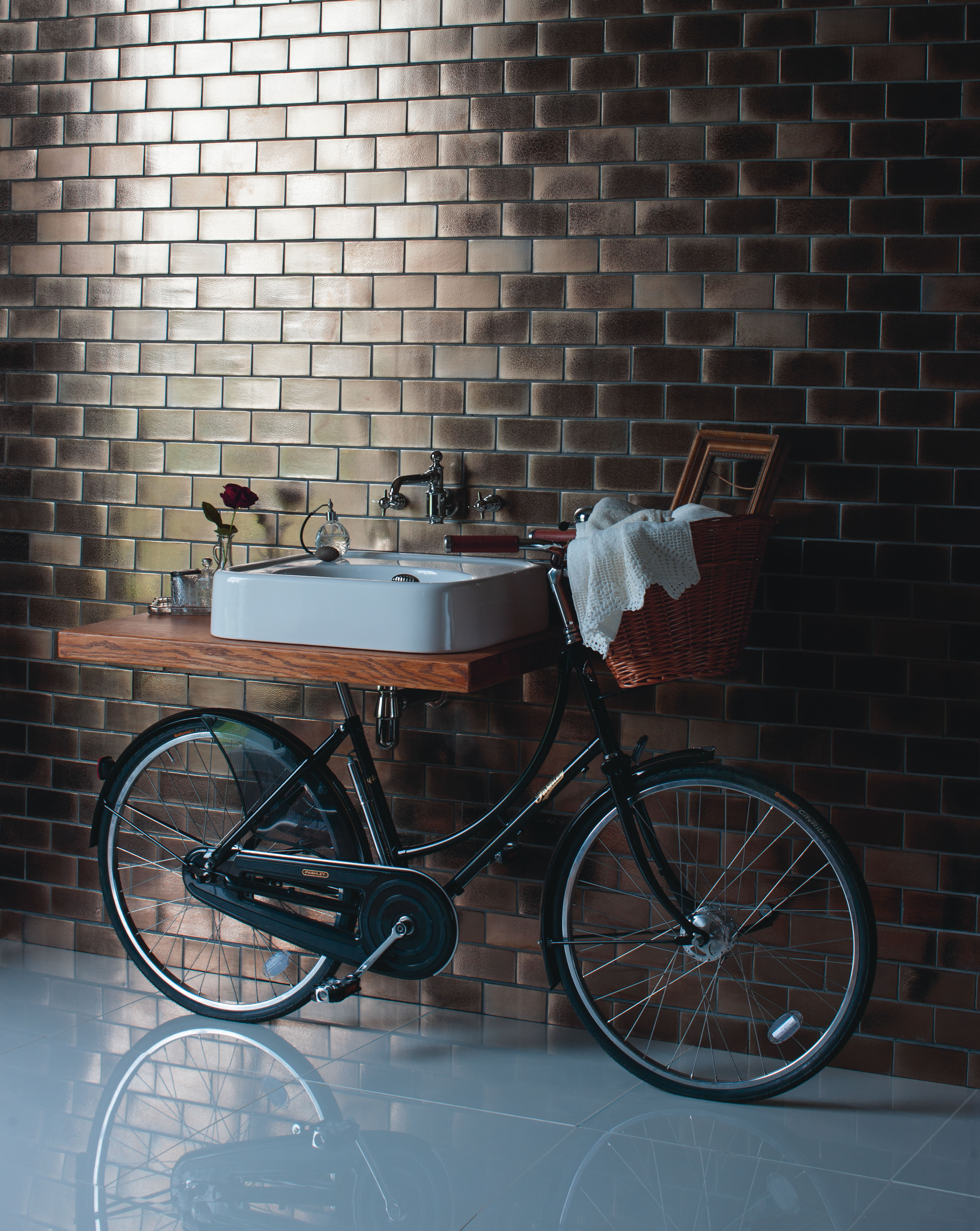

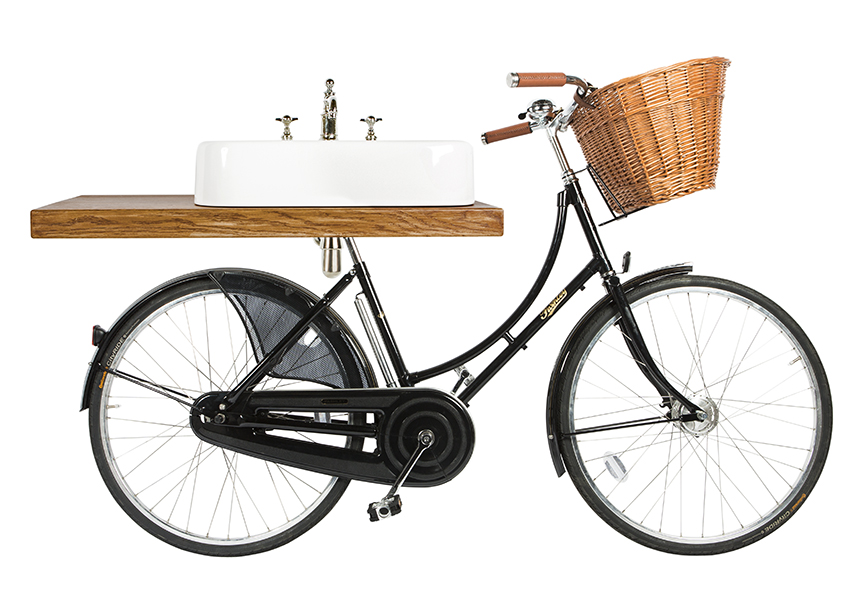

Product image 1 -
jpg
-
Product image 2 -
jpg
