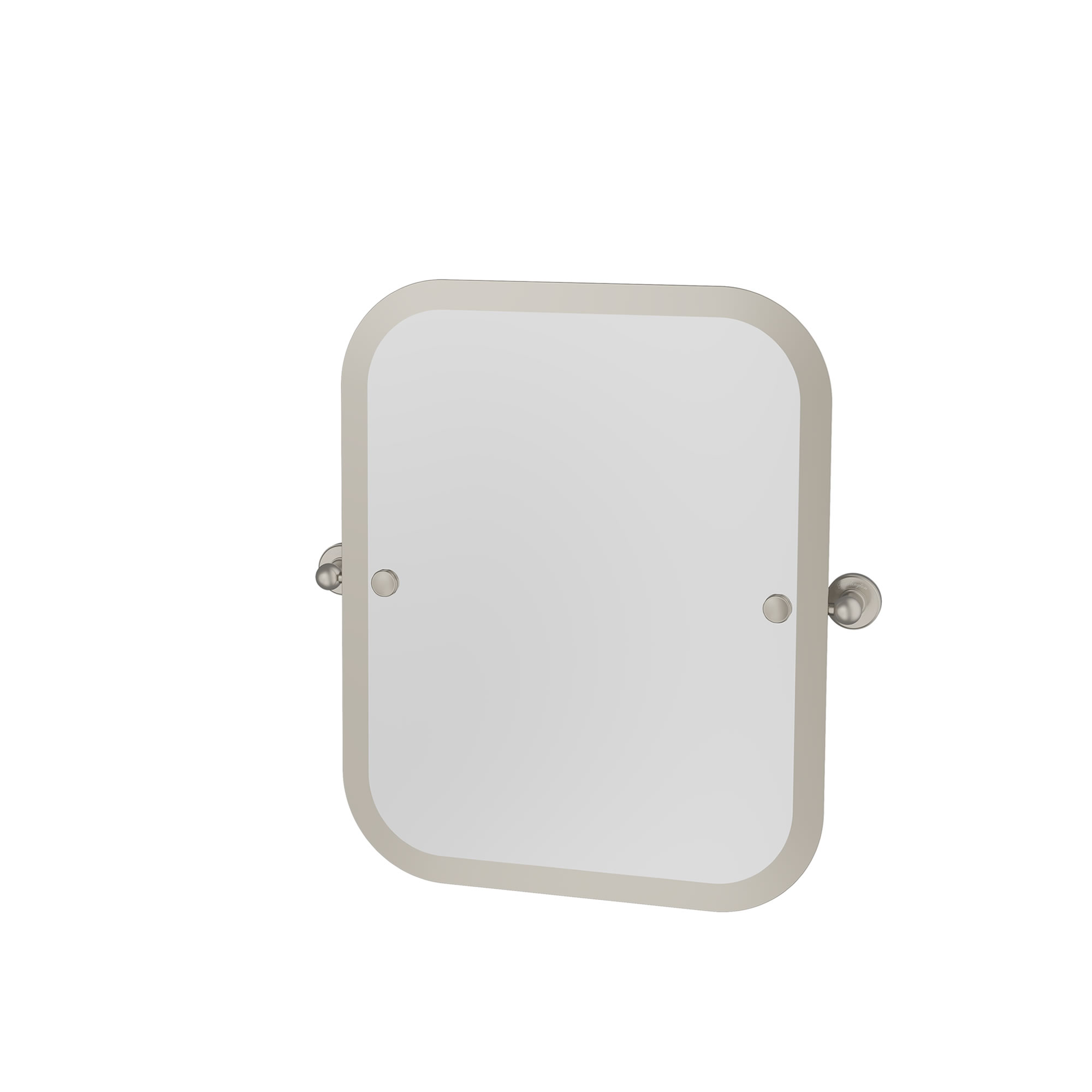

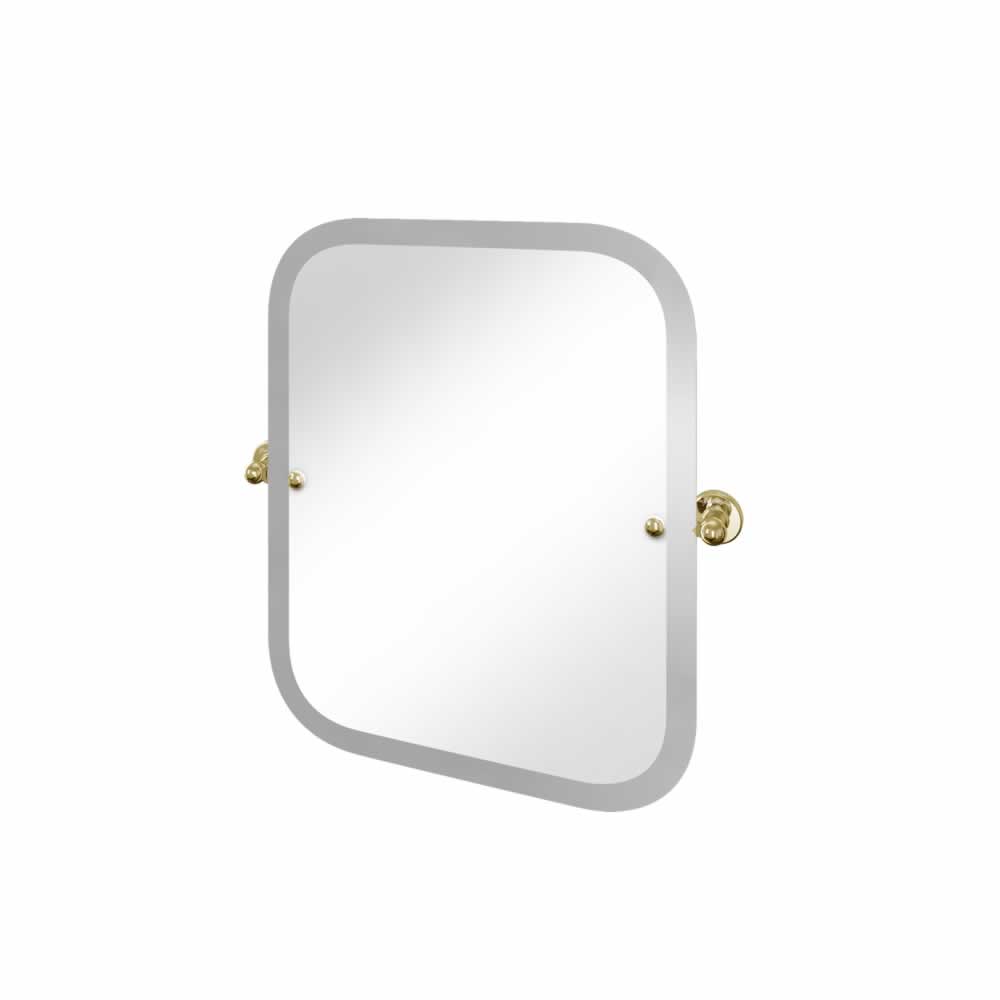

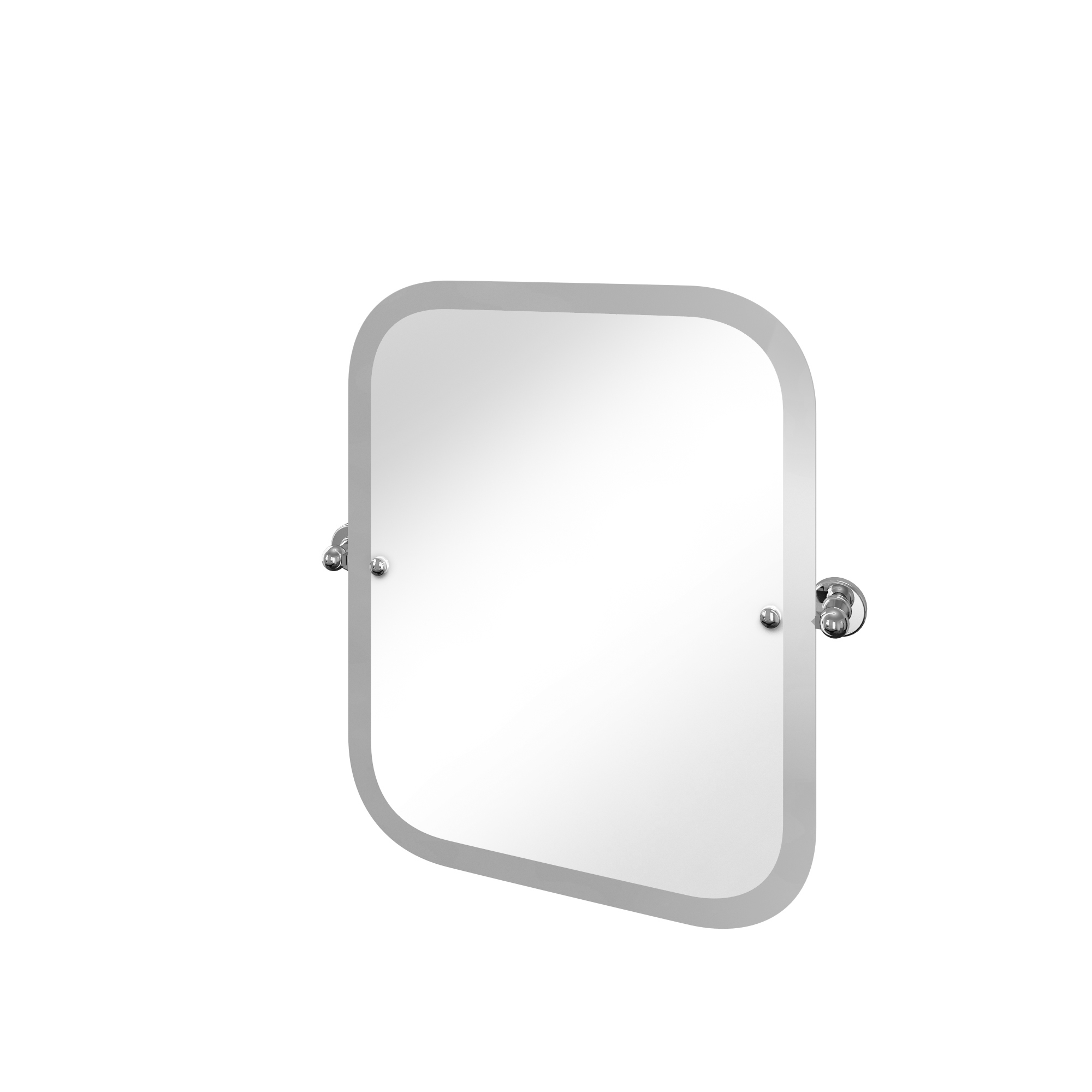

Rectangular swivel mirror with curved corners and brass wall mounts
Product Options
finish options
|
chrome
|
nickel
|
brushed nickel
|
gold
|
As Shown
| A40 CHR Rectangular swivel mirror with curved corners chrome plated brass wall mounts |
Material
| A40 CHR - mirror - Brass |
Nett Weight
| A40 CHR - mirror - 4.7kg |
Gross Weight Including Packaging
| A40 CHR - mirror - 7.18kg |
Packed Dimension
| A40 CHR - 635 x 545 x 105 = 0.0363 m3 |
Guarantee
|
5 year guarantee*
*Full terms & conditions here |
Standards Information
|
Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr |
Additional Information
|
5mm copper-free mirror with anti-shatter safety film |
| ARCSP162 | glass panel of product ARCA40 NKL, ARCA40 CHR, A40 CHR, A40 GOLD, A40 BNKL |
| ARCSP52 | screw bag for ARCA39 NKL, ARCA40 NKL, ARCA39 CHR, ARCA40 CHR, A40 CHR, A40 GOLD, A40 BNKL |
| SP1663 CHR | the wall brackets including the bar for A40 CHR |
Downloads
-
2D CAD-File - DWG -
A40 CHR
(A40.dwg)
-

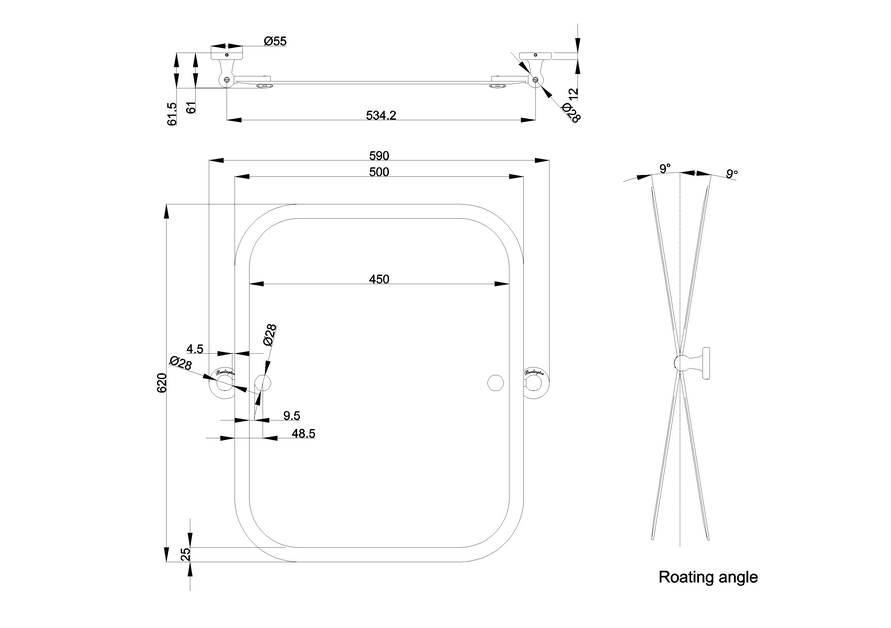

2D Drawing - PDF -
A40 CHR
(A40.pdf)
2D Drawing - PDF - A40 CHR
-
3D DWG - File - DWG
-
A40 CHR
(ARCA40 NKL.dwg)
-
3D DXF - File - DXF
-
A40 CHR
(ARCA40 NKL.dxf)
-
3D IGS - File - IGS
-
A40 CHR
(ARCA40 NKL.igs)
-
3D RFA BIMM Objects - File - RFA
-
A40 CHR
(ARCA40 NKL.rfa)
