Spout fitting

asaq2.Model.Web_product_new?.web_name

Product Options

finish options

Arcade Spout fitting - chrome

chrome

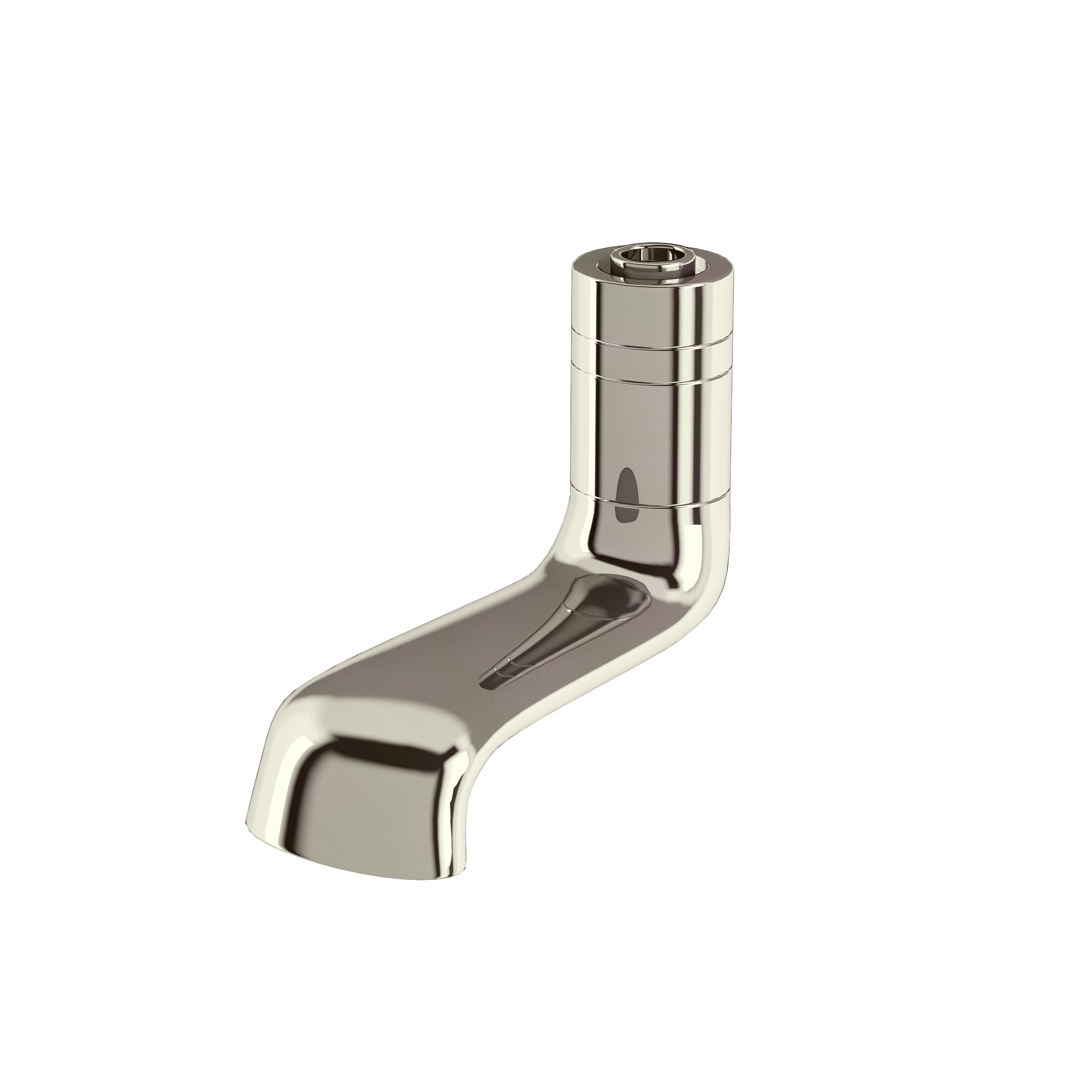

Arcade Spout fitting - nickel

nickel

Alternate Text

As Shown

V32 Spout fitting

Colour

V32 - spout fitting - Polished Chrome

Material

V32 - spout fitting - Brass

Size

V32 - 168.5 x 36 x 119.5mm

Nett Weight

V32 - spout fitting - 0.84kg

Gross Weight Including Packaging

V32 - spout fitting - 1kg

Packed Dimension

V32 - 190 x 130 x 45 = 0.0011 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

Downloads

Instructions - PDF - V32 (English)
Instructions - PDF - V32 (French)

2D CAD-File - DWG - ARCV32 CHR (V32_LD.dwg)

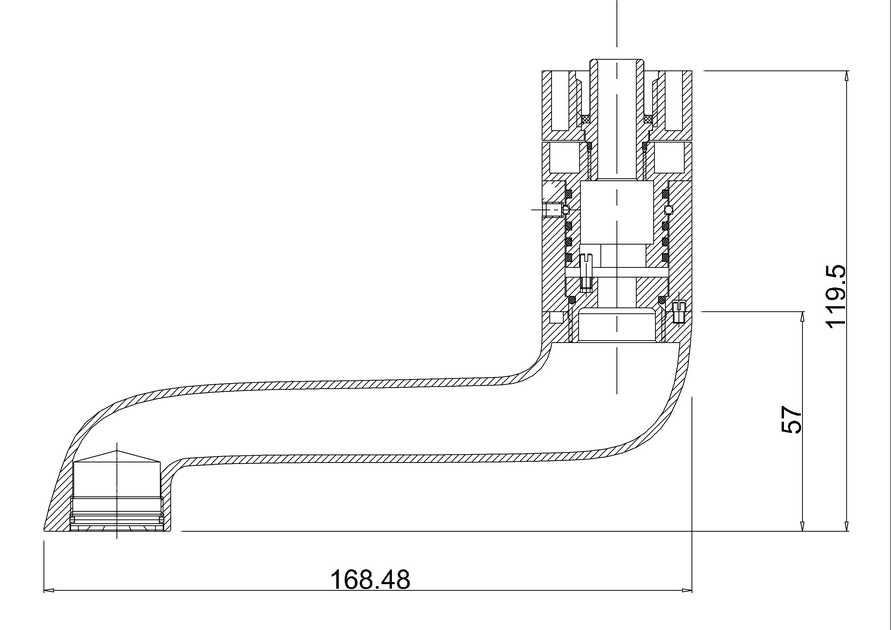

2D Drawing - PDF - ARCV32 CHR (V32_LD.pdf) 2D Drawing - PDF - ARCV32 CHR

3D DWG - File - DWG - ARCV32 CHR pending
3D DXF - File - DXF - ARCV32 CHR pending
3D IGS - File - IGS - ARCV32 CHR pending

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
