Welcome to the Bathroom Brands Technical Whitebook

Palermo Grande

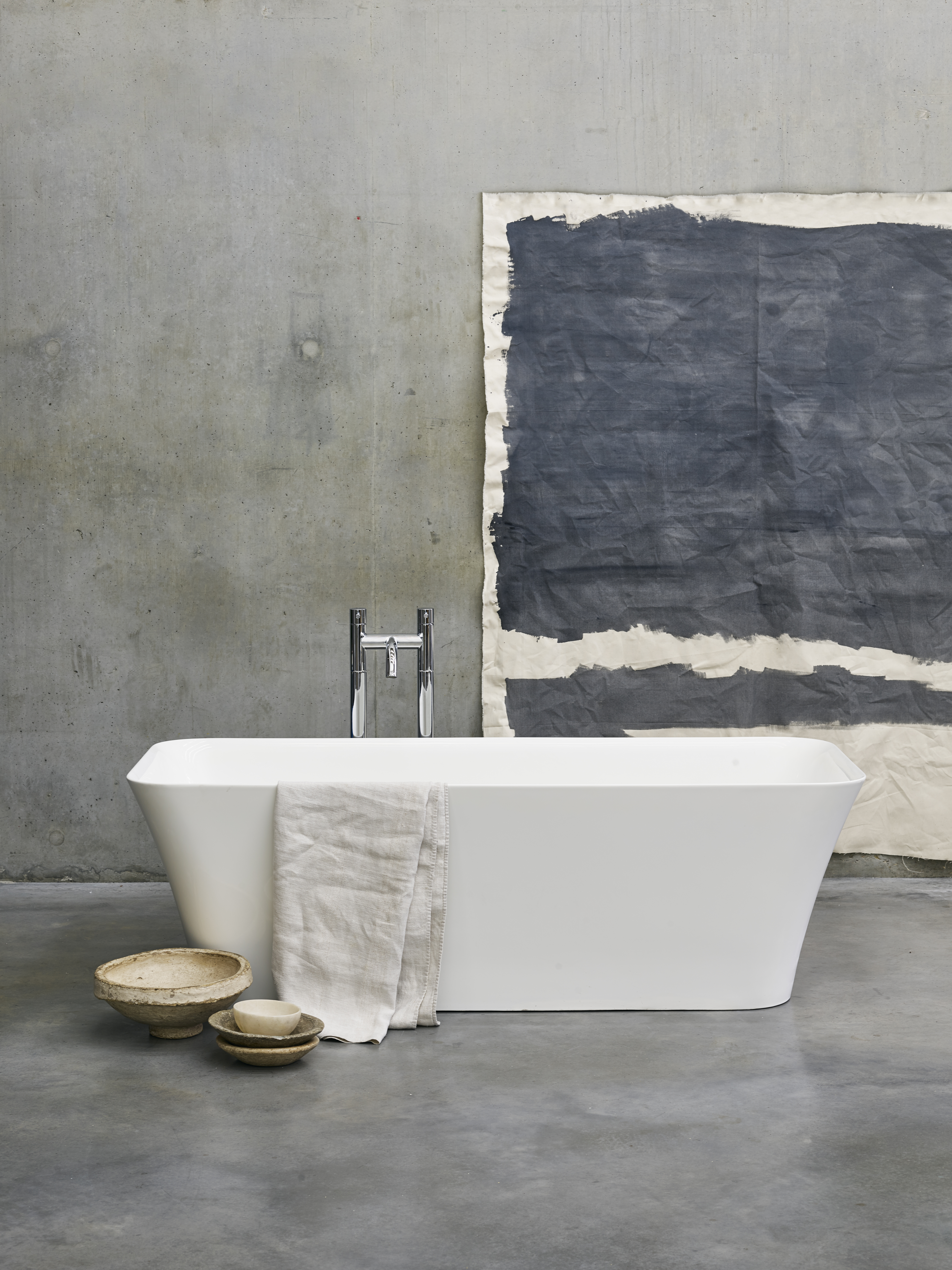

As Shown
N5CCS Palermo Grande
Gross Weight Including Packaging
N5CCS - bath - 139kg
Tap Hole Options
10 year guarantee*
*Full terms & conditions here
Standards Information
N5CCS  -  WRAS Not Applicable
BS EN 14516:2015+A1:2018
Additional Information
Supplied with a template to define the overflow hole on the bath.
No overflow
When using underfloor heating please take care not to put the heating pipes/matt underneath the bath area. The bath should not sit on a heated floor.
Not suitable for rim-mounted taps
Compatible Products
CW3 -    P-trap
CW2 -    Click-clack bath waste unslotted with chrome cover
CW11 -    Special bath waste for baths without a pre-drilled overflow hole (with un-slotted click-clack waste)
CW2NCS -    Click Clack bath waste (unslotted) with white ClearStone cover - for use without internal overflow bath
