Florenza
As Shown
| N23CS Florenza |
Colour
| N23CS - bath - Gloss White |
Material
| N23CS - bath - Clearstone |
Nett Weight
| N23CS - bath - 104kg |
Gross Weight Including Packaging
| N23CS - bath - 137kg |
Packed Dimension
| N23CS - 1960 x 960 x 710 = 1.3359 m3 |
Bath water capacity
| 230 litres displaced water capacity |
Tap Hole Options
| 0 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Supplied with a template to define the overflow holes on the bath. |
|
No overflow |
|
When using underfloor heating please take care not to put the heating pipes/matt underneath the bath area. The bath should not sit on a heated floor. |
|
Not suitable for rim-mounted taps |
Compatible Products
| CW3 - P-trap |
| CW2 - Click-clack bath waste unslotted with chrome cover |
| CW2NCS - Click Clack bath waste (unslotted) with white ClearStone cover - for use without internal overflow bath |
| SP1294 | grey bag for Clearstone baths |
| SP1379 | replacement packaging of N23CS(including label) |
Downloads
- 2D CAD-File - DWG - N23CS (N23CS_LD.dwg)
-

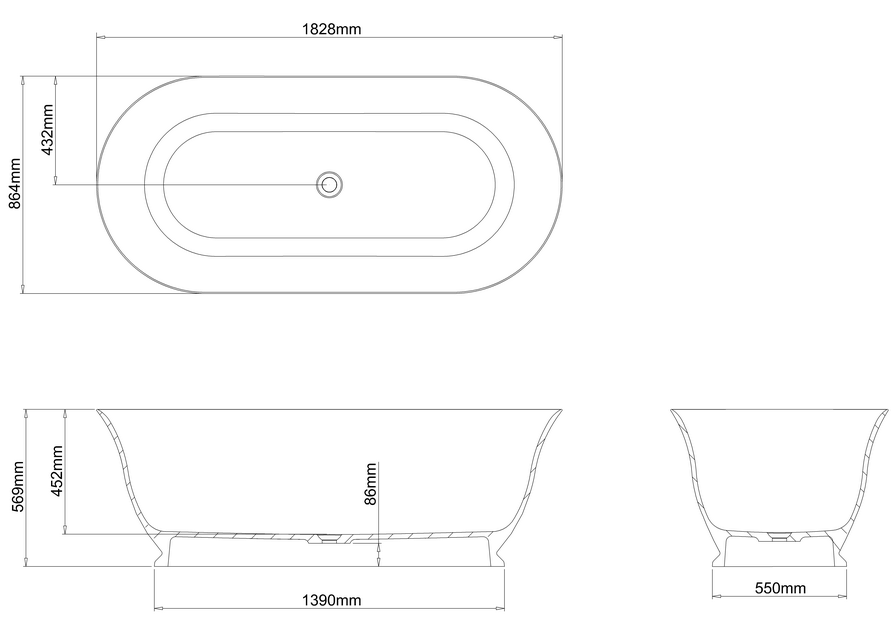

2D Drawing - PDF -
N23CS
(N23CS_LD.pdf)
2D Drawing - PDF - N23CS
-
3D DWG - File - DWG
-
N23CS
(N23CS FLO-1828 20160714.dwg)
-
3D DXF - File - DXF
-
N23CS
(N23CS FLO-1828 20160714.dxf)
-
3D IGS - File - IGS
-
N23CS
(N23CS FLO-1828 20160714.igs)
-
3D RFA BIMM Objects - File - RFA
-
N23CS
(N23CS FLO-1828 20160714.rfa)
