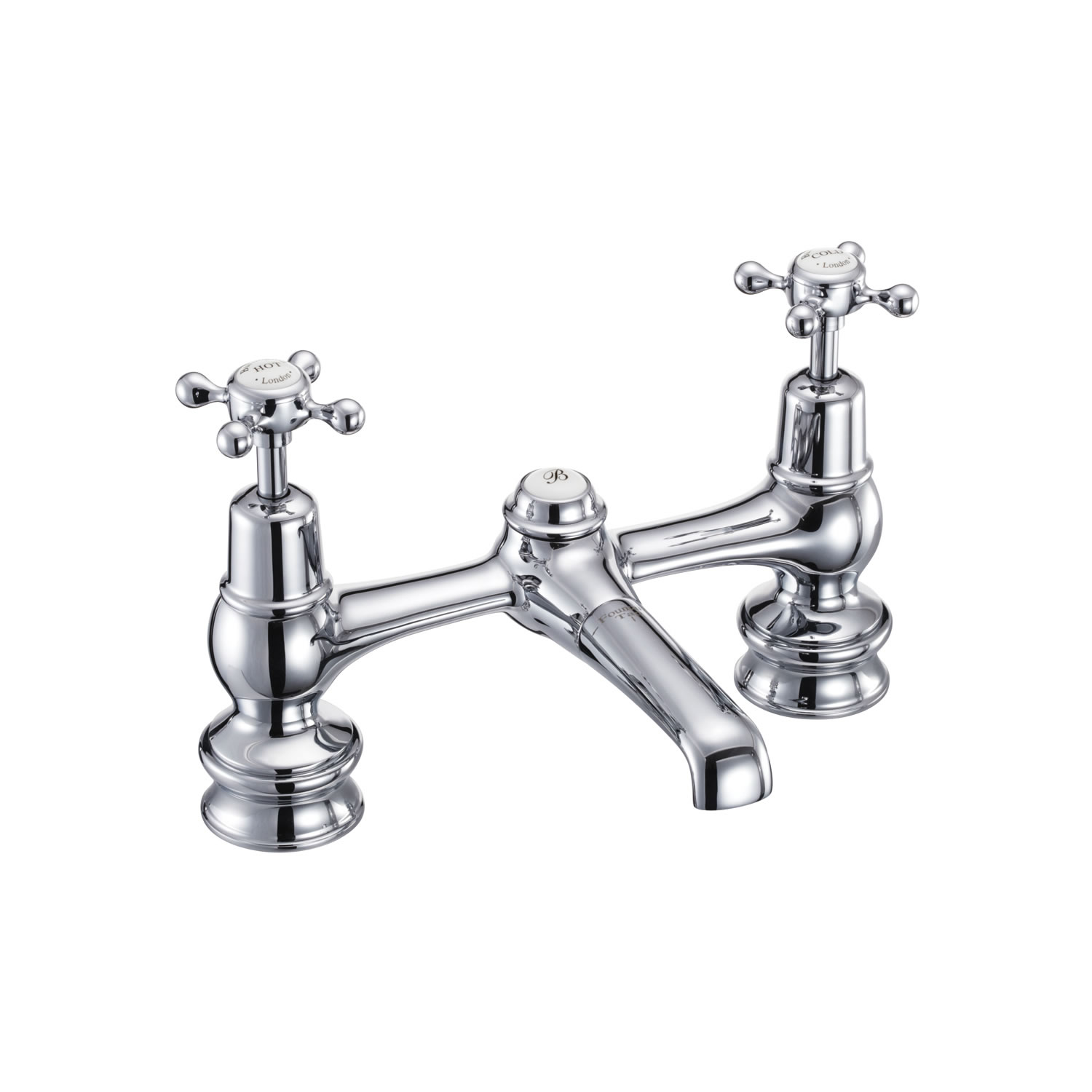

Burlington bridge basin mixer with low central indice & plug and chain waste with swivel spout

Product Options

Tap Head Options (Chrome Finish Shown)

Claremont

Anglesey

Birkenhead

Kensington

Quarter turn options

quarter turn

Claremont 2 tap hole bridge basin mixer with low central indice with plug and chain waste with swivel spout

tradional screw-down

Tap Base options

Standard base

Claremont Regent 2 tap hole bridge basin mixer with low central indice with plug and chain waste with swivel spout

Regent base

As Shown

T16_QT Quarter turn bridge basin mixer with plug & chain

T1 Claremont tap handles

CL10-QT - Combined product code

Colour

T16_QT - tap - Polished Chrome

T1 - tap handle - Polished Chrome

Material

T16_QT - tap - Brass

T1 - tap handle - Brass

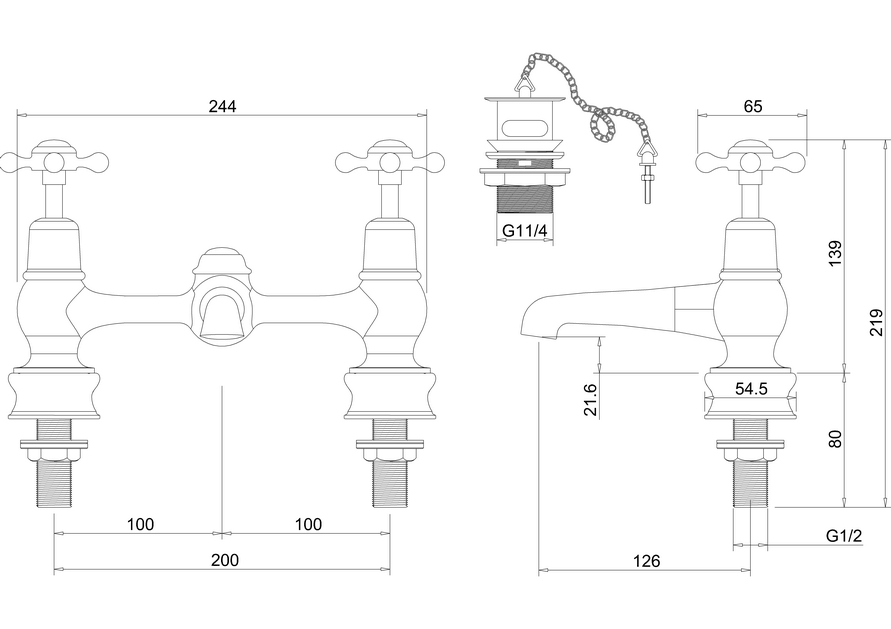

Size

T16_QT - 150 x 244 x 139mm

T1 - 65 x 65 x 28mm

Nett Weight

T16_QT - tap - 1.97kg

T1 - tap handle - 0.15kg

Gross Weight Including Packaging

T16_QT - tap - 2.69kg

T1 - tap handle - 0.17kg

Packed Dimension

T16_QT - 250 x 210 x 160 = 0.0084 m3

T1 - 60 x 60 x 62 = 0.0002 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

BS 5412:1996

BS EN 200:2008

Additional Information

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	10.1	16.9	18.1	20.5	23.7	n/a	n/a
Spout (aerator)	1.8	2.7	3	3.6	3.6	n/a	n/a

Spare parts

SP882	aerator for product T16, T16-QT
SP1189	black fixing nut for all finishes products of T13, T13-QT, T16, T16-QT, W11, W22, W18, W1
SP1235	chain for T13, T13-QT, T16, T16-QT, W1
SP523	chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP931	decorative cap of Burlington tap handles - cold
SP930	decorative cap of Burlington tap handles - hot
SP93	fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449	flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP91	G1, 2 fixing nut and washer for all finishes products of T5, T5-QT, T5-QT GOLD, T5-QT NKL, T6, T6-QT, T16, T16-QT, STA12-QT
SP451	key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP884	plug (including the chain, stud and nut) of product W1, T16, T16-QT
SP45	T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP72	T5, T6, T16 1, 2 and T7 3, 4 quarter turn COLD cartridge
SP71	T5, T6, T16 1, 2 and T7 3, 4 quarter turn HOT cartridge
SP99	the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP1103	the grate for the W1, T16, T16-QT, T13, T13-QT
SP1093	thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
SP985	top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
