Nebbia natural stone bath
As Shown
| N14 Nebbia bath |
Colour
| N14 - bath - Gloss White |
Material
| N14 - bath - Natural Stone |
Nett Weight
| N14 - bath - 115kg |
Gross Weight Including Packaging
| N14 - bath - 130kg |
Packed Dimension
| N14 - 1610 x 810 x 850 = 1.1085 m3 |
Bath water capacity
| 230 litres displaced water capacity |
Tap Hole Options
| 0 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Average thickness throughout the bath is 10mm |
|
Integrated overflow |
|
When using underfloor heating please take care not to put the heating pipes/matt underneath the bath area. The bath should not sit on a heated floor. |
|
Not suitable for rim-mounted taps |
Compatible Products
| CW1 - Click-clack bath waste slotted with chrome cover |
| CW3 - P-trap |
| CW1N - Click Clack bath waste slotted with white Natural Stone cover |
| SP386 | bath waste with natural stone cover for N14 Nebbia bath |
| SP1707 | box of N14 bath |
| SP963 | grey handling bag of natural stone baths |
| SP497 | repair kit for Natural stone products |
Downloads
-
2D CAD-File - DWG -
N14
(N14 drawing-WB.DWG)
-

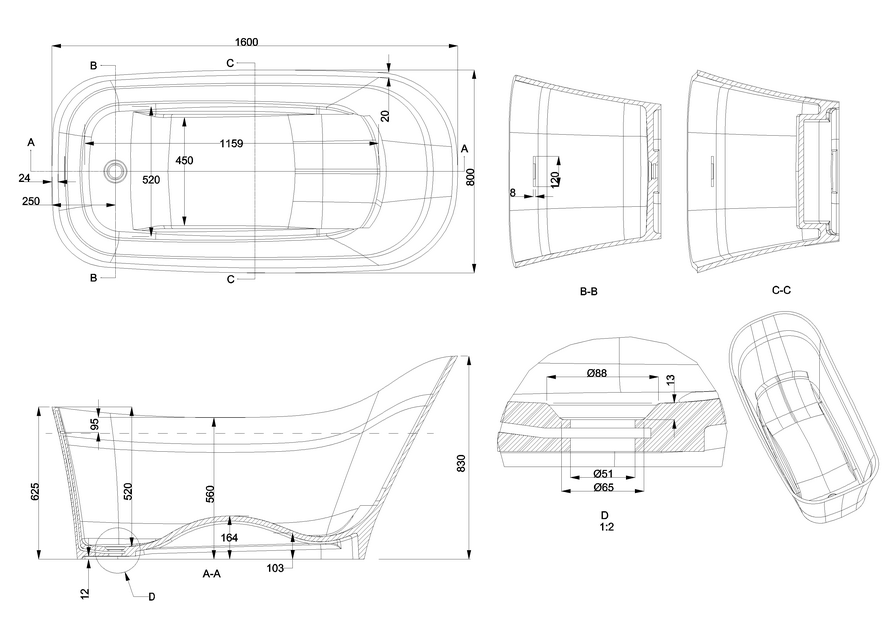

2D Drawing - PDF -
N14
(N14 drawing-WB.pdf)
2D Drawing - PDF - N14
-
3D DWG - File - DWG
-
N14
(AJB-D-571-F_1_1.dwg)
-
3D DXF - File - DXF
-
N14
(AJB-D-571-F_1_1.dxf)
-
3D IGS - File - IGS
-
N14
(AJB-D-571-F_1_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
N14
(AJB-D-571-F_1_1.rfa)
-
