Lonio classical bath
As Shown
| N19 Lonio bath |
Colour
| N19 - bath - Gloss White |
Material
| N19 - bath - Natural Stone |
Nett Weight
| N19 - bath - 125kg |
Gross Weight Including Packaging
| N19 - bath - 135kg |
Packed Dimension
| N19 - 1800 x 880 x 795 = 1.2593 m3 |
Bath water capacity
| 239 litres displaced water capacity |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14516:2006 |
Additional Information
|
When using underfloor heating please take care not to put the heating pipes/matt underneath the bath area. The bath should not sit on a heated floor. |
|
No overflow |
|
Not suitable for rim-mounted taps |
Compatible Products
| CW3 - P-trap |
| CW2 - Click-clack bath waste unslotted with chrome cover |
| CW2N - Click-clack bath waste unslotted with white Natural Stone cover |
| SP963 | grey handling bag of natural stone baths |
| SP497 | repair kit for Natural stone products |
Downloads
-
2D CAD-File - DWG -
N19
(N19_LD.dwg)
-

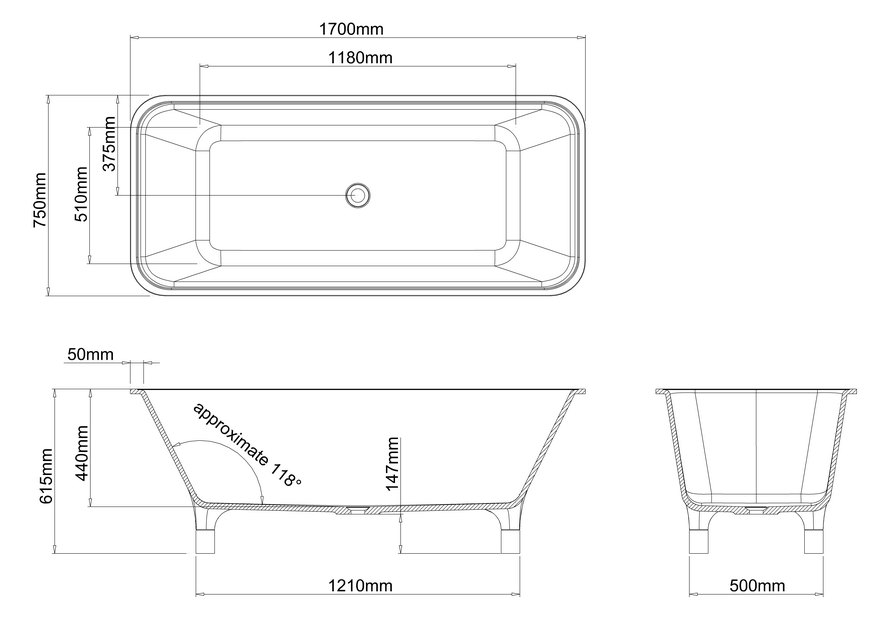

2D Drawing - PDF -
N19
(N19_LD.pdf)
2D Drawing - PDF - N19
-
3D DWG - File - DWG
-
N19
(SLG1700 2-layers_1.dwg)
-
3D DXF - File - DXF
-
N19
(SLG1700 2-layers_1.dxf)
-
3D IGS - File - IGS
-
N19
(SLG1700 2-layers_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
N19
(SLG1700 2-layers_1.rfa)
-

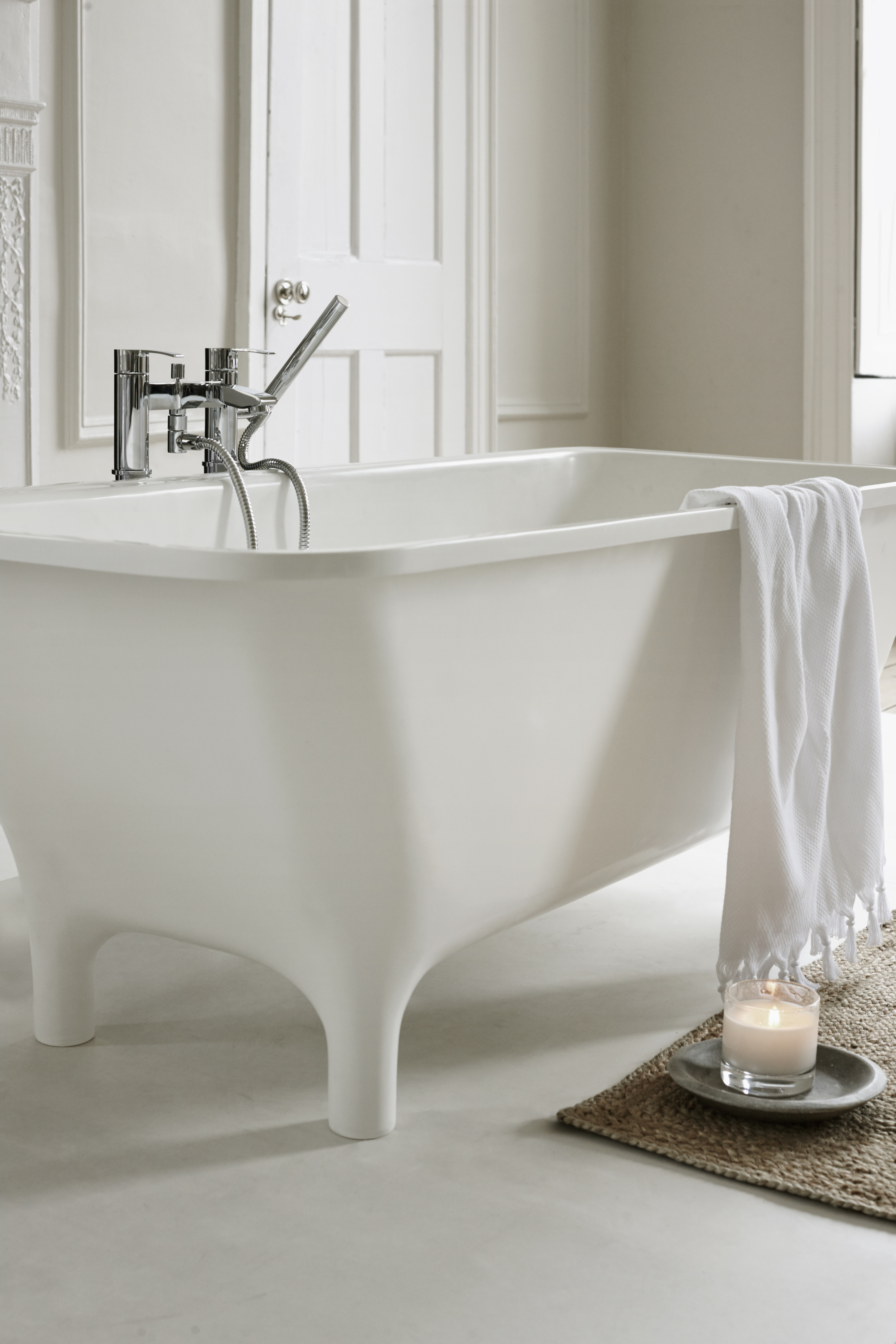

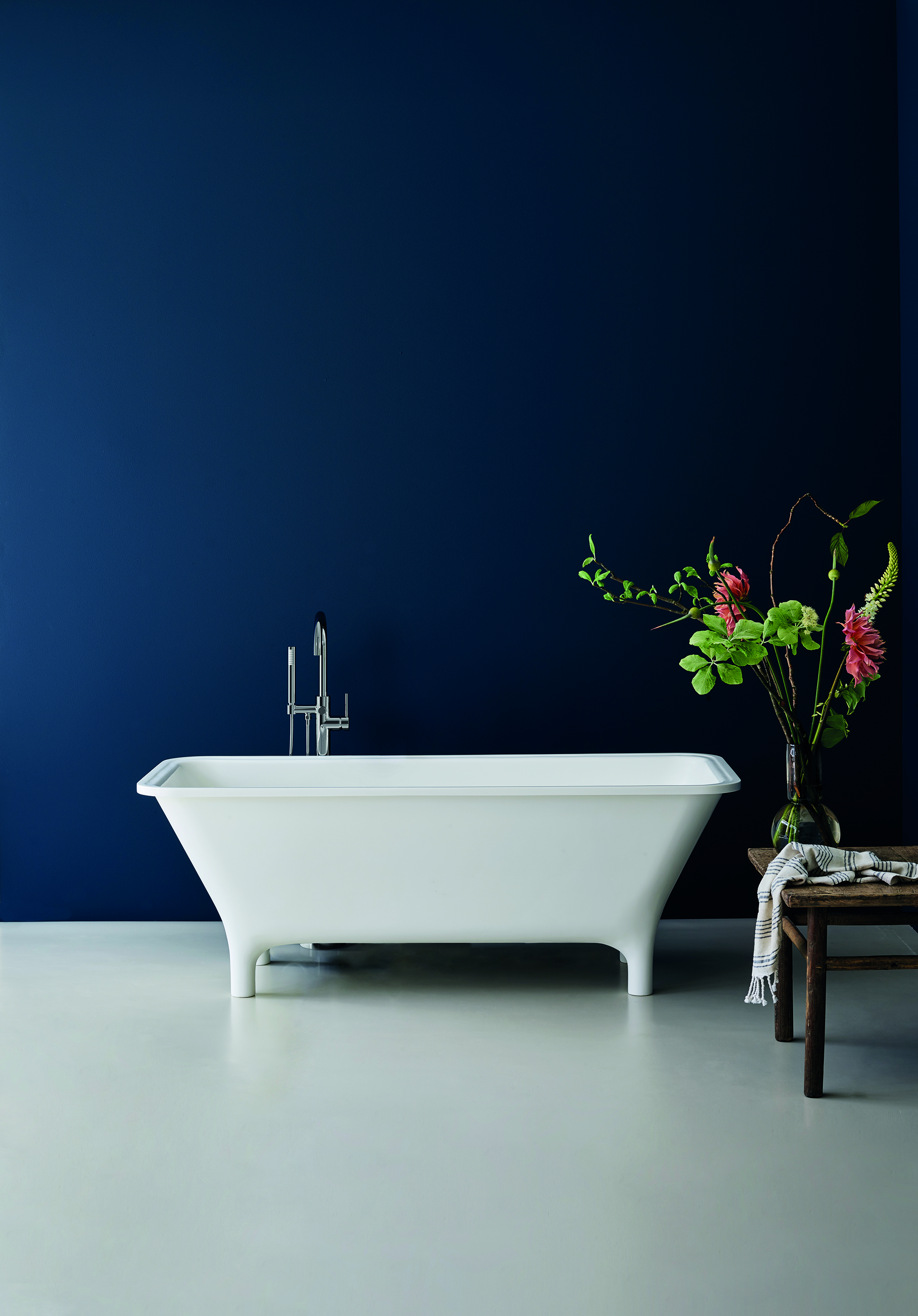

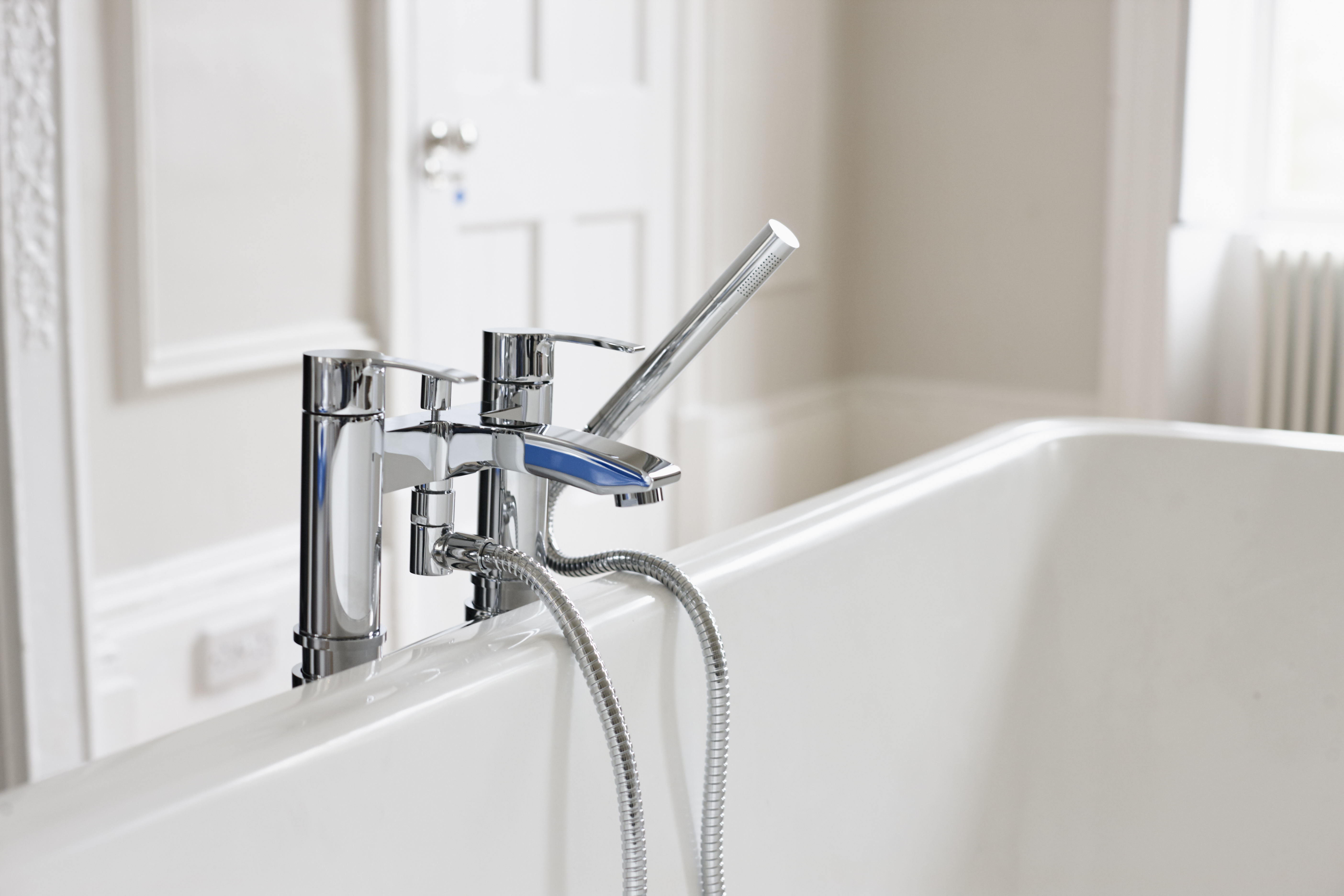

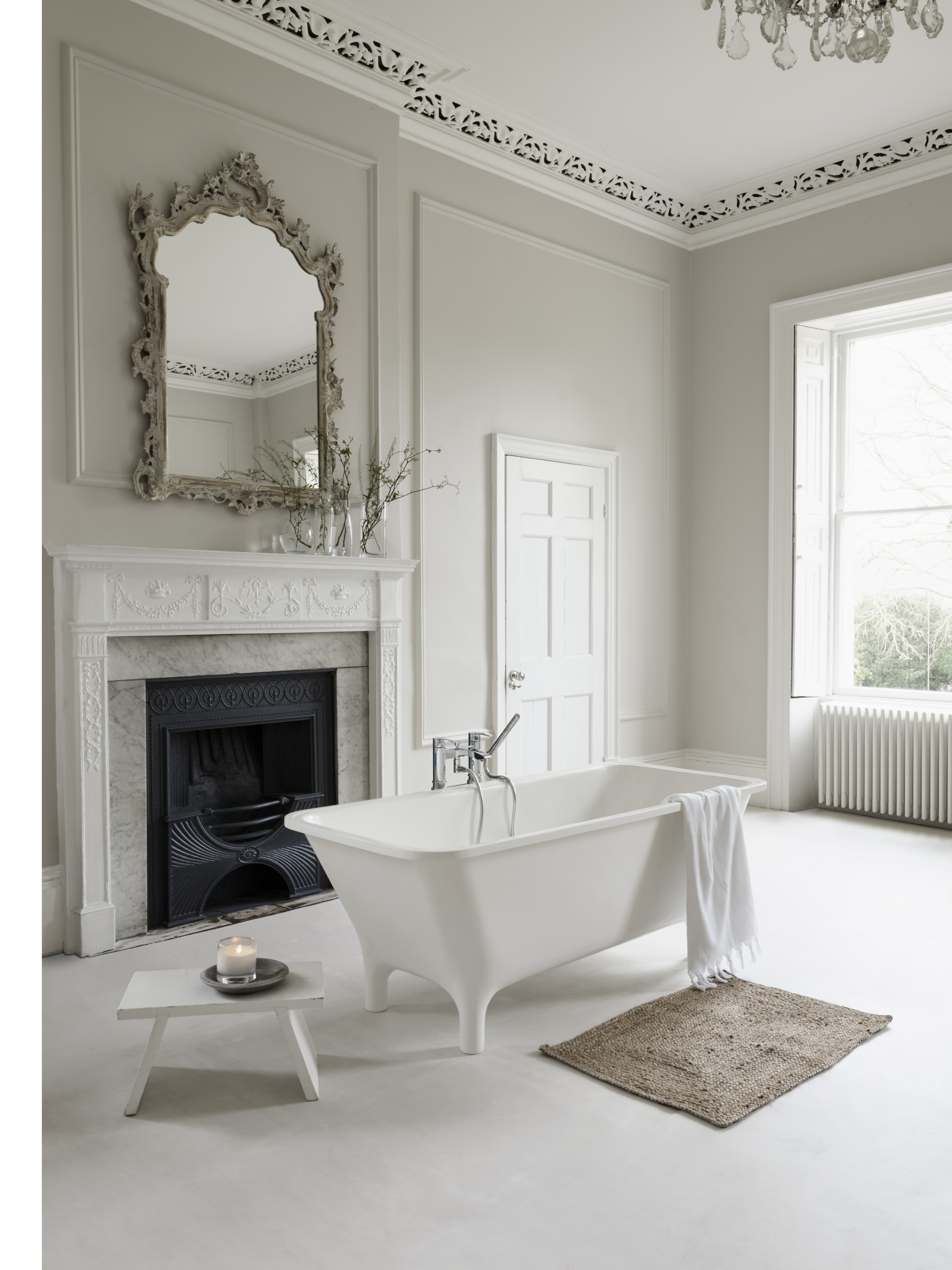

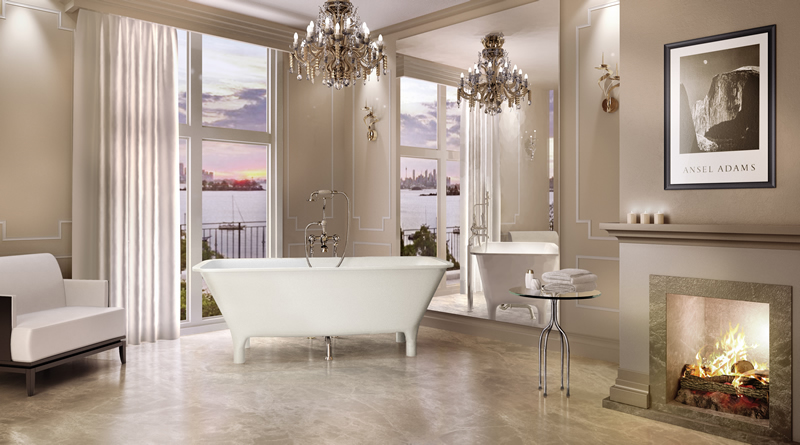

Lifestyle image 1 -
jpg -
Lifestyle image 2 -
jpg -
Lifestyle image 3 -
jpg -
Lifestyle image 4 -
jpg -
Lifestyle image 5 -
jpg -

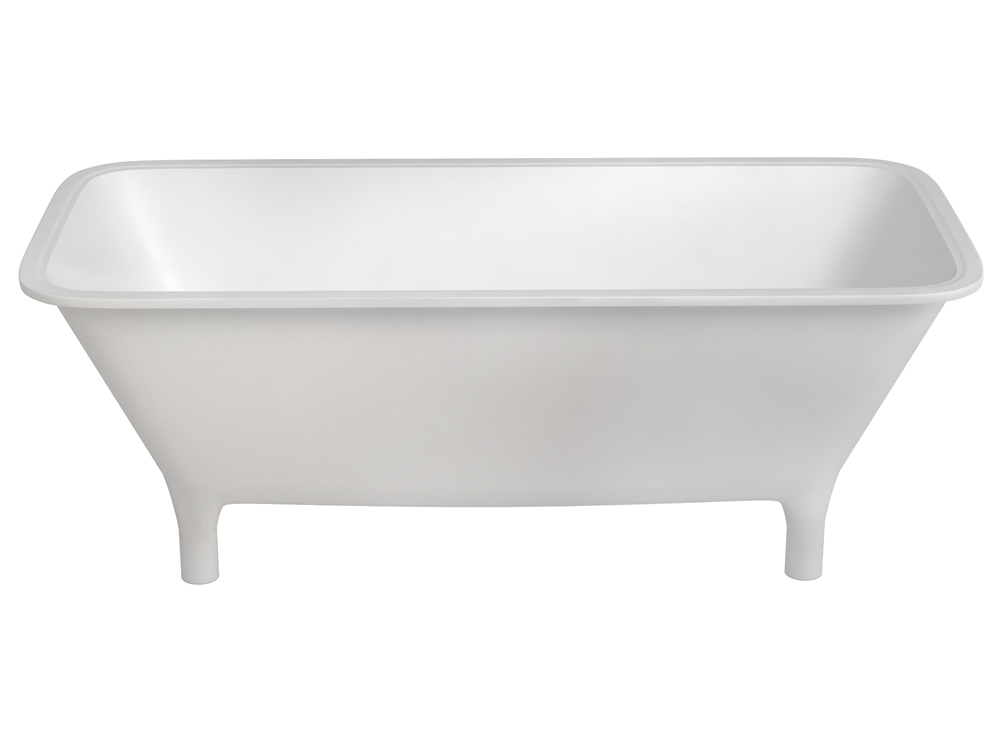

Product image 1 -
