Medium roll top basin wit overflow

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

B8E Roll top basin with overflow

Colour

B8E - basin - Gloss White

Material

B8E - basin - Natural Stone

Size

B8E - 650 x 470 x 171mm

Nett Weight

B8E - basin - 13kg

Gross Weight Including Packaging

B8E - basin - 15kg

Packed Dimension

B8E - 700 x 520 x 200 = 0.0728 m3

Tap Hole Options

0, 1, 2, 3 (supplied un-drilled)

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

B8E

-

WRAS Not Applicable

BS EN 31:2011

BS EN 14688:2015

Additional Information

Overflow hole is predrilled

Compatible Products

W11 - Click-clack basin waste slotted

W18 - Flip-top basin waste slotted

Downloads

Instructions - PDF - B8E (English)
Instructions - PDF - B8E (French)

2D CAD-File - DWG - B8E (B8E_LD.dwg)

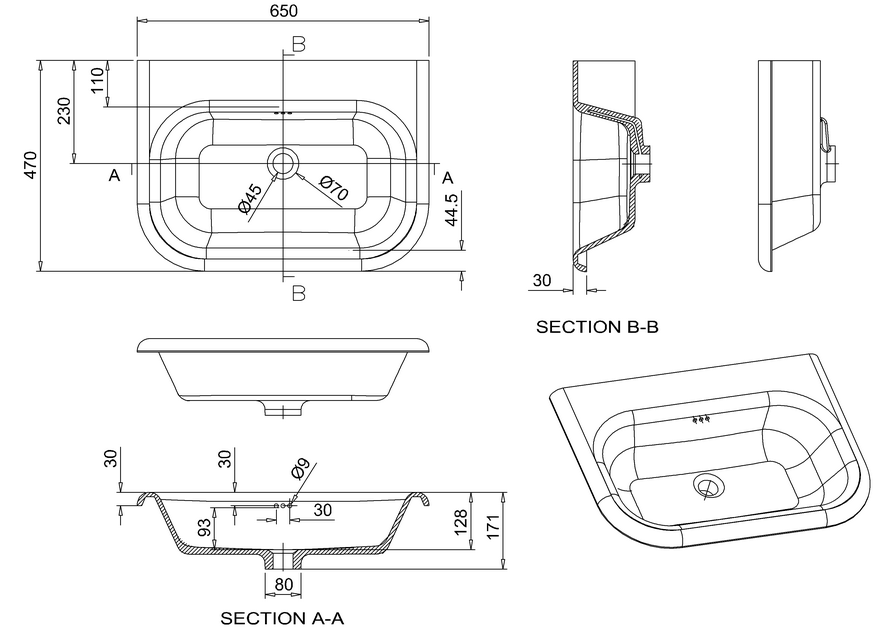

2D Drawing - PDF - B8E (B8E_LD.pdf) 2D Drawing - PDF - B8E

3D DWG - File - DWG - B8E (AJF-BST650470-B.dwg)
3D DXF - File - DXF - B8E (AJF-BST650470-B.dxf)
3D IGS - File - IGS - B8E (AJF-BST650470-B.igs)
3D RFA BIMM Objects - File - RFA - B8E (AJF-BST650470-B.rfa)

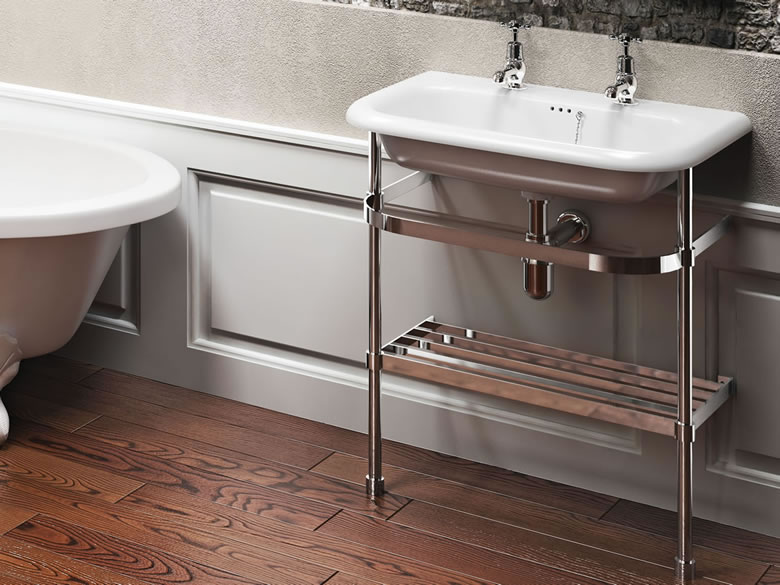

Lifestyle image 1 -

jpg
Lifestyle image 2 - tiff pending.
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
