Small roll top basin with stainless steel Stand
As Shown
| B7E Roll top basin with overflow |
| B7ES Roll top basin stand |
Nett Weight
| B7E - basin - 11.5kg |
| B7ES - basin stand - 5kg |
Gross Weight Including Packaging
| B7E - basin - 13.5kg |
| B7ES - basin stand - 5.6kg |
Packed Dimension
| B7E - 600 x 520 x 200 = 0.0624 m3 |
| B7ES - 530 x 460 x 86 = 0.021 m3 |
Tap Hole Options
| 0, 1, 2, 3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
Overflow hole is predrilled |
Compatible Products
| W11 - Click-clack basin waste slotted |
| W18 - Flip-top basin waste slotted |
| SP968 | small adjustable supports for the basin stands |
Downloads
- Instructions - PDF - B7E (English)
- Instructions - PDF - B7ES (English)
- Instructions - PDF - B7E (French)
- Instructions - PDF - B7ES (French)
-
2D CAD-File - DWG -
B7E B7ES
(B7E B7ES_LD.dwg)
-

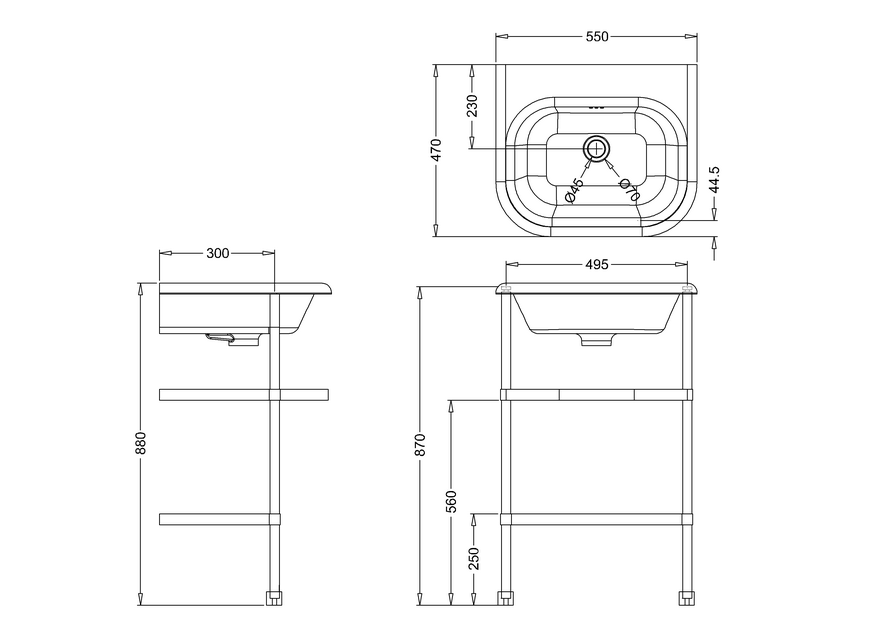

2D Drawing - PDF -
B7E B7ES
(B7E B7ES_LD.pdf)
2D Drawing - PDF - B7E B7ES
-
3D DWG - File - DWG
-
B7E B7ES
(7855.dwg)
-
3D DXF - File - DXF
-
B7E B7ES
(7855.dxf)
-
3D IGS - File - IGS
-
B7E B7ES
(7855.igs)
-
3D RFA BIMM Objects - File - RFA
-
B7E B7ES
(7855.rfa)
-

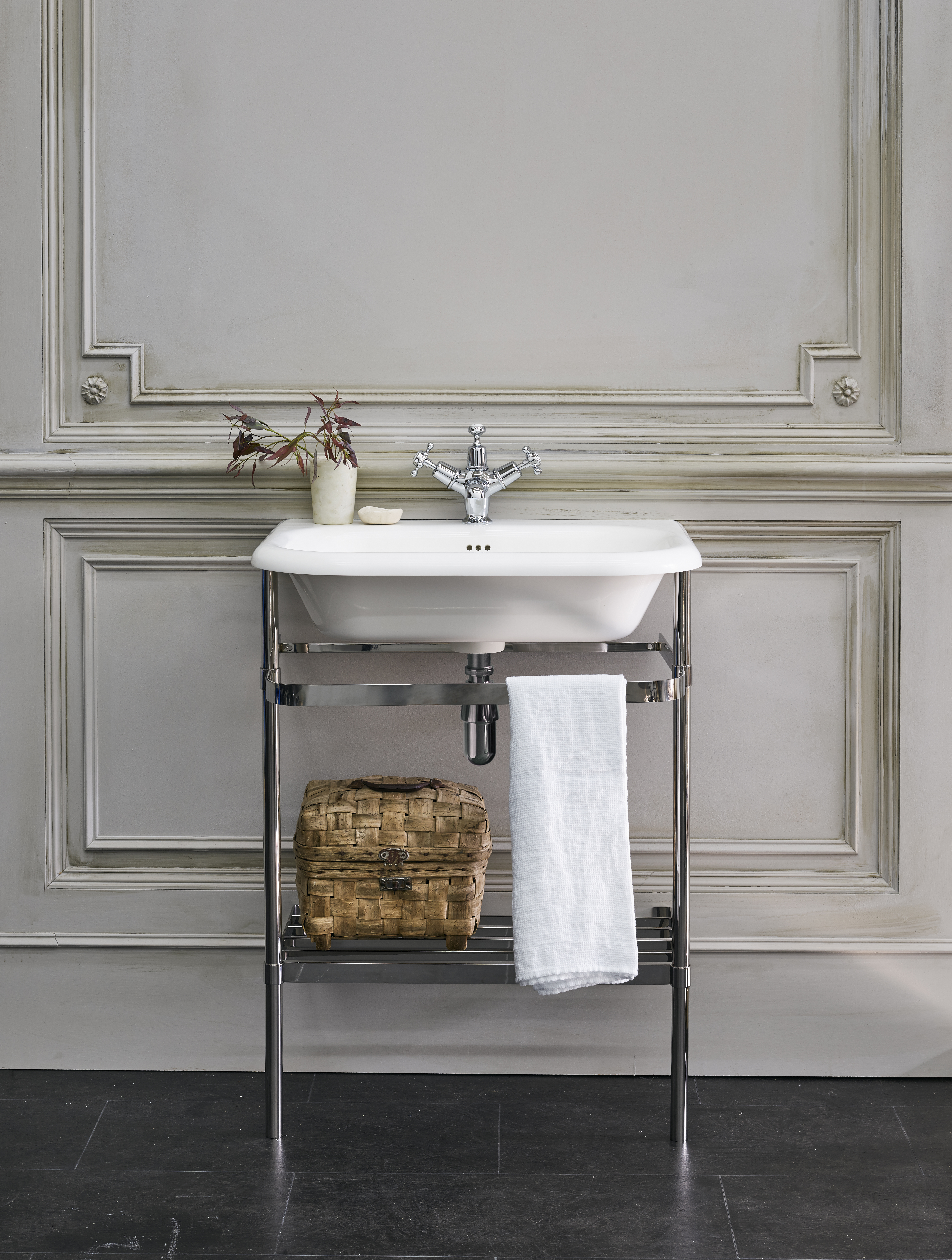

Lifestyle image 1 -
jpg -
Lifestyle image 2 -
jpg -
Lifestyle image 3 -
tiff
pending.
-

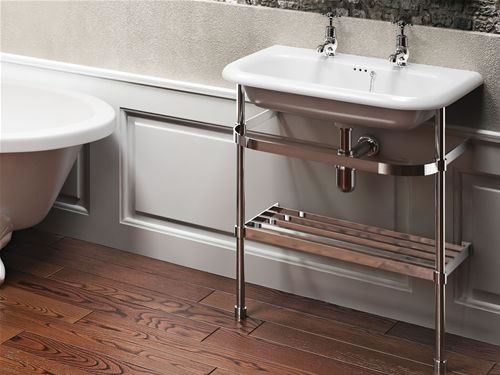

Product image 1 -
