Large roll top basin with stainless steel Stand

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

B9E −

B9ES −

Tap Hole Options

0, 1, 2, 3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 31:2011

BS EN 14688:2015

Additional Information

Overflow hole is predrilled

Compatible Products

W11 - Click-clack basin waste slotted

W18 - Flip-top basin waste slotted

SP968

small adjustable supports for the basin stands

Downloads

Instructions - PDF - B9E (English)
Instructions - PDF - B9ES (English)
Instructions - PDF - (French)
Instructions - PDF - (French)

2D CAD-File - DWG - B9E B9ES (B9E B9ES_LD.dwg)

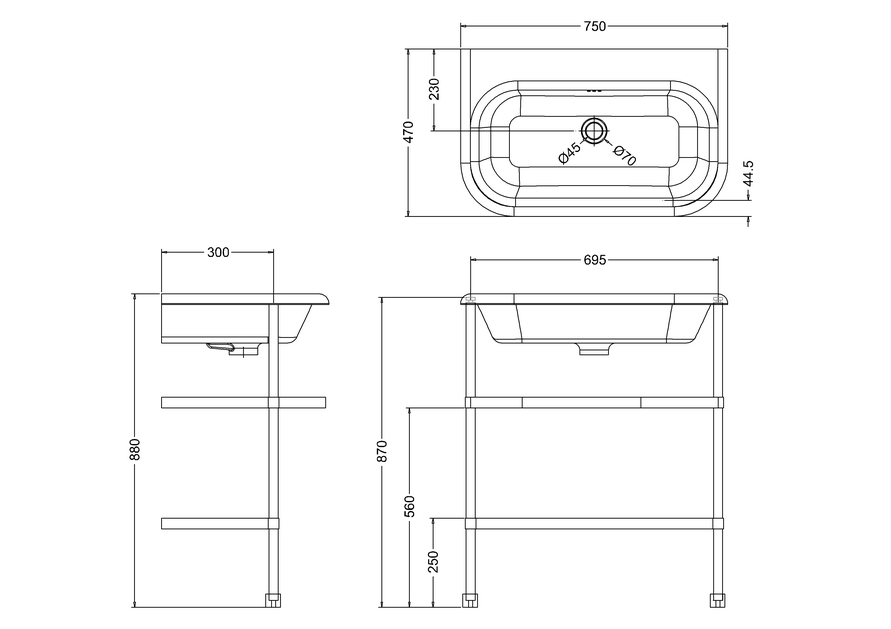

2D Drawing - PDF - B9E B9ES (B9E B9ES_LD.pdf) 2D Drawing - PDF - B9E B9ES

3D DWG - File - DWG - B9E B9ES (7857.dwg)
3D DXF - File - DXF - B9E B9ES (7857.dxf)
3D IGS - File - IGS - B9E B9ES (7857.igs)
3D RFA BIMM Objects - File - RFA - B9E B9ES (7857.rfa)

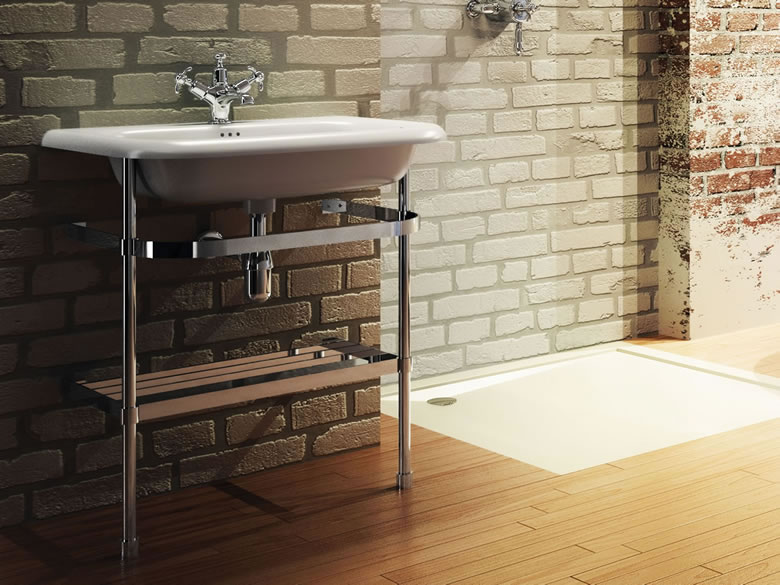

Lifestyle image 1 -

jpg
Lifestyle image 2 - tiff pending.
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
