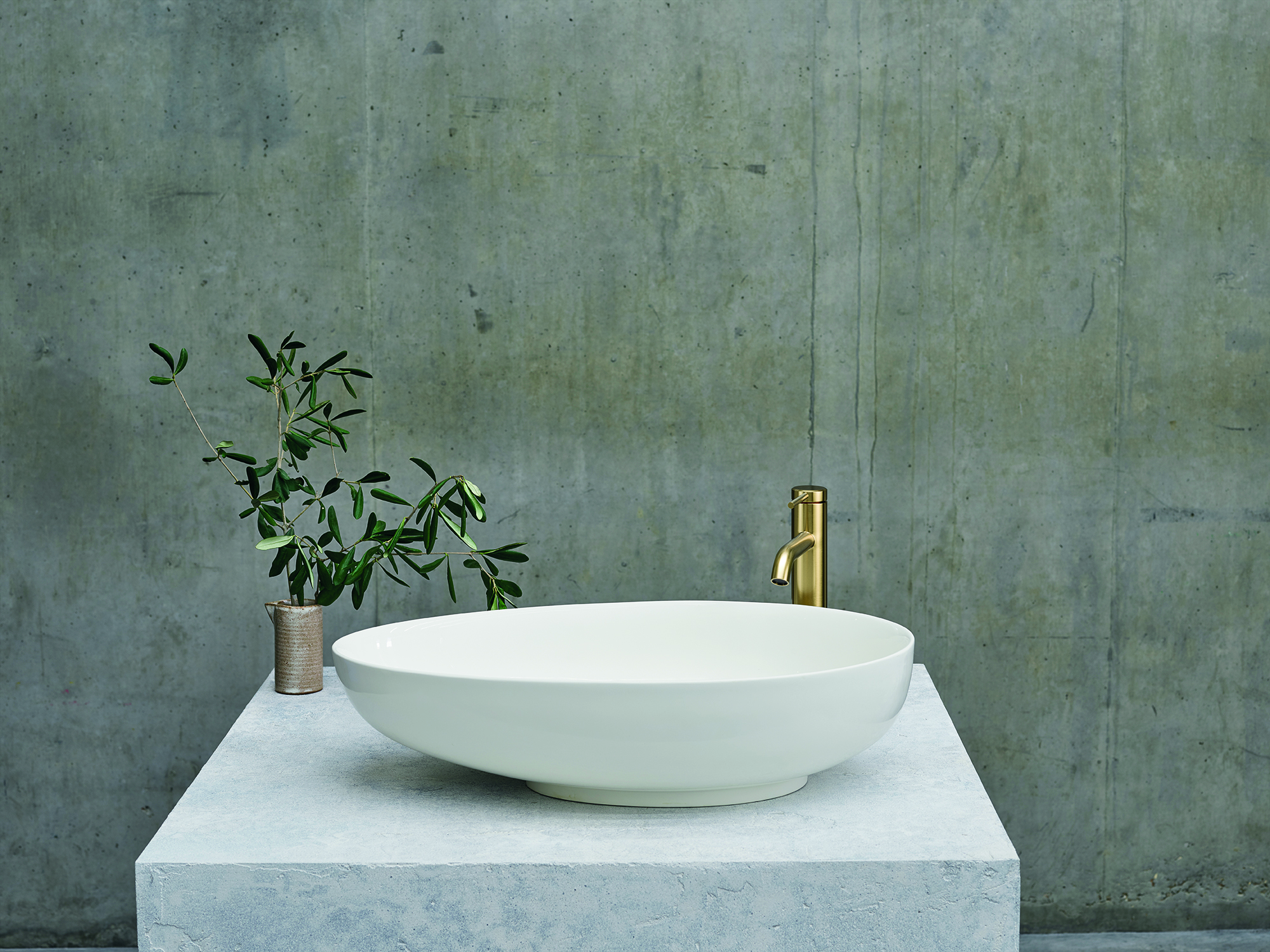

Teardrop basin
As Shown
| B10ECS Teardrop Basin |
Colour
| B10ECS - basin - Gloss White |
Material
| B10ECS - basin - Clearstone |
Nett Weight
| B10ECS - basin - 4.9kg |
Gross Weight Including Packaging
| B10ECS - basin - 5.8kg |
Packed Dimension
| B10ECS - 610 x 390 x 170 = 0.0404 m3 |
Tap Hole Options
| 0 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Compatible Products
| W22 - Click-clack basin waste un-slotted |
Downloads
-
2D CAD-File - DWG -
B10ECS
(B10ECS.dwg)
-

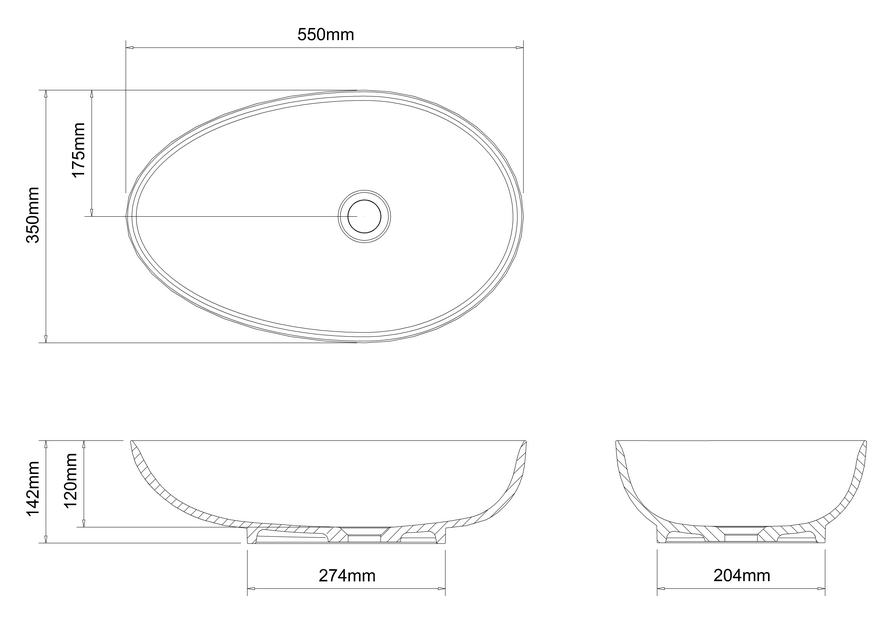

2D Drawing - PDF -
B10ECS
(B10ECS.pdf)
2D Drawing - PDF - B10ECS
-
3D DWG - File - DWG
-
B10ECS
(B10ECS.dwg)
-
3D DXF - File - DXF
-
B10ECS
(B10ECS.dxf)
-
3D IGS - File - IGS
-
B10ECS
(B10ECS.igs)
-
3D RFA BIMM Objects - File - RFA
-
B10ECS
(B10ECS.rfa)
