Welcome to the Bathroom Brands Technical Whitebook

Crystal basin mixer without waste
Product Options
waste options

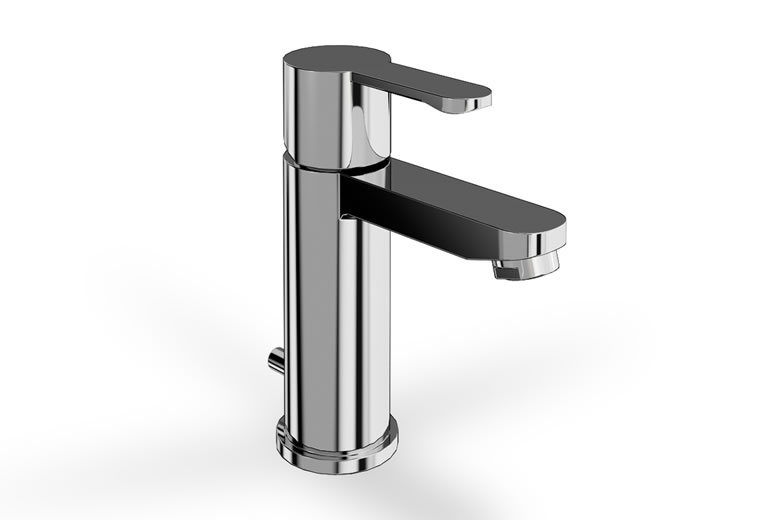

Crystal basin mixer without waste with pop-up waste Crystal basin mixer with pop-up waste without waste
Alternate Text
As Shown

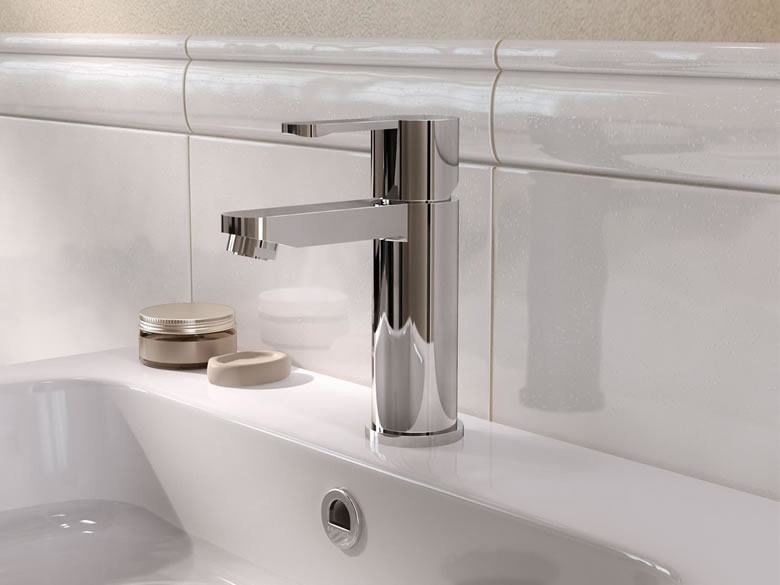

CTA1 Crystal basin mixer without pop up waste
Gross Weight Including Packaging
CTA1 - tap - 1.7kg
15 year guarantee*
*Full terms & conditions here
Standards Information
CTA1  -  WRAS Not Applicable
Level 10 salt spray tested
Sanitary tapware. Mechanical mixing valves (PN 10). General technical specifications
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Chrome plated to EN248:2002
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
All mixers work on 0.2 bar to 5 bar pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 4.07  6.92  9.99  14.31  17.22  n/a  n/a
Spout (aerator) 3.4  4.82  6.88  8.37  n/a  n/a
Product name:
