Crystal tall basin mixer without waste
As Shown
| CTA3 Crystal tall basin mixer without pop up waste |
Colour
| CTA3 - tap - chrome plated |
Material
| CTA3 - tap - brass |
Nett Weight
| CTA3 - tap - 1.9kg |
Gross Weight Including Packaging
| CTA3 - tap - 2.3kg |
Packed Dimension
| CTA3 - 440 x 220 x 120 = 0.0116 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
Level 10 salt spray tested |
|
Chrome plated to EN248:2002 |
|
EN817:2008 |
|
Sanitary tapware. Mechanical mixing valves (PN 10). General technical specifications |
|
EN200:2008 |
|
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
|
All mixers work on 0.2 bar to 5 bar pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 3.66 | 6.82 | 9.88 | 14.45 | 17.74 | n/a | n/a |
| Spout (aerator) | 1.97 | 3.36 | 4.84 | 6.29 | 7.47 | n/a | n/a |
Downloads
-
2D CAD-File - DWG -
CTA3
(CTA3_LD.dwg)
-

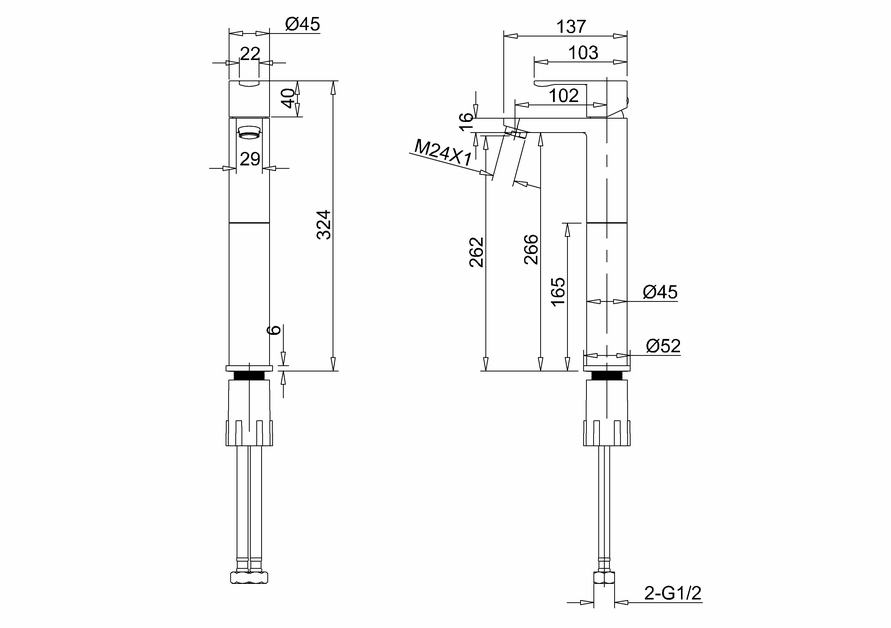

2D Drawing - PDF -
CTA3
(CTA3_LD.pdf)
2D Drawing - PDF - CTA3
-
3D DWG - File - DWG
-
CTA3
(CTA3.dwg)
-
3D DXF - File - DXF
-
CTA3
(CTA3.dxf)
-
3D IGS - File - IGS
-
CTA3
(CTA3.igs)
-
3D RFA BIMM Objects - File - RFA
-
CTA3
(CTA3.rfa)
