Crystal bath shower mixer
As Shown
| CTA7 Crystal bath shower mixer |
Colour
| CTA7 - tap - chrome plated |
Material
| CTA7 - tap - brass |
Nett Weight
| CTA7 - tap - 5kg |
Gross Weight Including Packaging
| CTA7 - tap - 6kg |
Packed Dimension
| CTA7 - 310 x 275 x 228 = 0.0194 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
Level 10 salt spray tested |
|
Chrome plated to EN248:2002 |
|
EN817:2008 |
|
Sanitary tapware. Mechanical mixing valves (PN 10). General technical specifications |
|
EN200:2008 |
|
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
|
All mixers work on 0.2 bar to 5 bar pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Handset | 4.62 | 8.46 | 12.7 | 18.65 | 20.92 | n/a | n/a |
| Spout (straightener) | 13.22 | 20.43 | 29.73 | 42.95 | 51.31 | n/a | n/a |
| Spout (aerator) | 5.78 | 8.63 | 11.62 | 16.53 | 20.1 | n/a | n/a |
Downloads
-
2D CAD-File - DWG -
CTA7
(CTA7_LD.dwg)
-

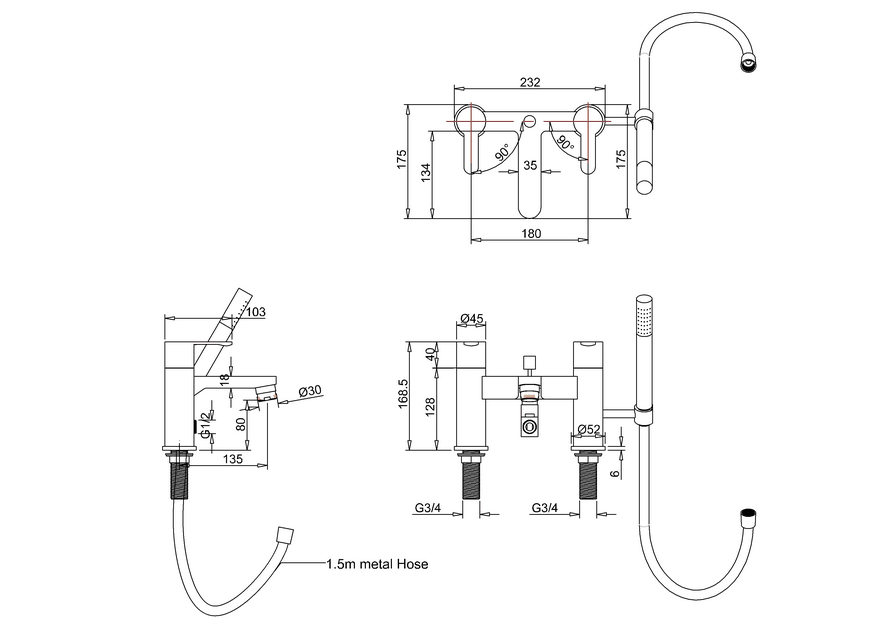

2D Drawing - PDF -
CTA7
(CTA7_LD.pdf)
2D Drawing - PDF - CTA7
-
3D DWG - File - DWG
-
CTA7
(CTA7.dwg)
-
3D DXF - File - DXF
-
CTA7
(CTA7.dxf)
-
3D IGS - File - IGS
-
CTA7
(CTA7.igs)
-
3D RFA BIMM Objects - File - RFA
-
CTA7
(CTA7.rfa)
