Click Clack bath waste slotted with white Natural Stone cover
As Shown
| CW1N Click Clack bath waste (slotted) with white natural stone cover |
Colour
| CW1N - waste - Gloss White |
Material
| CW1N - waste - Natural Stone |
Nett Weight
| CW1N - waste - 0.4kg |
Gross Weight Including Packaging
| CW1N - waste - 0.5kg |
Packed Dimension
| CW1N - 85 x 85 x 100 = 0.0007 m3 |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
For use with Clearwater Natural Stone baths with internal overflow |
|
Natural Stone cover matched Clearwater Natural Stone baths |
|
Press top of the waste to close/open. |
| SP482 | click clack part for CW1, CW2 and SP396 |
| SP1113 | waste cover and plug for CW1N |
Downloads
- Instructions - PDF - CW1N (English)
- Instructions - PDF - CW1N (French)
- Instructions - PDF - CW1N (French)
-
2D CAD-File - DWG -
CW1N
(CW1N_LD.dwg)
-

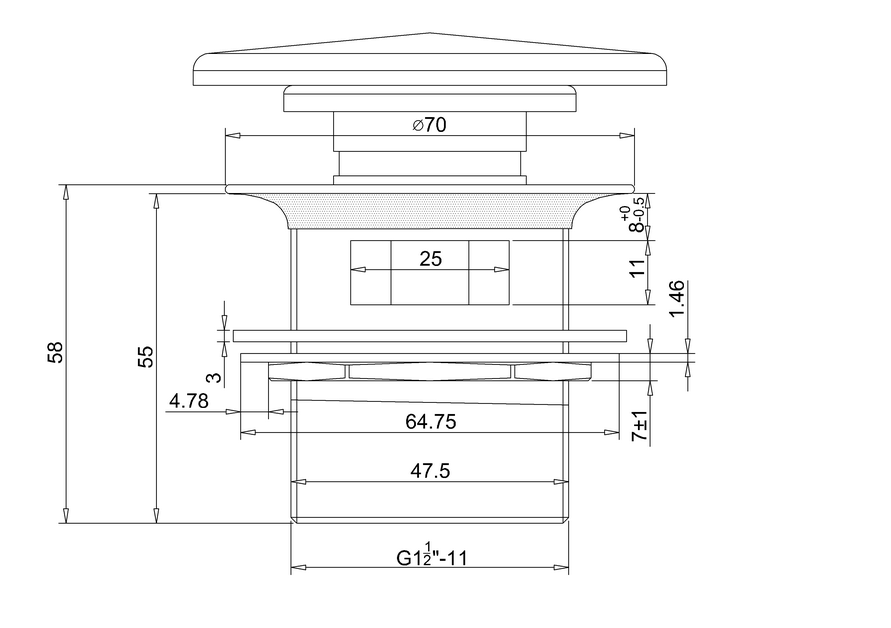

2D Drawing - PDF -
CW1N
(CW1N_LD.pdf)
2D Drawing - PDF - CW1N
-
3D DWG - File - DWG
-
CW1N
(CW1-B 2012.02.20.dwg)
-
3D DXF - File - DXF
-
CW1N
(CW1-B 2012.02.20.dxf)
-
3D IGS - File - IGS
-
CW1N
(CW1-B 2012.02.20.igs)
-
3D RFA BIMM Objects - File - RFA
-
CW1N
(CW1-B 2012.02.20.rfa)
