Square basin bottle trap

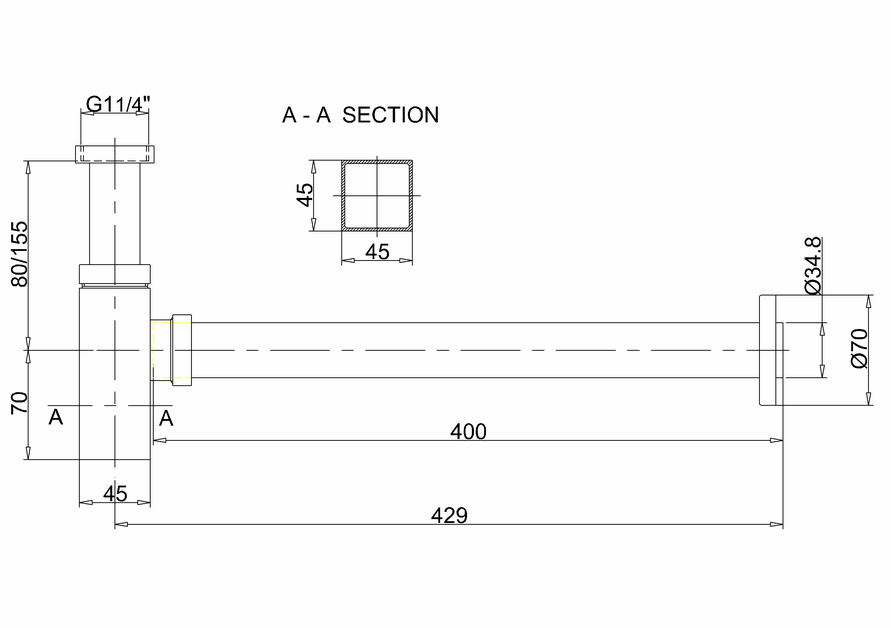

As Shown
| W17 Square basin bottle trap |
Material
| W17 - bottle trap - Brass |
Nett Weight
| W17 - bottle trap - 0.94kg |
Gross Weight Including Packaging
| W17 - bottle trap - 1.16kg |
Packed Dimension
| W17 - 405 x 150 x 60 = 0.0036 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
Chrome plated to EN248:2002 |
Additional Information
|
Pipe length can be cut to size on site |
| SP1217 | the top washer for all finishes products of W14, W17, W15, W13, HOX.0402 |
| SP1284 | wall decorative cover for W13, W14, W17 |
Downloads
-
2D CAD-File - DWG -
W17
(W17_LD_1.dwg)
-
2D Drawing - PDF -
W17
(W17_LD_1.pdf)
2D Drawing - PDF - W17
-
3D DWG - File - DWG
-
W17
(W17_3.dwg)
-
3D DXF - File - DXF
-
W17
(W17_3.dxf)
-
3D IGS - File - IGS
-
W17
(W17_3.igs)
-
3D RFA BIMM Objects - File - RFA
-
W17
(W17_3.rfa)
