Click-clack basin waste un-slotted
As Shown
| W22 Click-clack basin waste (unslotted) |
Material
| W22 - waste - Brass |
Size
| W22 - 61 x 61 x 71mm |
Nett Weight
| W22 - waste - 0.398kg |
Gross Weight Including Packaging
| W22 - waste - 0.43kg |
Packed Dimension
| W22 - 110 x 70 x 70 = 0.0005 m3 |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
|
Chrome plated to EN248:2002 |
Additional Information
|
Press the waste to open. Press again to close. |
|
Waste tail can be cut down if required. |
|
Unslotted - for basins without an overflow |
| SP1189 | black fixing nut for all finishes products of T13, T13-QT, T16, T16-QT, W11, W22, W18, W1 |
| SP480 | click clack part for all finishes products of W11, W22 |
| SP1245 | the cover for W11 |
| SP171 | W11 decorative covers |
| SP223 | washer for all finishes products of W11, W22 |
Downloads
-
2D CAD-File - DWG -
W22
(W22_LD.dwg)
-

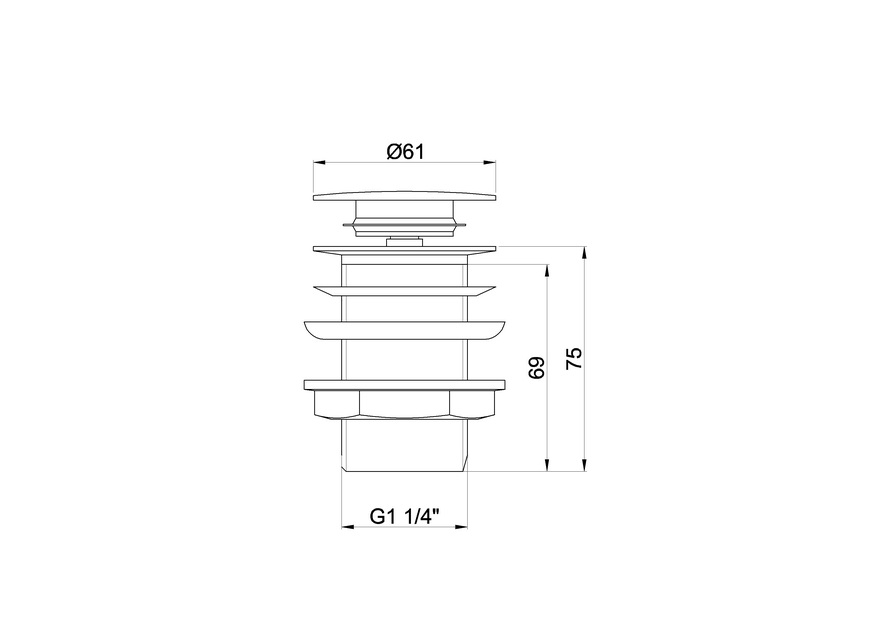

2D Drawing - PDF -
W22
(W22_LD.pdf)
2D Drawing - PDF - W22
-
3D DWG - File - DWG
-
W22
(W22-customer only.dwg)
-
3D DXF - File - DXF
-
W22
(W22-customer only.dxf)
-
3D IGS - File - IGS
-
W22
(W22-customer only.igs)
-
3D RFA BIMM Objects - File - RFA
-
W22
(W22-customer only.rfa)
