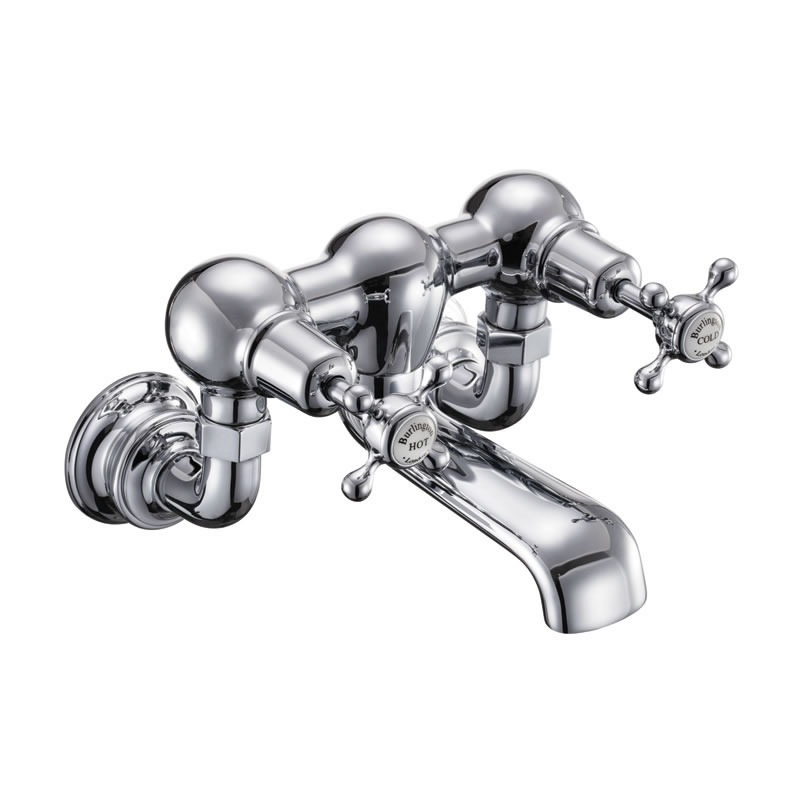

Burlington bath filler wall mounted
asaq2.Model.Web_product_new?.web_name
Product Options
Tap Head Options (Chrome Finish Shown)

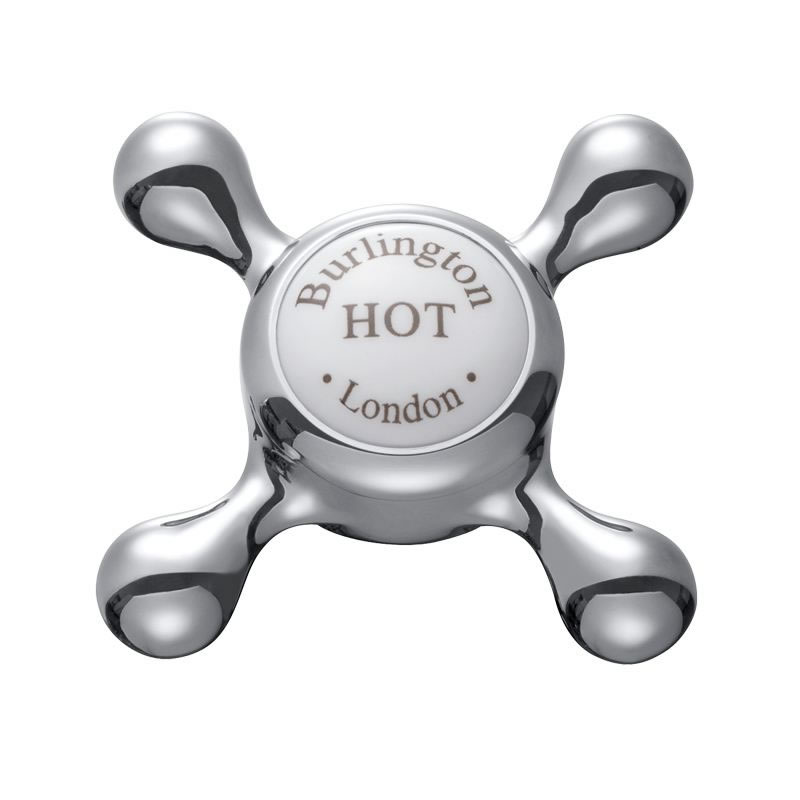

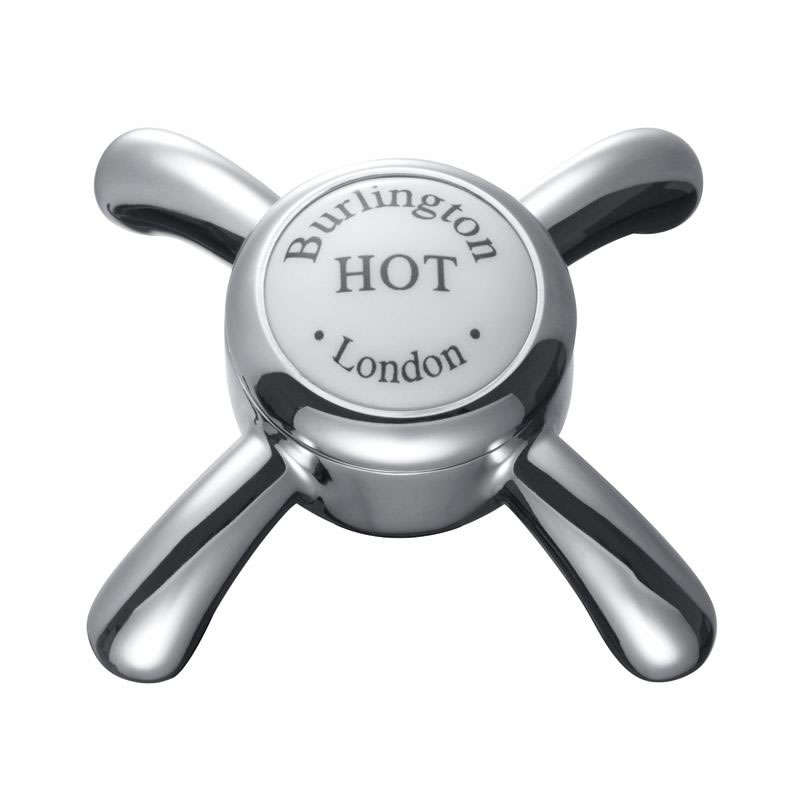

Ceramic Tap Hand_T1_PAGE63_PAGE65.jpg Claremont Anglesey bath filler - wall mounted Anglesey Birkenhead bath filler - wall mounted Birkenhead
Quarter turn options
Claremont bath filler - wall mounted quarter turn full_done.jpg tradional screw-down
Tap Base options
Claremont bath filler - wall mounted Standard base Claremont Regent bath filler - wall mounted Regent base
Indicies & lever finish

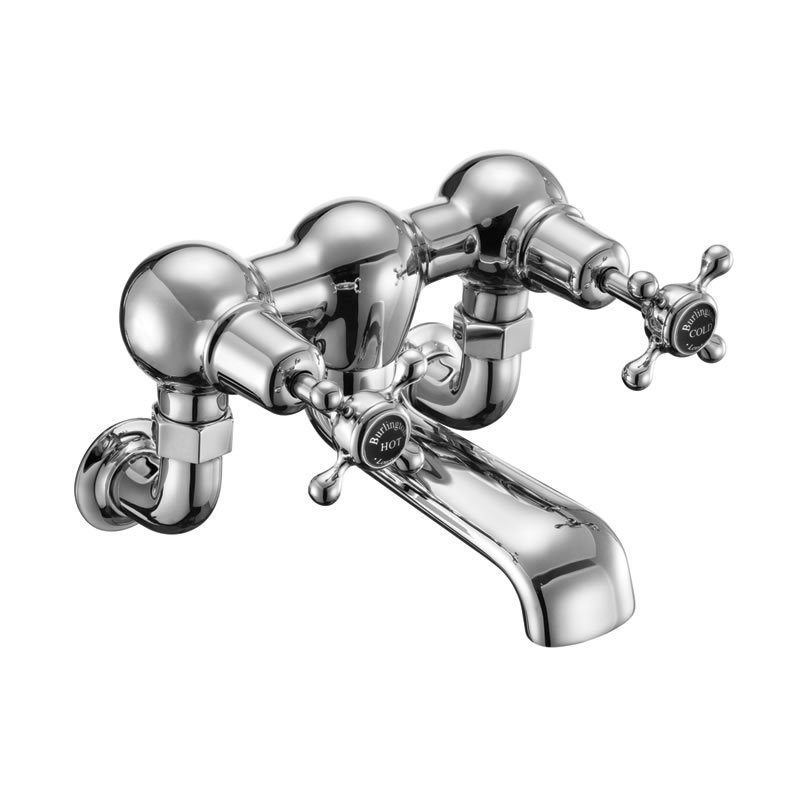

Claremont bath filler - wall mounted White Claremont Medici bath filler - wall mounted Medici Claremont bath filler - wall mounted Black
Alternate Text
As Shown
T10 Bath filler
T17-2 Wall mounting unions

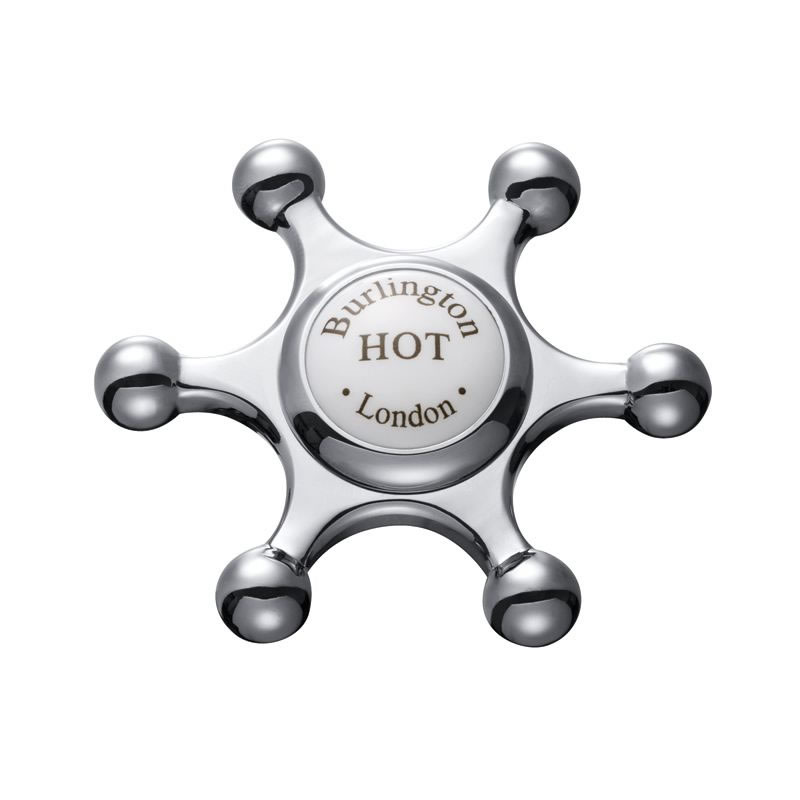

T1 Claremont tap handles

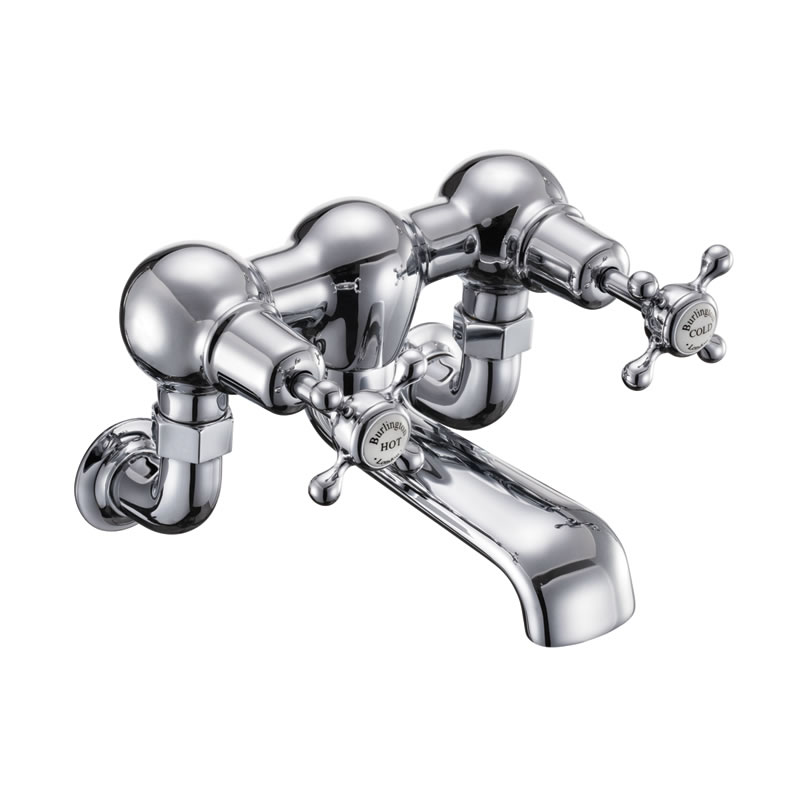

CL24  -  Combined product code
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
T10  -  UK Compliant
T17-2  -  UK Compliant
T1  -  WRAS Not Applicable
BS EN 200:2008
BS EN 817:2008
ACS Approved
Alternate Text
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 21  21.7  24.2  26.5  28  n/a  n/a
Spout (aerator) 5.4  10.3  11.5  13.6  15.5  n/a  n/a
SP162 aerator & flow straightener for T27-QT, T27-QT GOLD, T27-QT NKL, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548 aerator for T27-QT, T27-QT GOLD, T27-QT NKL, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP715 cover plate for T17, T17-2
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP93 fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP1547 flow straightener for T27-QT, T27-QT GOLD, T27-QT NKL, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1480 inner connector for T10, T10-QT, T11, T11-QT, T8, T8-QT, T9, T9-QT
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP26 T8, T10, T11 3, 4 full turn cartridge
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
