Burlington bath taps
Product Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
Claremont
|
Anglesey
|
Birkenhead
|
quarter turn
|
tradional screw-down
|
Standard base
|
Regent base
|
White
|
Medici
|
Black
|
As Shown

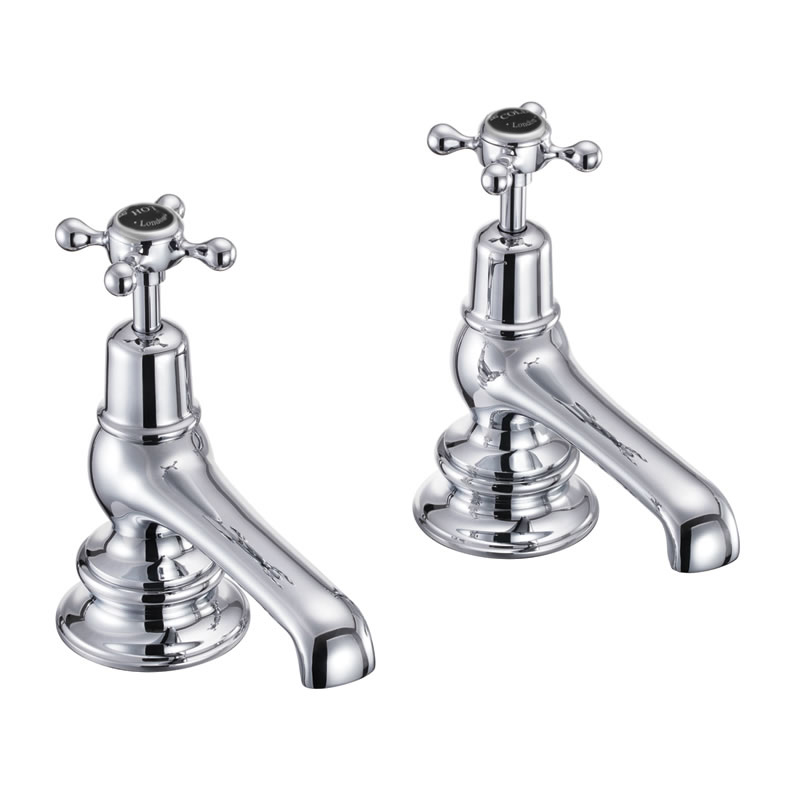

| T7 Bath pillar taps |
| T4A Regent large pair of tap bases |
| T1 BLA Claremont tap handles (pair) - chrome & black |
| BX8 Black hot/cold tap indices |
| CLR3 BLA - Combined product code |
Colour
| T7 - tap - Polished Chrome |
| T4A - regent tap base - Polished Chrome |
| T1 BLA - tap handle - Polished Chrome |
| BX8 - indice - Gloss Black |
Material
| T7 - tap - Brass |
| T4A - regent tap base - Brass |
| T1 BLA - tap handle - Brass |
| BX8 - indice - Vitreous China |
Nett Weight
| T7 - tap - 1.32kg |
| T4A - regent tap base - 0.4kg |
| T1 BLA - tap handle - 0.15kg |
| BX8 - indice - 0.008kg |
Gross Weight Including Packaging
| T7 - tap - 1.62kg |
| T4A - regent tap base - 0.5kg |
| T1 BLA - tap handle - 0.17kg |
| BX8 - indice - 0.02kg |
Packed Dimension
| T7 - 325 x 195 x 55 = 0.0035 m3 |
| T4A - 120 x 110 x 88 = 0.0012 m3 |
| T1 BLA - 60 x 60 x 62 = 0.0002 m3 |
| BX8 - 55 x 54 x 55 = 0.0002 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 14.2 | 16.5 | 19.5 | 23.1 | 23.7 | n/a | n/a |
| Spout (aerator) | 4.8 | 7.9 | 9.1 | 10.5 | 11.6 | n/a | n/a |
| SP1726 | back bottom washer for SP28 |
| SP523 | chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP449 | flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23 |
| SP92 | G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT |
| SP28 | T5, T6, T7, T16 1, 2 full turn cartridge |
| SP1093 | thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT |
Downloads
-
2D CAD-File - DWG -
CLR3 BLA
(CLR3_LD.dwg)
-

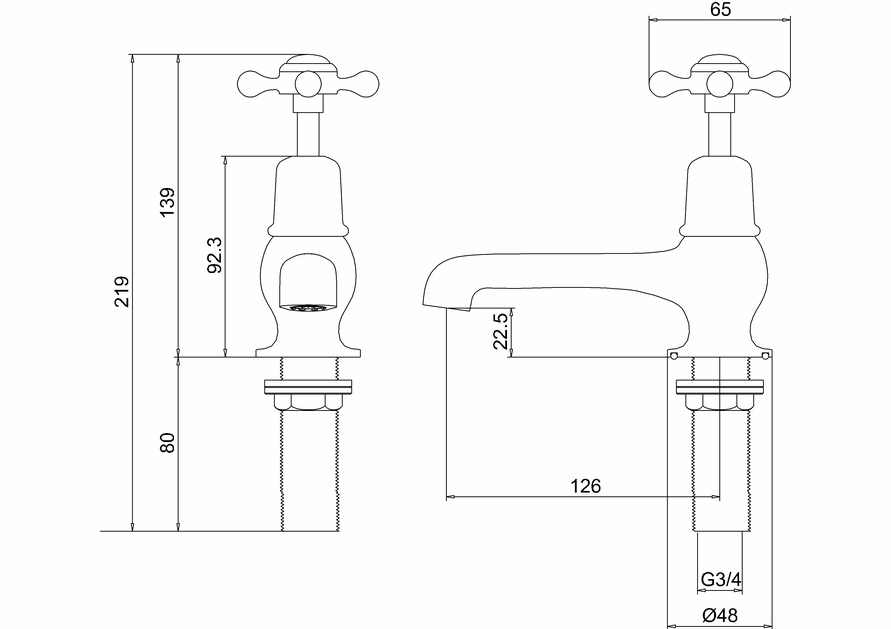

2D Drawing - PDF -
CLR3 BLA
(CLR3_LD.pdf)
2D Drawing - PDF - CLR3 BLA
-
3D RFA BIMM Objects - File - RFA
-
CLR3 BLA
(T7_T1_T4A.rfa)
- 3D IGS - File - IGS - T1 BLA (T1 handle.igs)
- 3D DWG - File - DWG - T7 (T7.dwg)
- 3D DXF - File - DXF - T7 (T7.dxf)
- 3D IGS - File - IGS - T7 (T7.igs)
- 3D DWG - File - DWG - T4A (T4A.dwg)
- 3D DXF - File - DXF - T4A (T4A.dxf)
- 3D IGS - File - IGS - T4A (T4A.igs)
