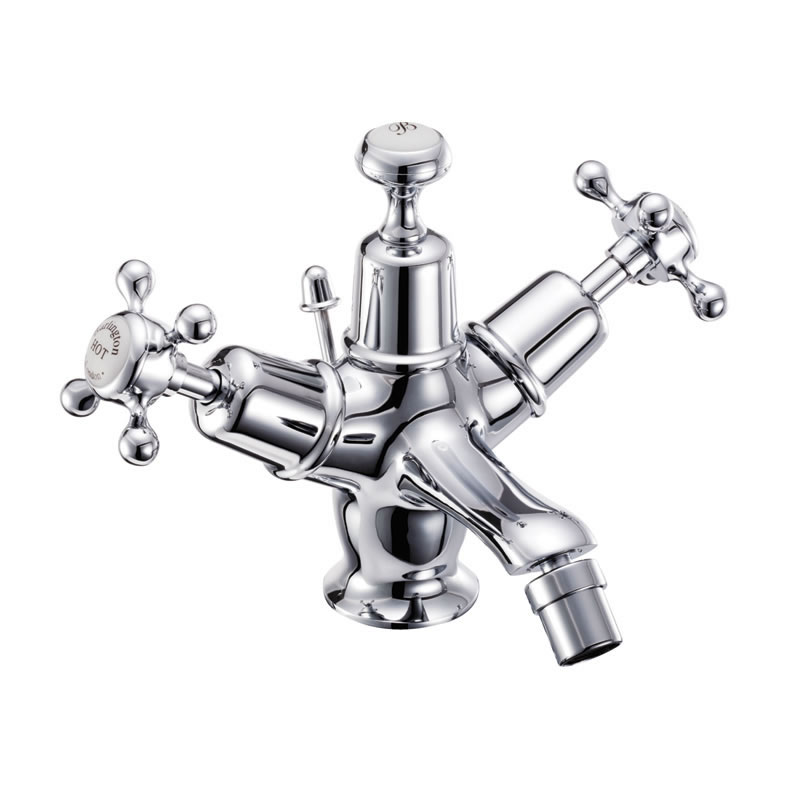

Burlington bidet mixer with low central indice with pop-up waste
asaq2.Model.Web_product_new?.web_name
Product Options
Tap Head Options (Chrome Finish Shown)
Ceramic Tap Hand_T1_PAGE63_PAGE65.jpg Claremont Anglesey bidet mixer with low central Burlington ceramic indice with pop-up waste Anglesey Birkenhead bidet mixer with low central Burlington ceramic indice with pop-up waste Birkenhead Kensington bidet mixer with low central Burlington ceramic indice with pop-up waste Kensington
Tap Base options

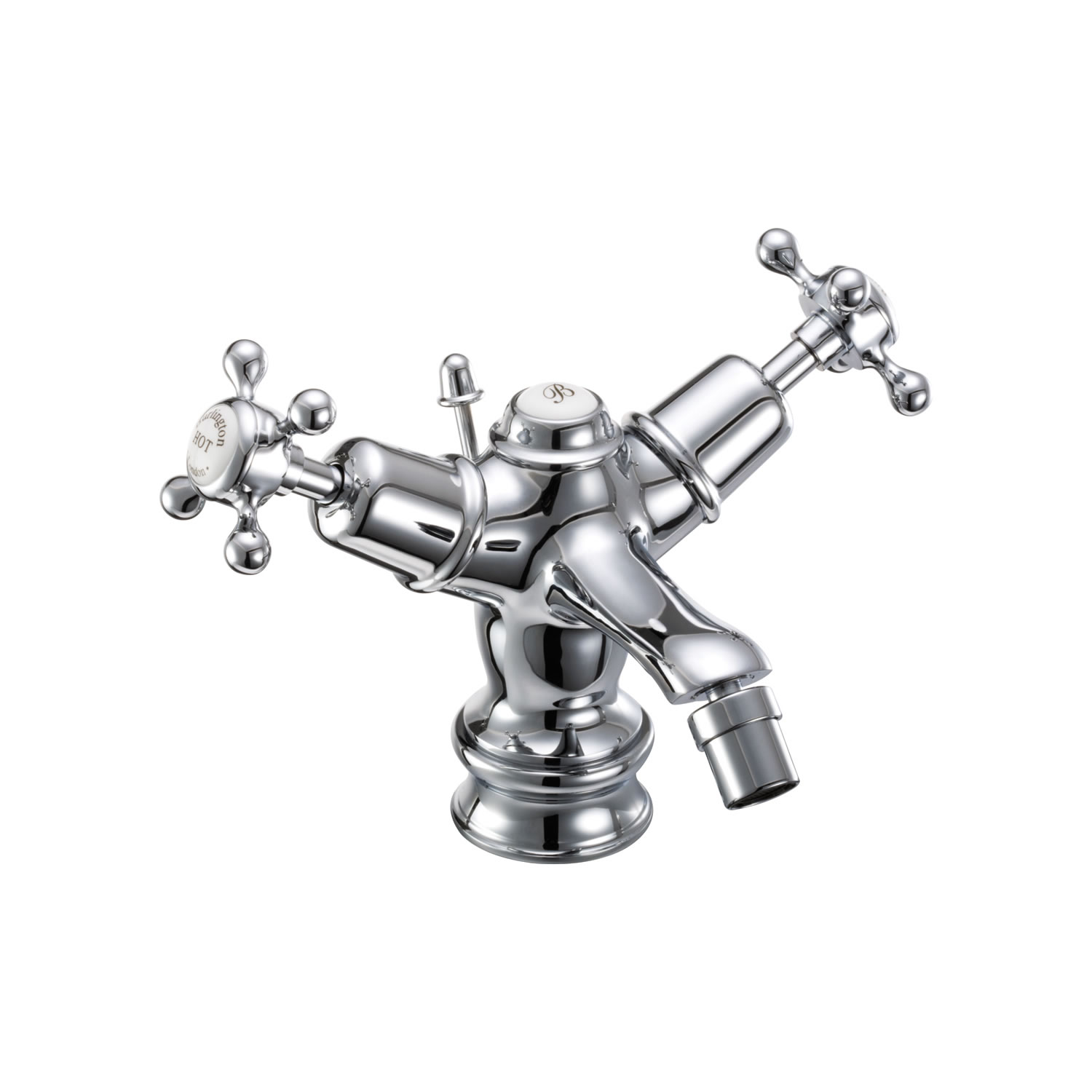

Claremont Bidet Mixer with Low Central Burlington Ceramic Indice with pop-up Waste Standard base Claremont Regent bidet mixer with low central Burlington ceramic indice with pop-up waste Regent base
As Shown
T15 Bidet mixer with pop up
T1 Claremont tap handles
CL13  -  Combined product code
Gross Weight Including Packaging
T15 - tap - 2.12kg
T1 - tap handle - 0.17kg
Guarantee
10 year guarantee*
*Full terms & conditions here
Standards Information
BS 5412:1996
BS EN 200:2008
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 10.3  15.2  16.9  19.4  20.7  n/a  n/a
Spout (aerator) 3.8  5.3  7.3  8.3  10.5  n/a  n/a
SP1726 back bottom washer for SP28
SP817 chrome blanking plug of pop up hole for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP825 lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP194 o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP974 plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
SP807 pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP48 T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
SP29 T13, T15 1, 2 full turn cartridge
SP942 tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP1125 the nozzle for T15, T15-QT, CH23
SP985 top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
