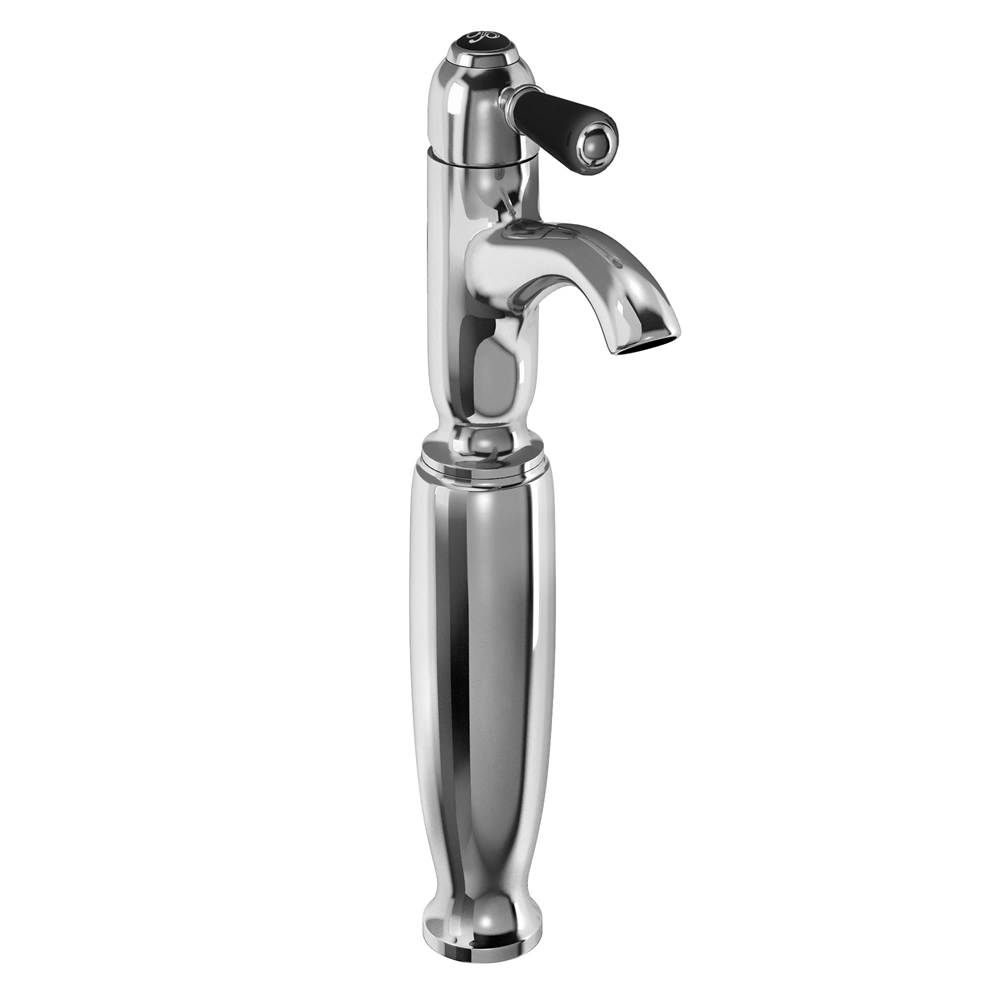

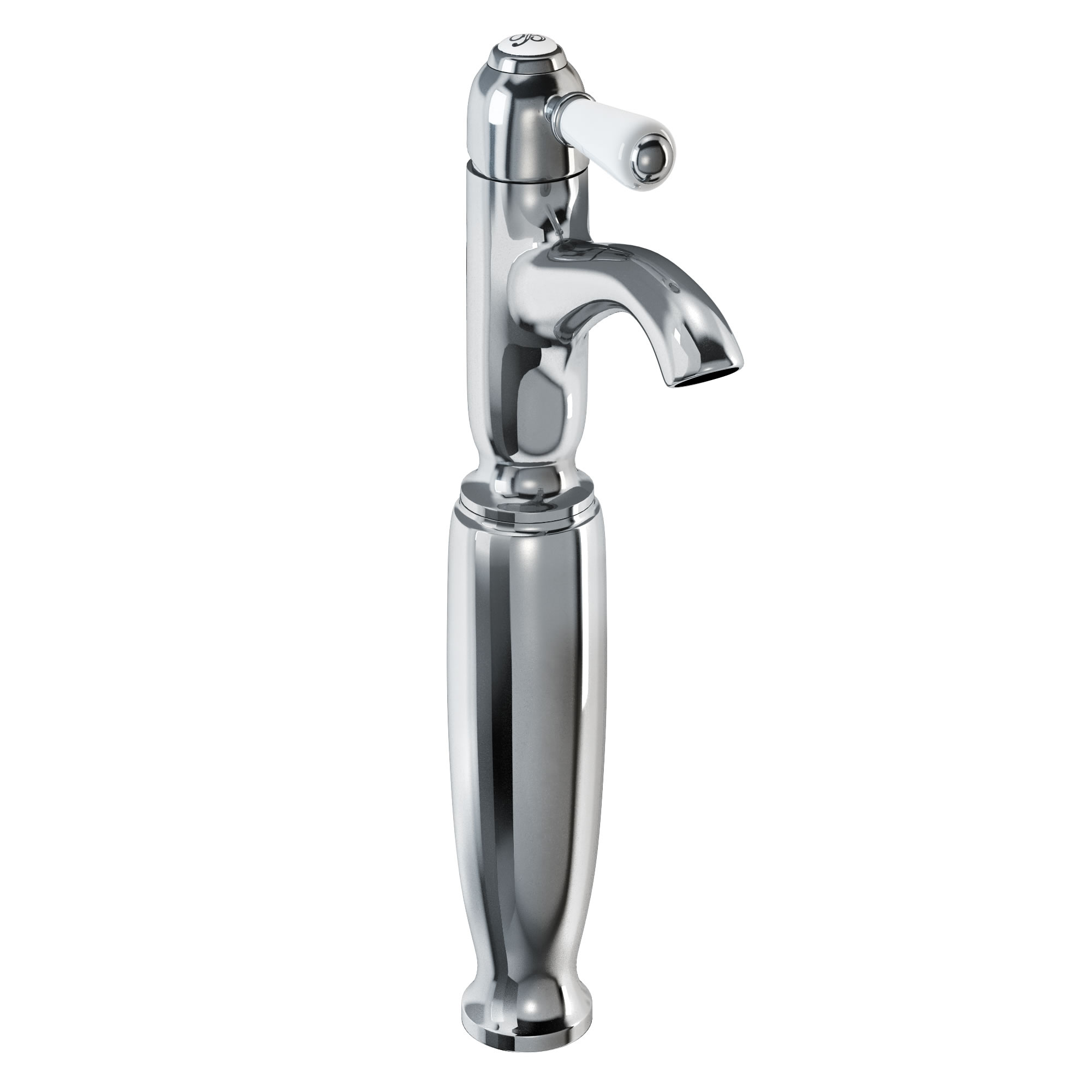

Chelsea Curved Tall Basin Mixer without waste
Product Options
Indicies & lever finish
|
White
|
Medici
|
Black
|
As Shown
| CH21 Chelsea curved basin mono tap without pop up waste |
| CH24 Chelsea extended height kit |
| CHE2 - Combined product code |
Nett Weight
| CH21 - tap - 1.15kg |
| CH24 - extension - 0.85kg |
Gross Weight Including Packaging
| CH21 - tap - 1.34kg |
| CH24 - extension - 0.96kg |
Packed Dimension
| CH21 - 310 x 175 x 55 = 0.003 m3 |
| CH24 - 235 x 70 x 65 = 0.0011 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
ACS Approved |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 5.51 | n/a | 12 | 17.31 | 21.16 | n/a | n/a |
| Spout (aerator) | 3.56 | n/a | 7.75 | 10.61 | 13 | n/a | n/a |
| SP450 | aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23 |
| SP47 | b logo ceramic indice (D=21.4mm) for all finishes products of V12, CH19, R6, R7, W25 |
| SP1318 | cartridge cover(part #19) for CH19, CH20, CH21, CH22, CH23 |
| SP579 | cartridge of product CH19, CH20, CH21, CH22, CH23 |
| SP1309 | cartridge retaining nut for CH19, CH20, CH21, CH22, CH23 |
| SP1054 | chelsea tap lever of CH19, CH20, CH21, CH22, CH23 |
| SP449 | flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23 |
| SP194 | o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT |
| SP655 | pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11 |
| SP942 | tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23 |
Downloads
- Instructions - PDF - CH21 (English)
- Instructions - PDF - CH24 (English)
- Instructions - PDF - CH21 (French)
- Instructions - PDF - CH24 (French)
-
2D CAD-File - DWG -
CHE2
(CHE2_LD.dwg)
-

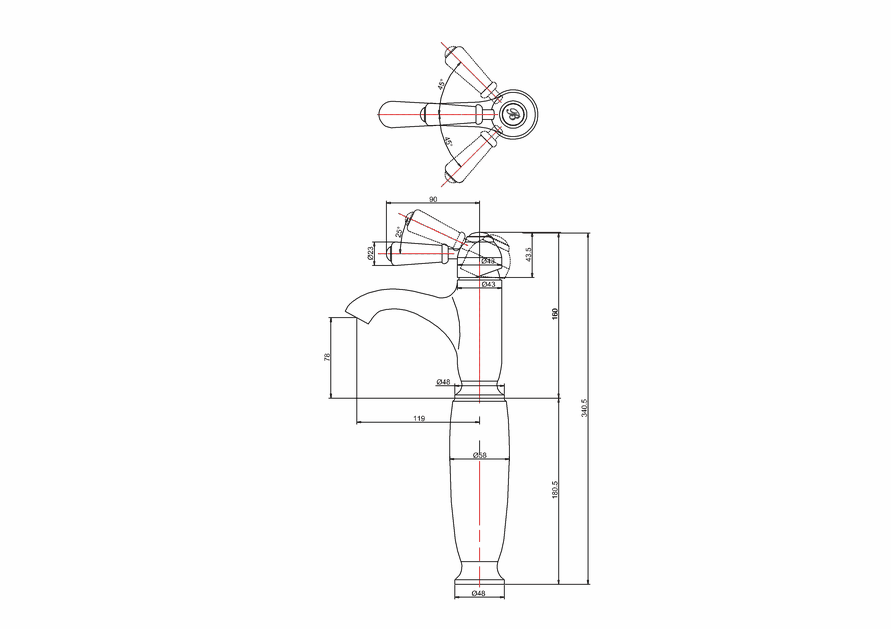

2D Drawing - PDF -
CHE2
(CHE2_LD.pdf)
2D Drawing - PDF - CHE2
-
3D RFA BIMM Objects - File - RFA
-
CHE2
(CHE2.rfa)
- 3D DWG - File - DWG - CH21 (CH21.dwg)
- 3D DXF - File - DXF - CH21 (CH21.dxf)
- 3D IGS - File - IGS - CH21 (CH21.igs)
- 3D DWG - File - DWG - CH24 (CH24.dwg)
- 3D DXF - File - DXF - CH24 (CH24.dxf)
- 3D IGS - File - IGS - CH24 (CH24.igs)
