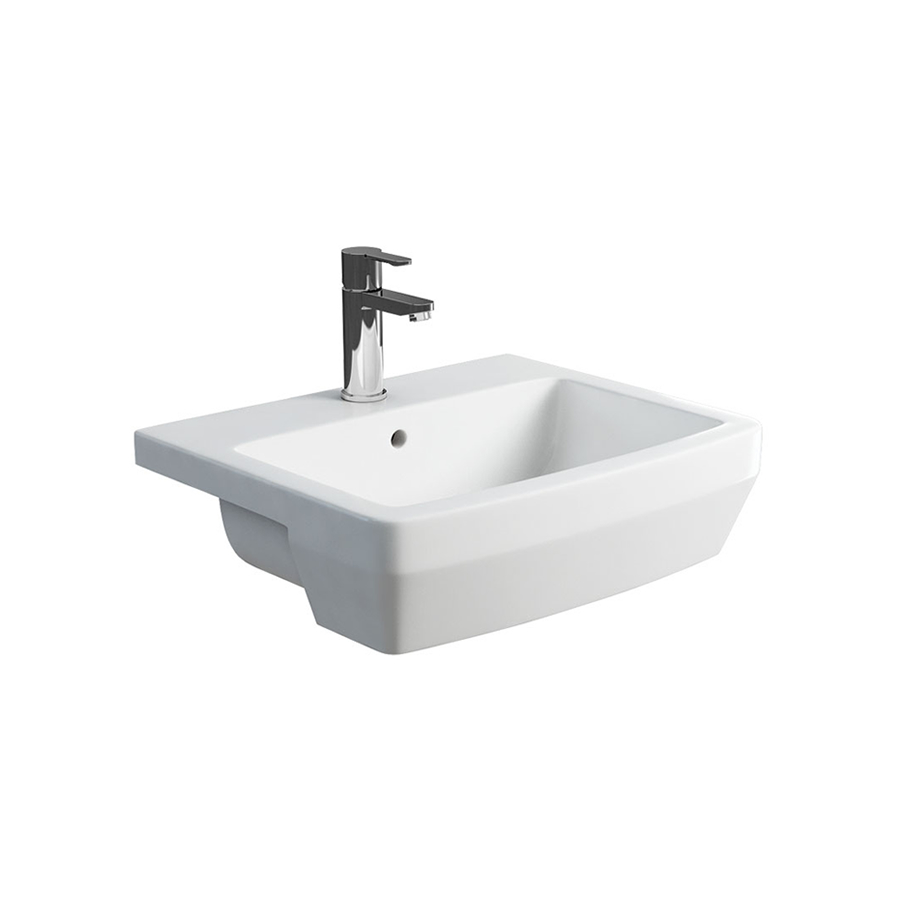

Cube S20 semi recessed basin
As Shown
| 20.1954 550mm Cube semi recessed basin |
Material
| 20.1954 - basin - Vitreous China |
Nett Weight
| 20.1954 - basin - 17.44kg |
Gross Weight Including Packaging
| 20.1954 - basin - 20kg |
Packed Dimension
| 20.1954 - 610 x 515 x 235 = 0.0738 m3 |
Tap Hole Options
| 1 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2006 |
|
BS EN 31:2011 |
Additional Information
|
ceramic vitreous china |
|
fired at 2,200 degree fahrenheit (1,200 degreees celsius) for forty hours |
|
silica glaze applied to increase the depth of color and prevent porosity |
|
integrated overflow |
|
Crystal or Sapphire basin tap |
|
AQUA overflow ring |
Compatible Products
| W11 - Click-Clack Basin Waste (slotted) |
| W18 - Flip Top Basin Waste (slotted) |
Downloads
-
2D CAD-File - DWG -
20.1954
(20.1954_LD.dwg)
-

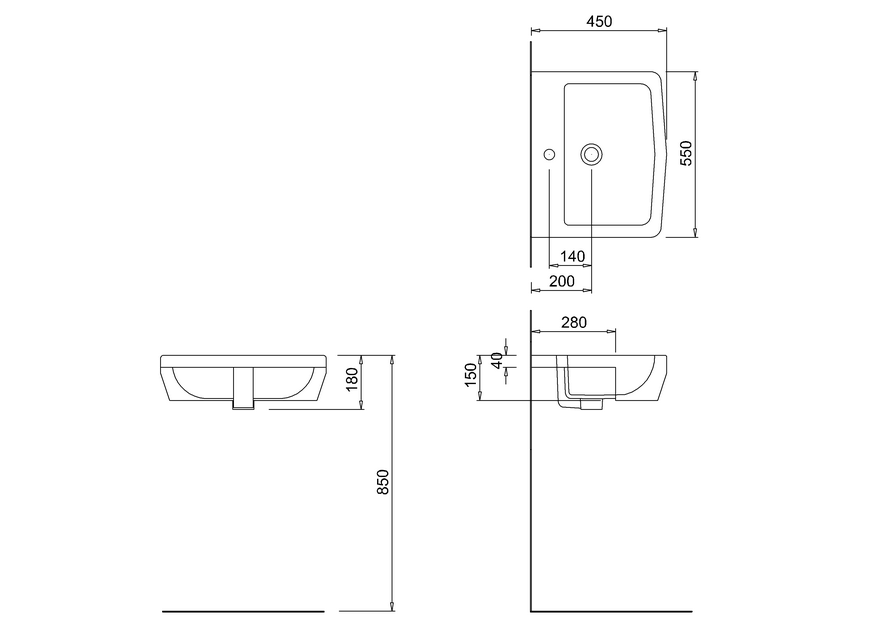

2D Drawing - PDF -
20.1954
(20.1954_LD.pdf)
2D Drawing - PDF - 20.1954
-
3D DWG - File - DWG
-
20.1954
(NPD1 Basin-550-N083.dwg)
-
3D DXF - File - DXF
-
20.1954
(NPD1 Basin-550-N083.dxf)
-
3D IGS - File - IGS
-
20.1954
(NPD1 Basin-550-N083.igs)
-
Lifestyle image 1 -
jpg -
Lifestyle image 2 -
jpg -
Lifestyle image 3 -
tiff
jpg -
Lifestyle image 4 -
tiff
jpg -
Lifestyle image 5 -
tiff
jpg -
Lifestyle image 6 -
tiff
jpg -
Product image 1 -
jpg
-
Product image 2 -
jpg
