Angled connector for telephone shower hand set

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

V62 Angled Adaptor For Telephone Handset

Colour

V62 - - Polished Chrome

Material

Size

V62 - 23.5 x 23.5 x 64mm

Nett Weight

Gross Weight Including Packaging

Packed Dimension

V62 - 60 x 60 x 62 = 0.0002 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

Chrome plated to BS EN248:2002

Sanitary tapware. General specification for electrodeposited coatings of Ni-Cr

Downloads

Instructions - PDF - V62 (English)
Instructions - PDF - V62 (French)

2D CAD-File - DWG - V62 (V62.dwg)

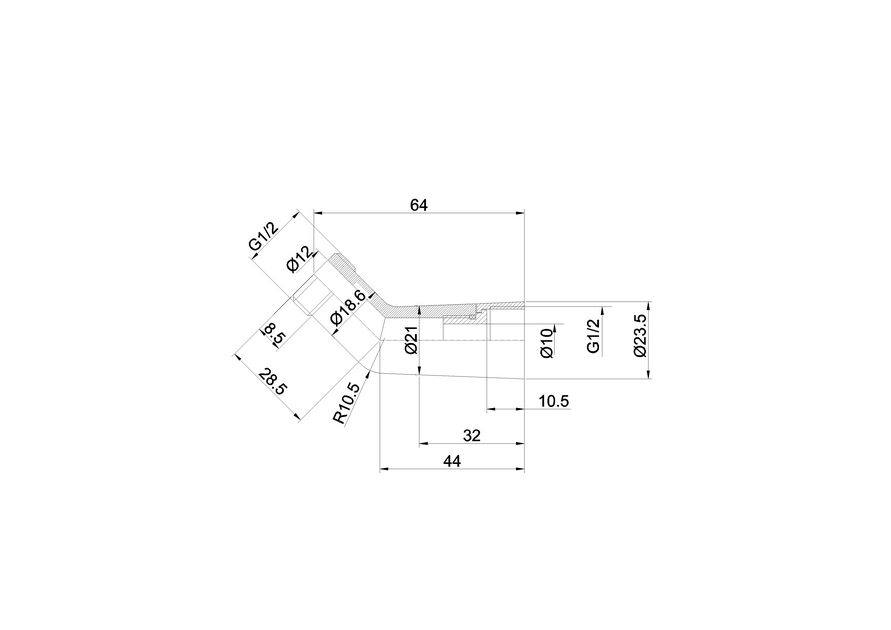

2D Drawing - PDF - V62 (V62.pdf) 2D Drawing - PDF - V62

3D DWG - File - DWG - V62 (V62.dwg)
3D DXF - File - DXF - V62 (V62.dxf)
3D IGS - File - IGS - V62 (V62.igs)
3D RFA BIMM Objects - File - RFA - V62 (V62.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
