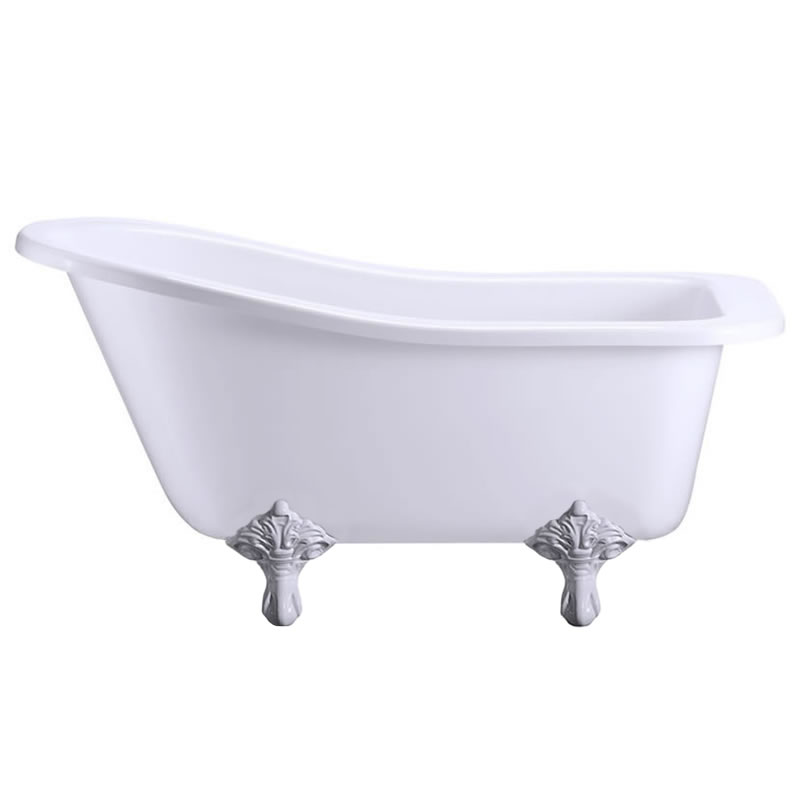

Buckingham slipper bath with standard legs
Classical legs
Chrome
White
Black
Period legs
Chrome
White
Black
Traditional legs
White
Black
Chrome
As Shown
| E6 Buckingham slipper bath |
| E11WHI Tradtional leg set |
Material
| E6 - bath - Acrylic |
| E11WHI - legs - 0 |
Nett Weight
| E6 - bath - 44kg |
| E11WHI - legs - 3.2kg |
Gross Weight Including Packaging
| E6 - bath - 46.5kg |
| E11WHI - legs - 3.9kg |
Packed Dimension
| E6 - 1560 x 850 x 650 = 0.8619 m3 |
| E11WHI - 340 x 340 x 230 = 0.0266 m3 |
Bath water capacity
| 85 litres displaced water capacity |
Tap Hole Options
| 0,1,2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Supplied with a template to define the taps holes or overflow holes on the bath. Tap holes can then be drilled on site as required. |
|
The exterior of this bath can be painted, if you wish to paint yours then this can be done by using Acrylic based primers and paints, you should seek advice from the paint manufacturer for suitable products and process |
Compatible Products
| W4 - Exposed bath overflow, plug & chain |
| CW3 - P-trap |
| W21 - P-trap connection pipe |
| SP1149 | packaging for E6 |
| SP1312 | replacement inner box for E11 WHI (including product label) |
Downloads
- Instructions - PDF - E6 (English)
- Instructions - PDF - E11WHI (English)
- Instructions - PDF - E11WHI (French)
- Instructions - PDF - E6 (French)
-
2D CAD-File - DWG -
E6 E11 WHI
(E6 E11 CHR_LD.DWG)
-
2D Drawing - PDF -
E6 E11 WHI
(E6 E11 CHR_LD.pdf)
2D Drawing - PDF - E6 E11 WHI
-
3D DWG - File - DWG
-
E6 E11 WHI
(AJB-RL-1573-A.dwg)
-
3D DXF - File - DXF
-
E6 E11 WHI
(AJB-RL-1573-A.dxf)
-
3D IGS - File - IGS
-
E6 E11 WHI
(AJB-RL-1573-A.igs)
-
3D RFA BIMM Objects - File - RFA
-
E6 E11 WHI
(AJB-RL-1573-A.rfa)
