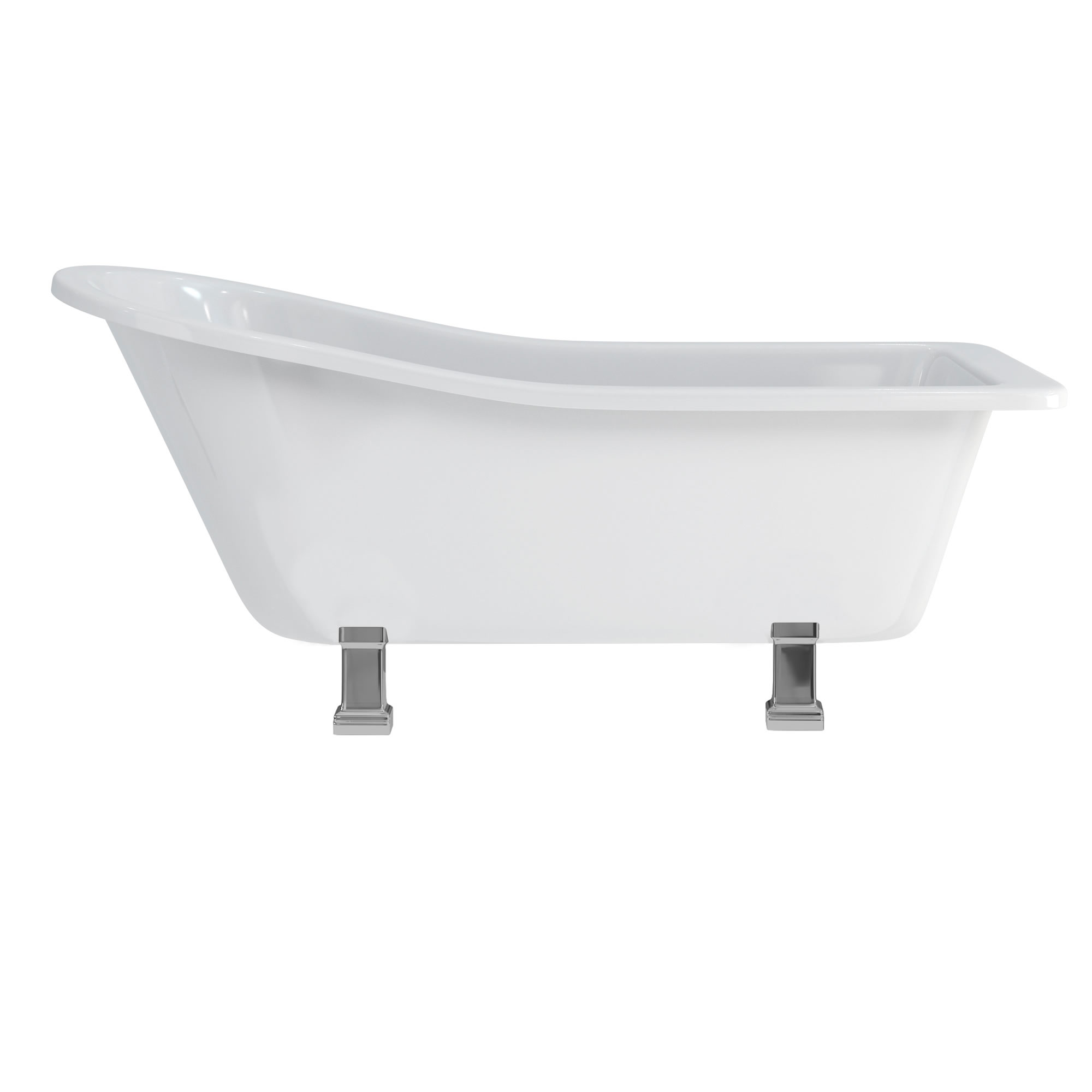

Harewood slipper bath with standard legs
Classical feet
Chrome
White
Black
Period feet
Chrome
White
Black
Traditional feet
White
Black
Chrome
As Shown
| E1 Harewood slipper bath |
| E9 CHR Period leg set |
Nett Weight
| E1 - bath - 46kg |
| E9 CHR - legs - 3kg |
Gross Weight Including Packaging
| E1 - bath - 48.5kg |
| E9 CHR - legs - 3.4kg |
Packed Dimension
| E1 - 1760 x 790 x 685 = 0.9524 m3 |
| E9 CHR - 210 x 210 x 210 = 0.0093 m3 |
Bath water capacity
| 125 litres displaced water capacity |
Tap Hole Options
| 0,1,2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Supplied with a template to define the taps holes or overflow holes on the bath. Tap holes can then be drilled on site as required. |
|
The exterior of this bath can be painted, if you wish to paint yours then this can be done by using Acrylic based primers and paints, you should seek advice from the paint manufacturer for suitable products and process |
Compatible Products
| W4 - Exposed bath overflow, plug & chain |
| CW3 - P-trap |
| W21 - P-trap connection pipe |
Downloads
- Instructions - PDF - E1 (English)
- Instructions - PDF - E9 CHR (English)
- Instructions - PDF - E9 CHR (French)
- Instructions - PDF - E1 (French)
-
2D CAD-File - DWG -
E1 E9 CHR
(E1 E9 CHR_LD.DWG)
-

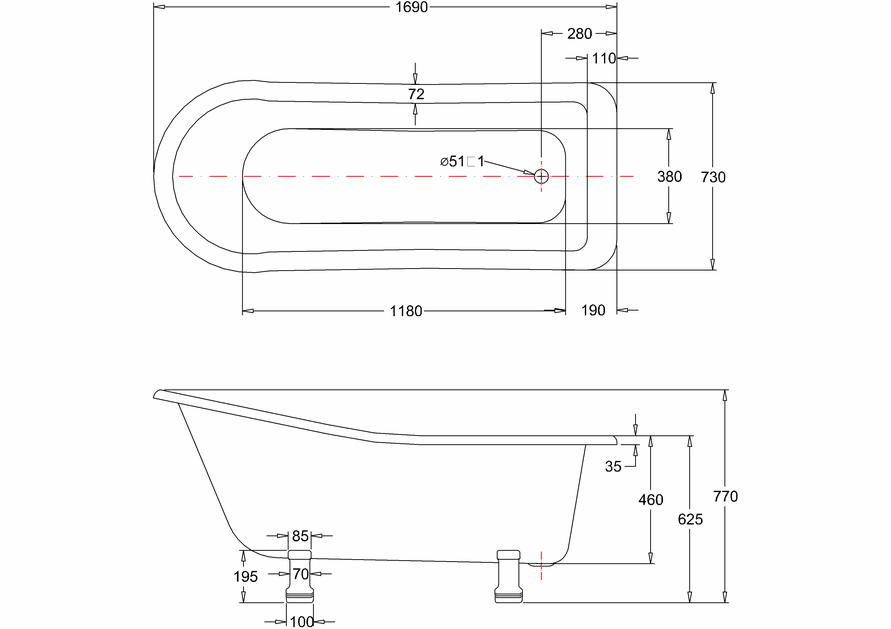

2D Drawing - PDF -
E1 E9 CHR
(E1 E9 CHR_LD.pdf)
2D Drawing - PDF - E1 E9 CHR
-
3D DWG - File - DWG
-
E1 E9 CHR
(AJB-RL-1690-A.dwg)
-
3D DXF - File - DXF
-
E1 E9 CHR
(AJB-RL-1690-A.dxf)
-
3D IGS - File - IGS
-
E1 E9 CHR
(AJB-RL-1690-A.igs)
-
3D RFA BIMM Objects - File - RFA
-
E1 E9 CHR
(AJB-RL-1690-A.rfa)
