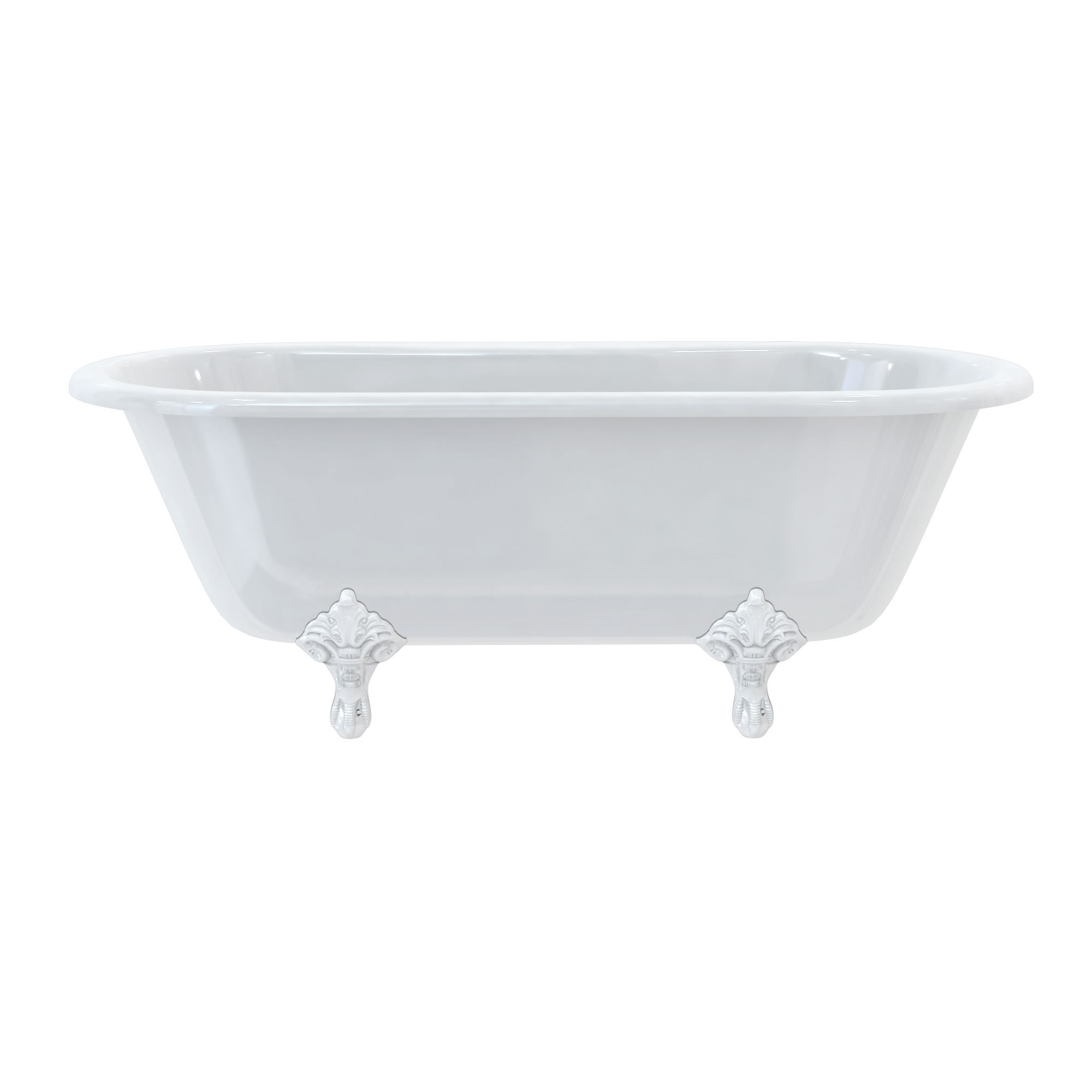

Windsor double ended 170cm bath with standard legs
Classical feet
Chrome
White
Black
Period feet
Chrome
White
Black
Traditional feet
White
Black
Chrome
As Shown
| E3 Windsor double ended bath |
| E11WHI Tradtional leg set |
Material
| E3 - bath - Acrylic |
| E11WHI - legs - 0 |
Nett Weight
| E3 - bath - 42kg |
| E11WHI - legs - 3.2kg |
Gross Weight Including Packaging
| E3 - bath - 44.5kg |
| E11WHI - legs - 3.9kg |
Packed Dimension
| E3 - 1760 x 790 x 650 = 0.9038 m3 |
| E11WHI - 340 x 340 x 230 = 0.0266 m3 |
Bath water capacity
| 130 litres displaced water capacity |
Tap Hole Options
| 0,1,2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
The exterior of this bath can be painted, if you wish to paint yours then this can be done by using Acrylic based primers and paints, you should seek advice from the paint manufacturer for suitable products and process |
|
Supplied with a template to define the taps holes or overflow holes on the bath. Tap holes can then be drilled on site as required. |
Compatible Products
| W2 - Overflow filler for double ended bath |
| W4 - Exposed bath overflow, plug & chain |
| CW3 - P-trap |
| W21 - P-trap connection pipe |
| CW6 - Exposed bath overflow, click-clack waste |
| SP1705 | completed packing for E3 bath (including labels) |
| SP1312 | replacement inner box for E11 WHI (including product label) |
Downloads
- Instructions - PDF - E3 (English)
- Instructions - PDF - E11WHI (English)
- Instructions - PDF - E11WHI (French)
- Instructions - PDF - E3 (French)
-
2D CAD-File - DWG -
E3 E11 WHI
(E3 E11 CHR_LD.DWG)
-
2D Drawing - PDF -
E3 E11 WHI
(E3 E11 CHR_LD.pdf)
2D Drawing - PDF - E3 E11 WHI
-
3D DWG - File - DWG
-
E3 E11 WHI
(AJB-RL-1705-A.dwg)
-
3D DXF - File - DXF
-
E3 E11 WHI
(AJB-RL-1705-A.dxf)
-
3D IGS - File - IGS
-
E3 E11 WHI
(AJB-RL-1705-A.igs)
-
3D RFA BIMM Objects - File - RFA
-
E3 E11 WHI
(AJB-RL-1705-A.rfa)
