Berkeley radiator
Product Options
finish
|
Chrome
|
Gold
|

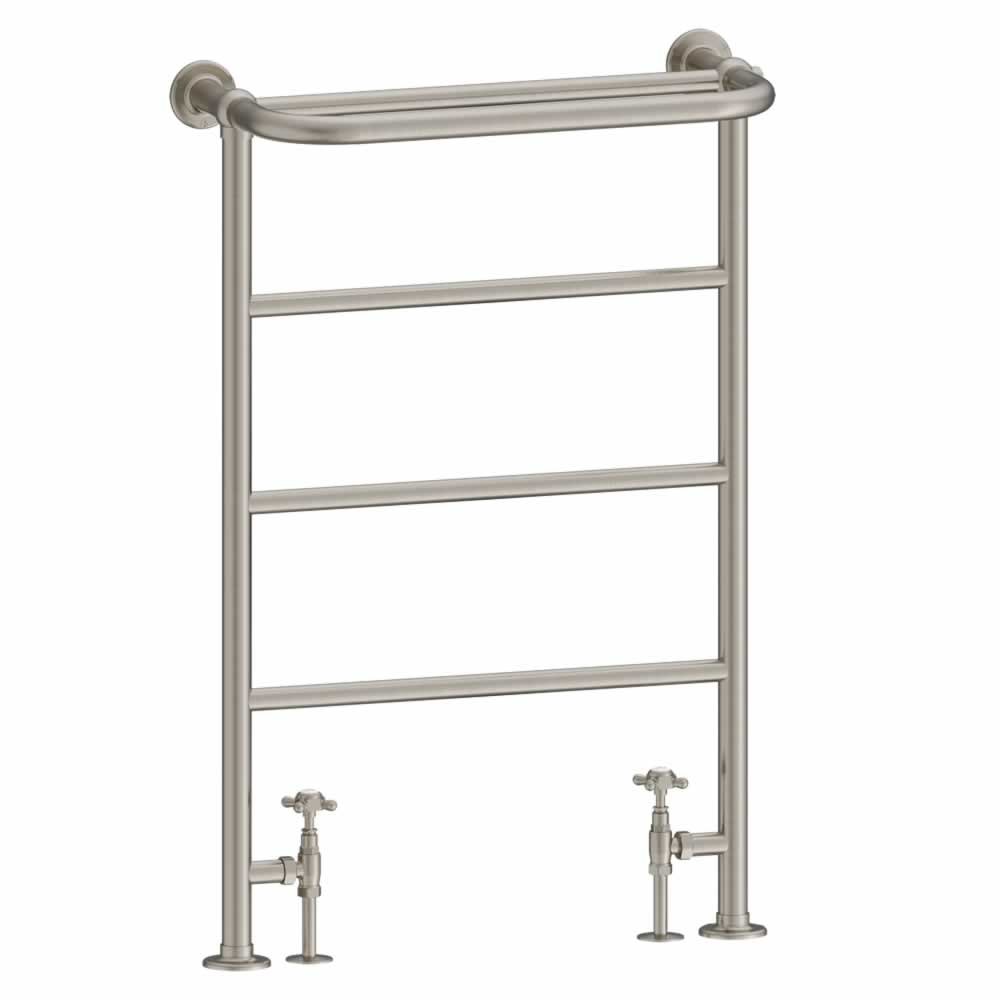

Brushed Nickel
|
As Shown
| R4CHR − |

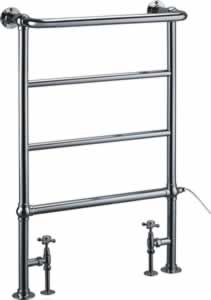

shown with the summer heating kit
Guarantee
|
5 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 442-1:2015 |
|
BS EN 442-2:2015 |
|
BS EN 248:2002 |
Additional Information
|
Distance from wall to the rail is 110mm. |
|
for technical information on the summer heating kit please refer to the summer heating kit section |
|
Fill the radiator approximately 90% (2.2L) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system) |
|
Includes all brackets and fixings. |
|
High quality chrome plated finish. |
|
Output:819 BTUs/180 watts (△T=50℃) |
|
Valves are required. These are not included. |
|
Diameter of tubes is 32mm. |
|
Designed to be plumbed into your central heating system. |
|
Operating pressure up to 8 bar.(Certified by BEN N.L) |
|
Maximum working temperature:95℃ |
|
420mm plumbing pipe centers |
Compatible Products
| R6 CHR - Angled radiator valves chrome |
| BUR8 - 100W electric heating kit for for Berkeley |
| SP801 | air valve for Burlington radiators |
| SP1185 | box for R4 CHR |
| SP137 | complete set of brackets, fixings for R1 CHR, R2 CHR, R4 CHR |
Downloads
-
2D CAD-File - DWG -
R4 CHR
(R4_Berkeley_20210802.dwg)
-

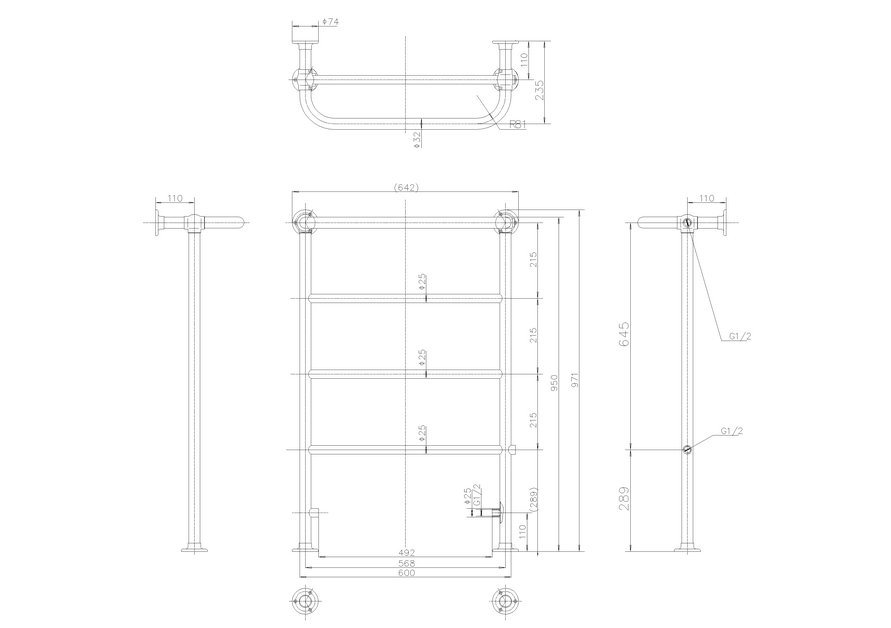

2D Drawing - PDF -
R4 CHR
(R4_Berkeley_20210802.pdf)
2D Drawing - PDF - R4 CHR
-
3D DWG - File - DWG
-
R4 CHR
(R4.dwg)
-
3D DXF - File - DXF
-
R4 CHR
(R4.dxf)
-
3D RFA BIMM Objects - File - RFA
-
R4 CHR
(R4.rfa)
-
3D IGS - File - IGS
-
R4 CHR
(R4 CHR.igs)
