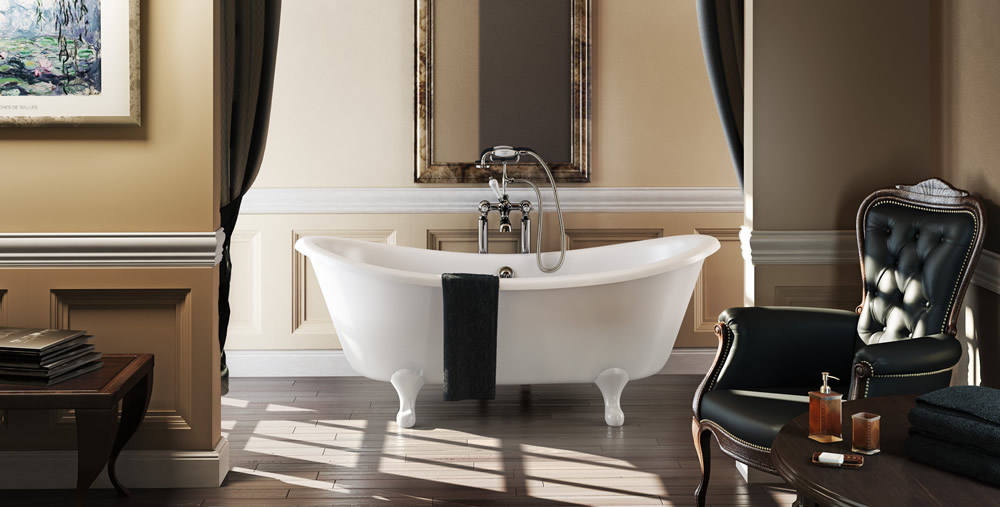

Bateau double ended 170cm bath with standard legs
Classical leg set in
Classical
Classical
Classical
Period feet
chrome
white
black
Traditional feet
black
white
chrome
As Shown
| T10F Bateau |
| E10WHI Classical leg set |
Material
| T10F - bath - Acrylic |
| E10WHI - legs - 0 |
Nett Weight
| T10F - bath - 50kg |
| E10WHI - legs - 2.7kg |
Gross Weight Including Packaging
| T10F - bath - 60kg |
| E10WHI - legs - 3.1kg |
Packed Dimension
| T10F - 1710 x 750 x 620 = 0.7952 m3 |
| E10WHI - 280 x 280 x 220 = 0.0172 m3 |
Bath water capacity
| 99 litres displaced water capacity |
Tap Hole Options
| 0 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow hole is predrilled |
|
Not suitable for rim-mounted taps |
|
The Bateau Bath is not compatible with the W8N Fire Hydrant waste. |
|
The exterior of this bath can be painted, if you wish to paint yours then this can be done by using Acrylic based primers and paints, you should seek advice from the paint manufacturer for suitable products and process |
Compatible Products
| W15 - Overflow bath filler single bath |
| W4 - Exposed bath overflow, plug & chain |
| CW3 - P-trap |
| W21 - P-trap connection pipe |
| CW2 - Click-clack bath waste unslotted with chrome cover |
| SP1376 | package for the bath T10F with product label |
Downloads
- Instructions - PDF - T10F (English)
- Instructions - PDF - E10WHI (English)
- Instructions - PDF - E10WHI (French)
- Instructions - PDF - T10F (French)
-
2D CAD-File - DWG -
T10F E10 WHI
(t10f-e10-whi_ld.dwg)
-
2D Drawing - PDF -
T10F E10 WHI
(t10f-e10-whi_ld.pdf)
2D Drawing - PDF - T10F E10 WHI
-
3D DWG - File - DWG
-
T10F E10 WHI
(Updated RE-1640 BATEAU_1 2-layer.DWG)
-
3D DXF - File - DXF
-
T10F E10 WHI
(Updated RE-1640 BATEAU_1 2-layer.dxf)
-
3D IGS - File - IGS
-
T10F E10 WHI
(Updated RE-1640 BATEAU_1 2-layer.igs)
-
3D RFA BIMM Objects - File - RFA
-
T10F E10 WHI
(Updated RE-1640 BATEAU_1 2-layer.rfa)
