Avantgarde Bath
Arc feet
chrome
white
black
Classic feet
chrome
white
black
Claw feet
white
black
chrome

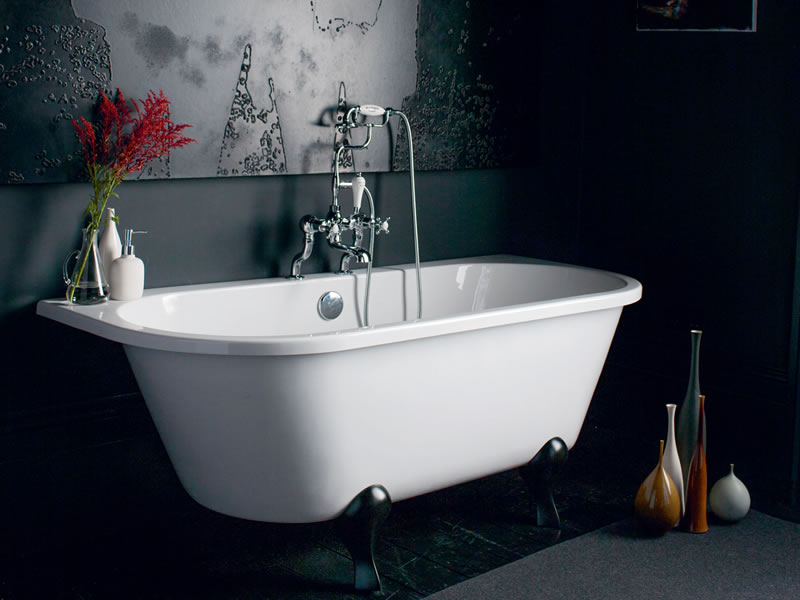

As Shown
| L2B Black arc legs |
| T12D Avantgarde back to wall 170 |
Nett Weight
| L2B - legs - 3.9kg |
| T12D - bath - 50kg |
Gross Weight Including Packaging
| L2B - legs - 4.6kg |
| T12D - bath - 52.5kg |
Packed Dimension
| L2B - 175 x 140 x 250 = 0.0061 m3 |
| T12D - 1710 x 760 x 495 = 0.6433 m3 |
Bath water capacity
| 158 litres displaced water capacity |
Tap Hole Options
| 0,1,2 (supplied un-drilled) |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Suitable for deck mounted taps but only on the interior corners. |
|
If using an overflow then always use a slotted bath waste. For baths without an overflow always use an un-slotted bath waste. |
|
Template is provided for the drilling of tap holes and overflow hole |
|
The exterior of this bath can be painted, if you wish to paint yours then this can be done by using Acrylic based primers and paints, you should seek advice from the paint manufacturer for suitable products and process |
Compatible Products
| W3 - Burlington bath overflow, plug and chain |
| CW3 - P-trap |
| W21 - P-trap connection pipe |
| CW2 - Click-clack bath waste unslotted with chrome cover |
| CW8 - Click-clack waste including overflow |
| SP25 | spares 2 for L10 and 3 colors of bath leg set (L1, L2, L3, E9, E10, E11) |
Downloads
- Instructions - PDF - L2B (English)
- Instructions - PDF - T12D (English)
- Instructions - PDF - L2B (French)
- Instructions - PDF - T12D (French)
-
2D CAD-File - DWG -
L2B T12D
(T12D - L2C L2W L2B.dwg)
-
2D Drawing - PDF -
L2B T12D
(T12D - L2C L2W L2B.pdf)
2D Drawing - PDF - L2B T12D
-
3D DWG - File - DWG
-
L2B T12D
(RL-1706 T12D.dwg)
-
3D DXF - File - DXF
-
L2B T12D
(RL-1706 T12D.dxf)
-
3D IGS - File - IGS
-
L2B T12D
(RL-1706 T12D.igs)
-
3D RFA BIMM Objects - File - RFA
-
L2B T12D
(RL-1706 T12D.rfa)
-
