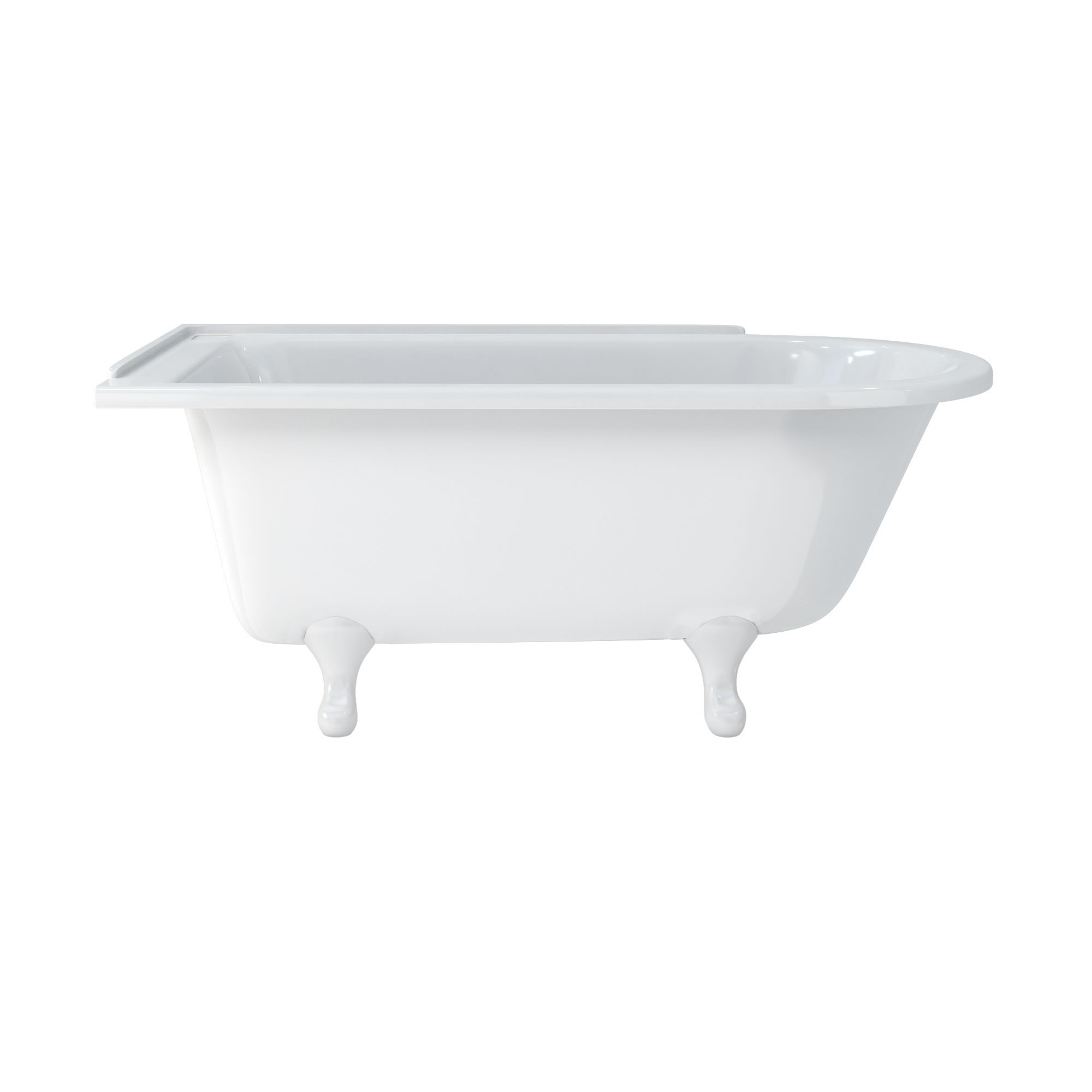

Hampton left handed bath - 150cm with standard legs
Classical legs
White
Black
Chrome
Period legs
Chrome
Black
White
Traditional legs
White
Black
Chrome
As Shown
| E10WHI Classical leg set |
| E20 Hampton shower bath (left) |
Material
| E10WHI - legs - 0 |
| E20 - bath - Acrylic |
Nett Weight
| E10WHI - legs - 2.7kg |
| E20 - bath - 43kg |
Gross Weight Including Packaging
| E10WHI - legs - 3.1kg |
| E20 - bath - 45.5kg |
Packed Dimension
| E10WHI - 280 x 280 x 220 = 0.0172 m3 |
| E20 - 1510 x 760 x 520 = 0.5968 m3 |
Bath water capacity
| 105 litres displaced water capacity |
Tap Hole Options
| 0,1,2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
This is a roll top designed especially for showering. The rim includes a tiling up-stand for waterproofing the showering corner. |
|
Supplied left or right handed. |
|
Supplied with a template to define the taps holes or overflow holes on the bath. Tap holes can then be drilled on site as required. |
Compatible Products
| W4 - Exposed bath overflow, plug & chain |
| CW3 - P-trap |
| W21 - P-trap connection pipe |
| CW2 - Click-clack bath waste unslotted with chrome cover |
| CW6 - Exposed bath overflow, click-clack waste |
| SP1898 | inner box of E20 bath with product label |
Downloads
- Instructions - PDF - E10WHI (English)
- Instructions - PDF - E20 (English)
- Instructions - PDF - E20 (French)
- Instructions - PDF - E10WHI (French)
-
2D CAD-File - DWG -
E10 WHI E20
(E20 - E10 CHR E10 WHI E10 BLA.dwg)
-
2D Drawing - PDF -
E10 WHI E20
(E20 - E10 CHR E10 WHI E10 BLA.pdf)
2D Drawing - PDF - E10 WHI E20
-
3D DWG - File - DWG
-
E10 WHI E20
(E10 E20.dwg)
-
3D RFA BIMM Objects - File - RFA
-
E10 WHI E20
(E10 E20.rfa)
