Hampton right handed bath - 150cm with standard legs
Classical legs
Chrome
Black
White
Period legs
Chrome
Black
White
Traditional legs
Black
White
Chrome

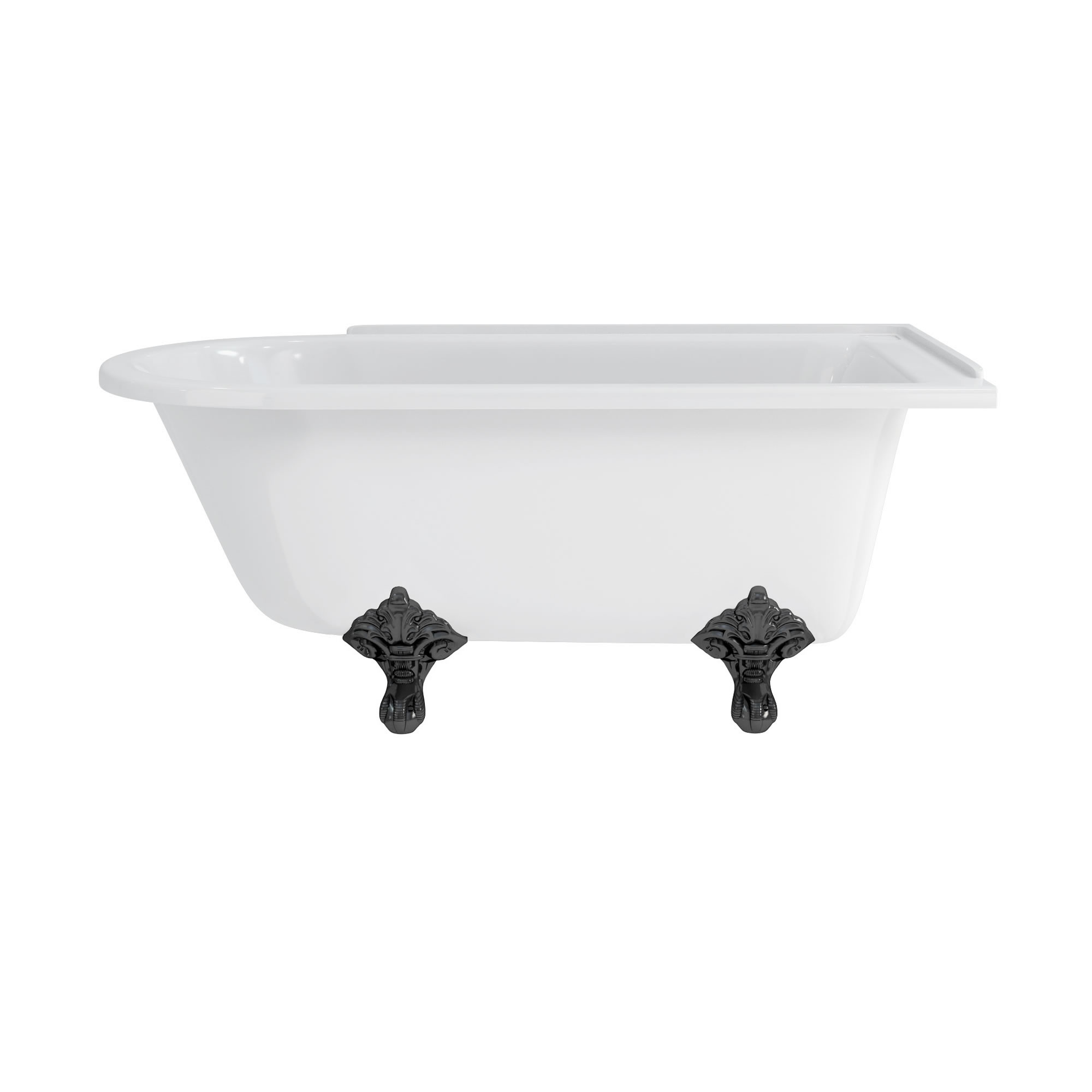

As Shown
| E21 Hampton shower bath (right) |
| E11BLA Traditional leg set |
Nett Weight
| E21 - bath - 43kg |
| E11BLA - legs - 3.2kg |
Gross Weight Including Packaging
| E21 - bath - 45.5kg |
| E11BLA - legs - 3.9kg |
Packed Dimension
| E21 - 1510 x 760 x 520 = 0.5968 m3 |
| E11BLA - 340 x 340 x 230 = 0.0266 m3 |
Bath water capacity
| 105 litres displaced water capacity |
Tap Hole Options
| 0,1,2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
This is a roll top designed especially for showering. The rim includes a tiling up-stand for waterproofing the showering corner. |
|
Supplied left or right handed. |
|
Supplied with a template to define the taps holes or overflow holes on the bath. Tap holes can then be drilled on site as required. |
Compatible Products
| W4 - Exposed bath overflow, plug & chain |
| CW3 - P-trap |
| W21 - P-trap connection pipe |
| CW2 - Click-clack bath waste unslotted with chrome cover |
| CW6 - Exposed bath overflow, click-clack waste |
| SP860 | inner box of E21 bath |
Downloads
- Instructions - PDF - E21 (English)
- Instructions - PDF - E11BLA (English)
- Instructions - PDF - E21 (French)
- Instructions - PDF - E11BLA (French)
-
2D CAD-File - DWG -
E11 BLA E21
(E21 - E11 CHR E11 WHI E11 BLA.dwg)
-
2D Drawing - PDF -
E11 BLA E21
(E21 - E11 CHR E11 WHI E11 BLA.pdf)
2D Drawing - PDF - E11 BLA E21
-
3D DWG - File - DWG
-
E11 BLA E21
(E11 E21.dwg)
-
3D RFA BIMM Objects - File - RFA
-
E11 BLA E21
(E11 E21.rfa)
