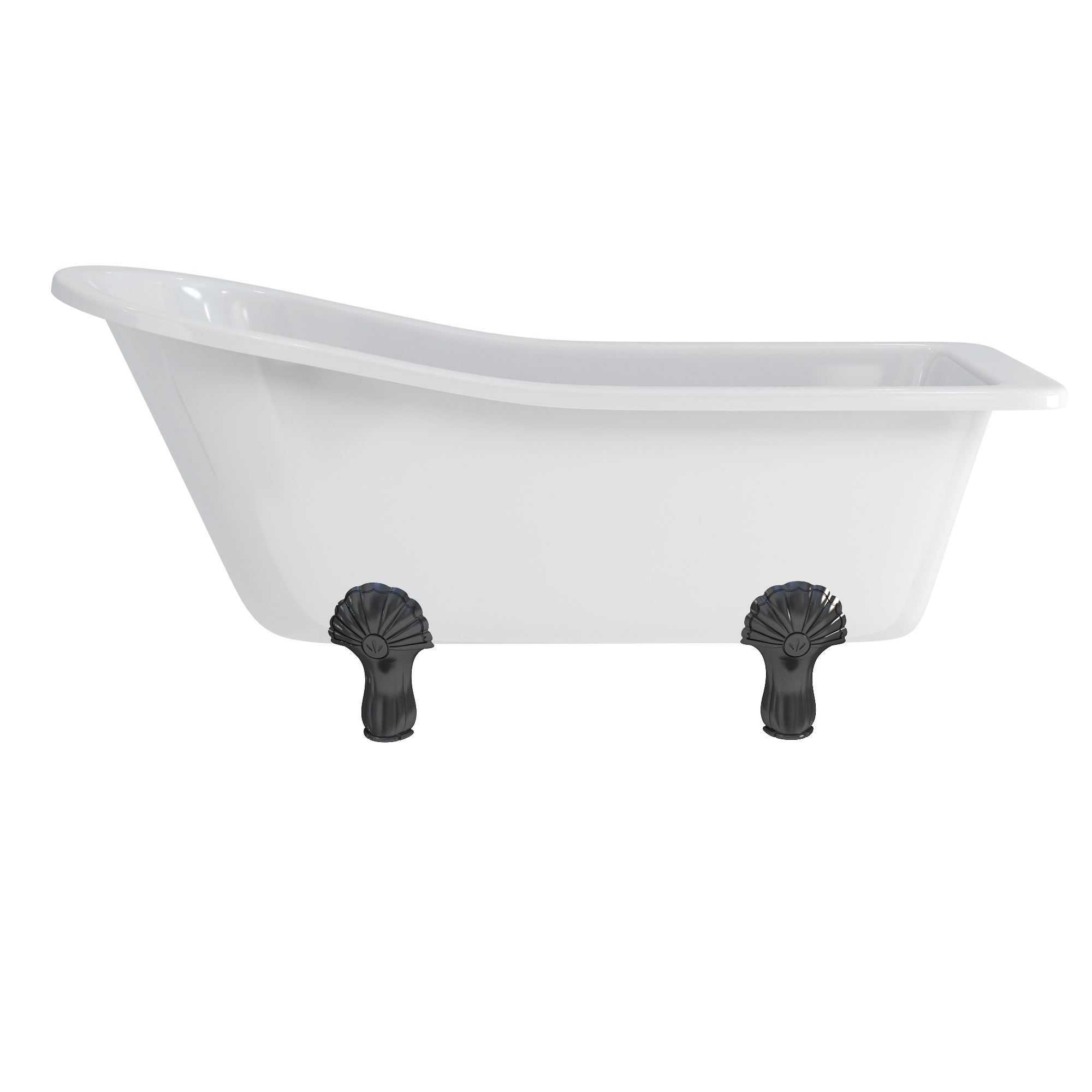

Harewood slipper bath with luxury legs
Luxury arc feet
Chrome
White
Black
Luxury classic feet
Chrome
White
Black
Luxury claw feet
White
Black
Chrome
As Shown
| L3B Black classic legs |
| E1 Harewood slipper bath |
Material
| L3B - legs - Aluminum |
| E1 - bath - Acrylic |
Nett Weight
| L3B - legs - 4.2kg |
| E1 - bath - 46kg |
Gross Weight Including Packaging
| L3B - legs - 5kg |
| E1 - bath - 48.5kg |
Packed Dimension
| L3B - 350 x 175 x 500 = 0.0306 m3 |
| E1 - 1760 x 790 x 685 = 0.9524 m3 |
Bath water capacity
| 125 litres displaced water capacity |
Tap Hole Options
| 0,1,2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
The exterior of this bath can be painted, if you wish to paint yours then this can be done by using Acrylic based primers and paints, you should seek advice from the paint manufacturer for suitable products and process |
|
Supplied with a template to define the taps holes or overflow holes on the bath. Tap holes can then be drilled on site as required. |
Compatible Products
| W4 - Exposed bath overflow, plug & chain |
| CW3 - P-trap |
| W21 - P-trap connection pipe |
Downloads
- Instructions - PDF - L3B (English)
- Instructions - PDF - E1 (English)
- Instructions - PDF - L3B (French)
- Instructions - PDF - E1 (French)
-
2D CAD-File - DWG -
E1 L3B
(E1 - L3C L3W L3B.dwg)
-

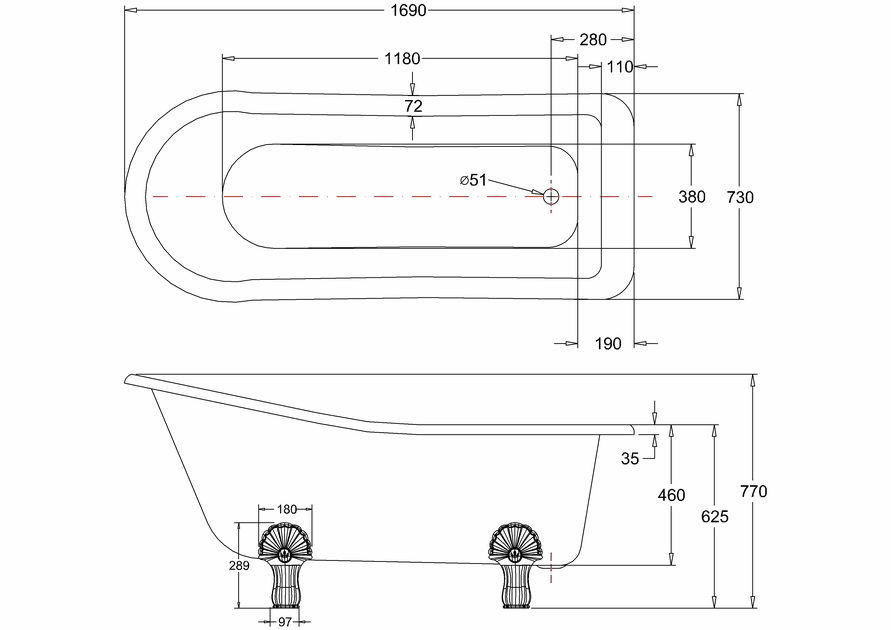

2D Drawing - PDF -
E1 L3B
(E1 - L3C L3W L3B.pdf)
2D Drawing - PDF - E1 L3B
-
3D DWG - File - DWG
-
E1 L3B
(AJB-RL-1690-A.dwg)
-
3D DXF - File - DXF
-
E1 L3B
(AJB-RL-1690-A.dxf)
-
3D IGS - File - IGS
-
E1 L3B
(AJB-RL-1690-A.igs)
-
3D RFA BIMM Objects - File - RFA
-
E1 L3B
(AJB-RL-1690-A.rfa)
