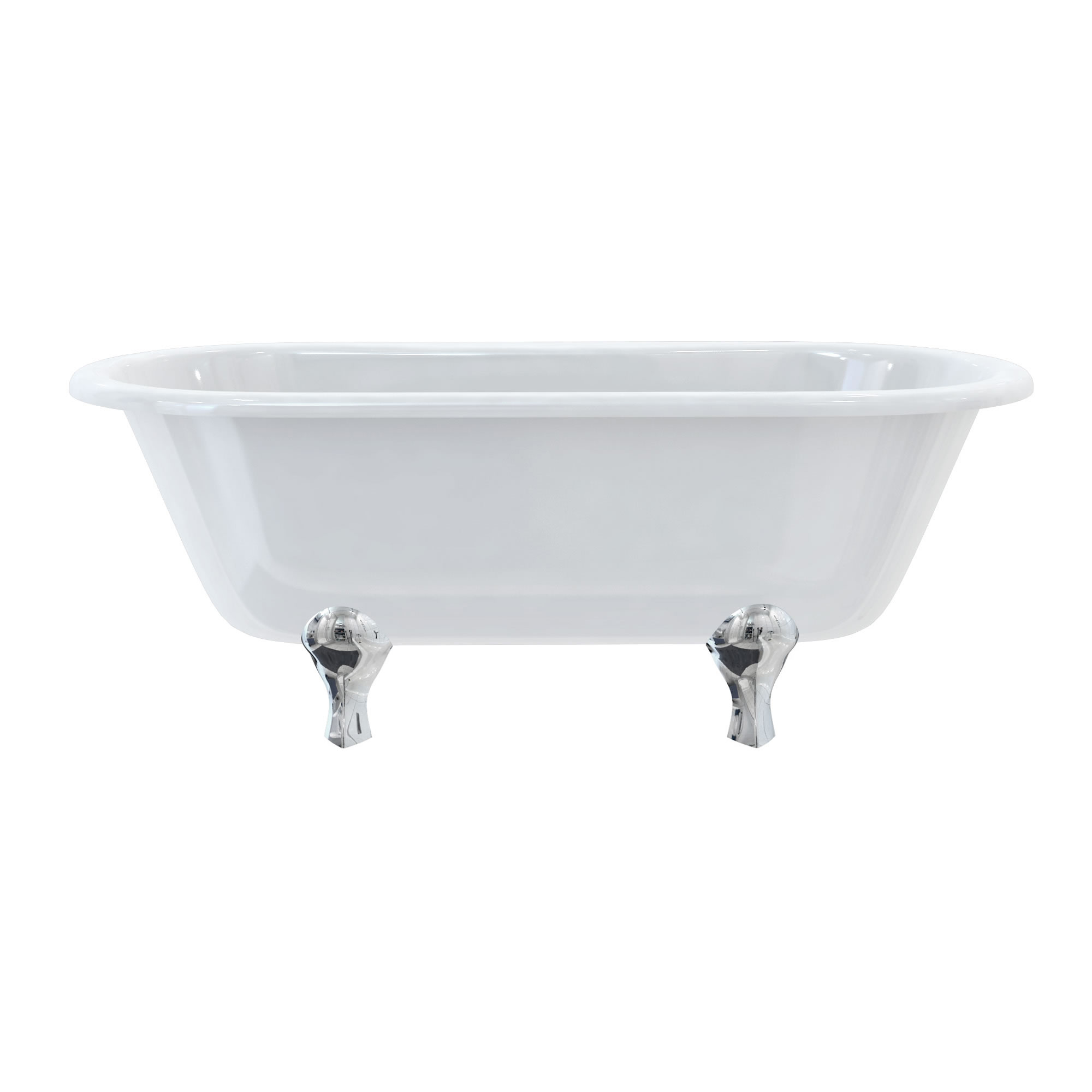

Windsor double ended 170cm bath with luxury legs
Luxury arc feet
Chrome
White
Black
Luxury classic feet
Chrome
White
Black
Luxury claw feet
White
Black
Chrome
As Shown
| L2C Chrome arc legs |
| E3 Windsor double ended bath |
Material
| L2C - legs - Aluminum |
| E3 - bath - Acrylic |
Nett Weight
| L2C - legs - 3.9kg |
| E3 - bath - 42kg |
Gross Weight Including Packaging
| L2C - legs - 4.6kg |
| E3 - bath - 44.5kg |
Packed Dimension
| L2C - 175 x 140 x 250 = 0.0061 m3 |
| E3 - 1760 x 790 x 650 = 0.9038 m3 |
Bath water capacity
| 130 litres displaced water capacity |
Tap Hole Options
| 0,1,2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Supplied with a template to define the taps holes or overflow holes on the bath. Tap holes can then be drilled on site as required. |
|
The exterior of this bath can be painted, if you wish to paint yours then this can be done by using Acrylic based primers and paints, you should seek advice from the paint manufacturer for suitable products and process |
Compatible Products
| W2 - Overflow filler for double ended bath |
| W4 - Exposed bath overflow, plug & chain |
| CW3 - P-trap |
| W21 - P-trap connection pipe |
| CW6 - Exposed bath overflow, click-clack waste |
| SP1705 | completed packing for E3 bath (including labels) |
| SP25 | spares 2 for L10 and 3 colors of bath leg set (L1, L2, L3, E9, E10, E11) |
Downloads
- Instructions - PDF - L2C (English)
- Instructions - PDF - E3 (English)
- Instructions - PDF - L2C (French)
- Instructions - PDF - E3 (French)
-
2D CAD-File - DWG -
E3 L2C
(E3 L2C_LD.dwg)
-

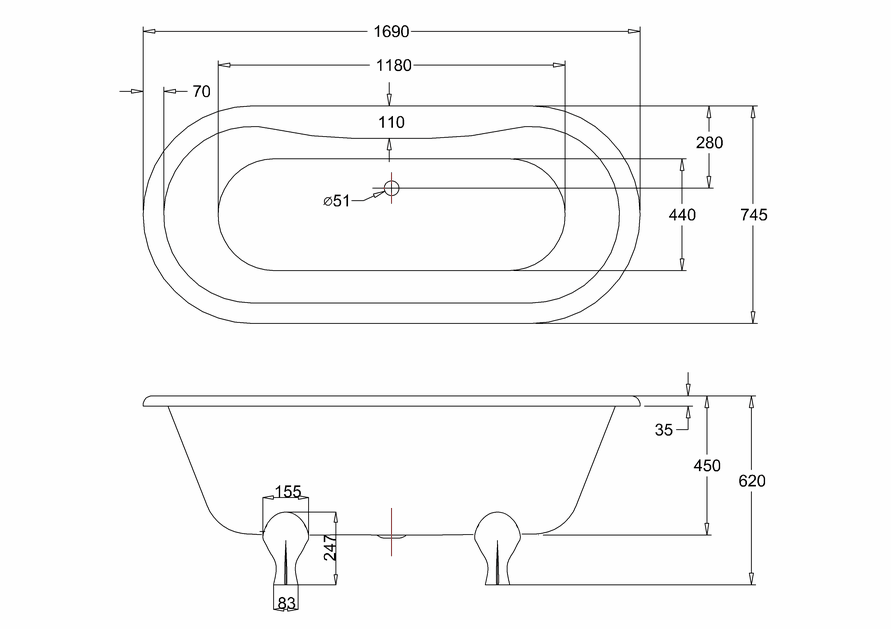

2D Drawing - PDF -
E3 L2C
(E3 L2C_LD.pdf)
2D Drawing - PDF - E3 L2C
-
3D DWG - File - DWG
-
E3 L2C
(AJB-RL-1705-A.dwg)
-
3D DXF - File - DXF
-
E3 L2C
(AJB-RL-1705-A.dxf)
-
3D IGS - File - IGS
-
E3 L2C
(AJB-RL-1705-A.igs)
-
3D RFA BIMM Objects - File - RFA
-
E3 L2C
(AJB-RL-1705-A.rfa)
