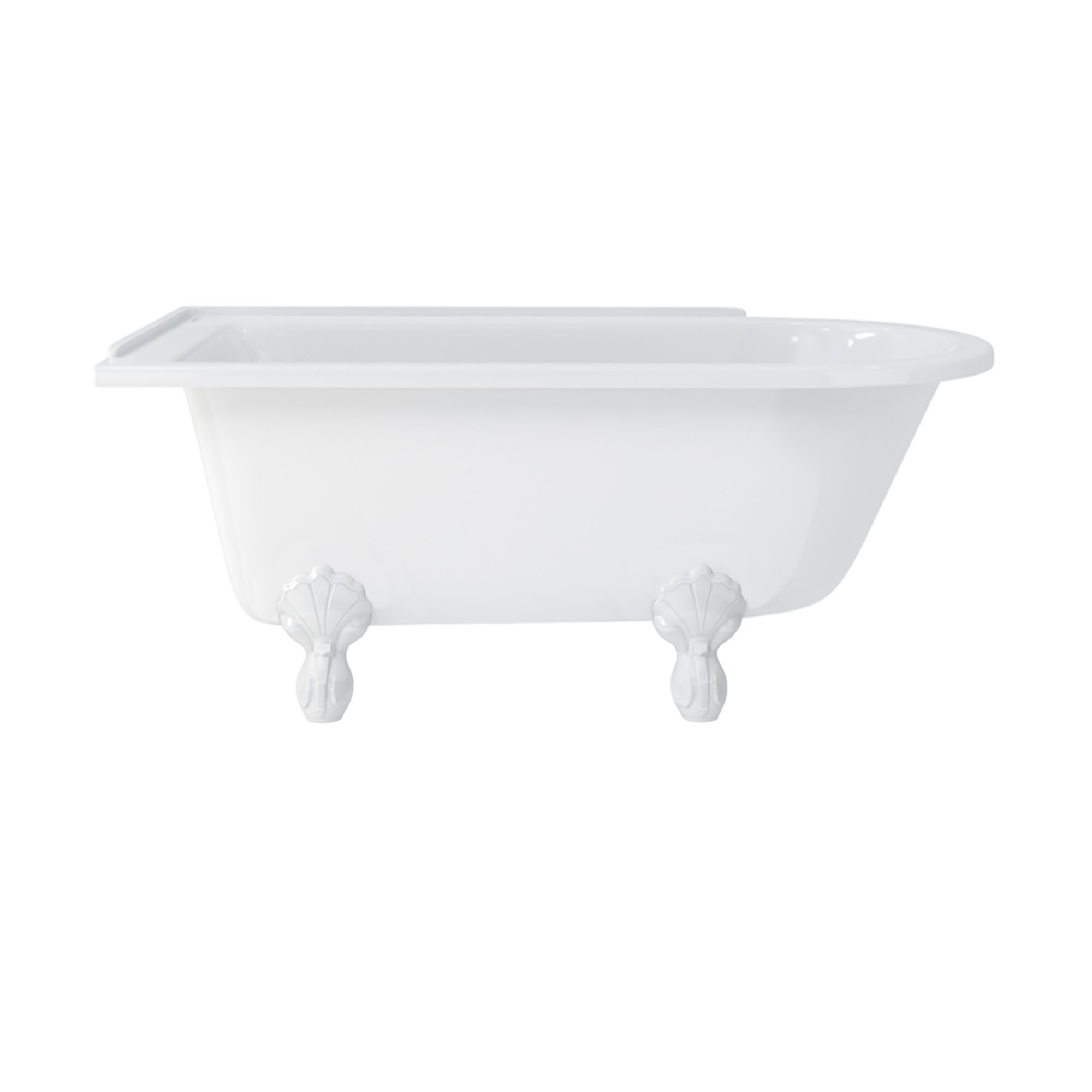

Hampton left handed bath - 150cm with luxury legs
Luxury arc feet
White
Black
Chrome
Luxury classic feet
White
Black
Chrome
Luxury claw feet
Black
White
Chrome

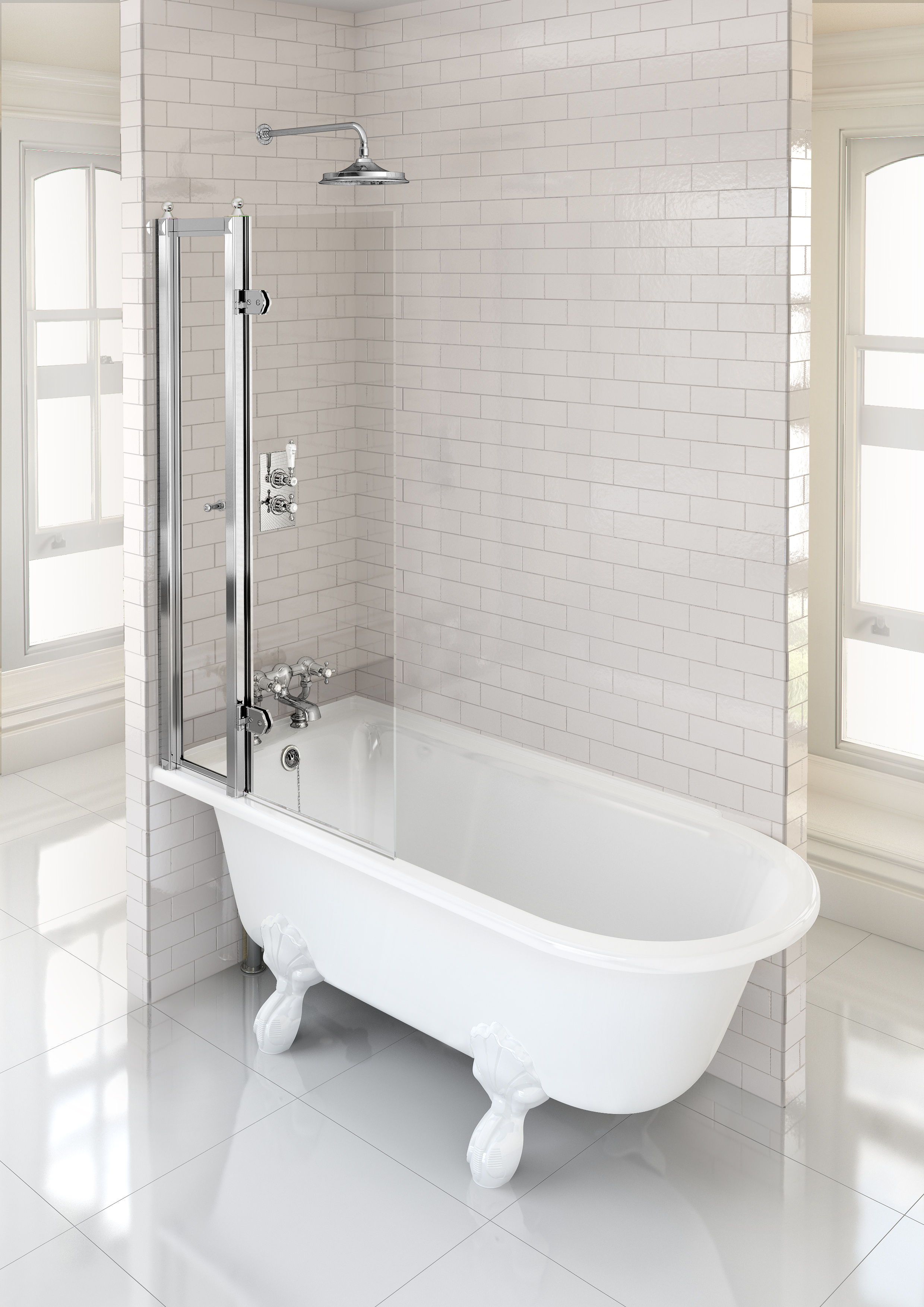

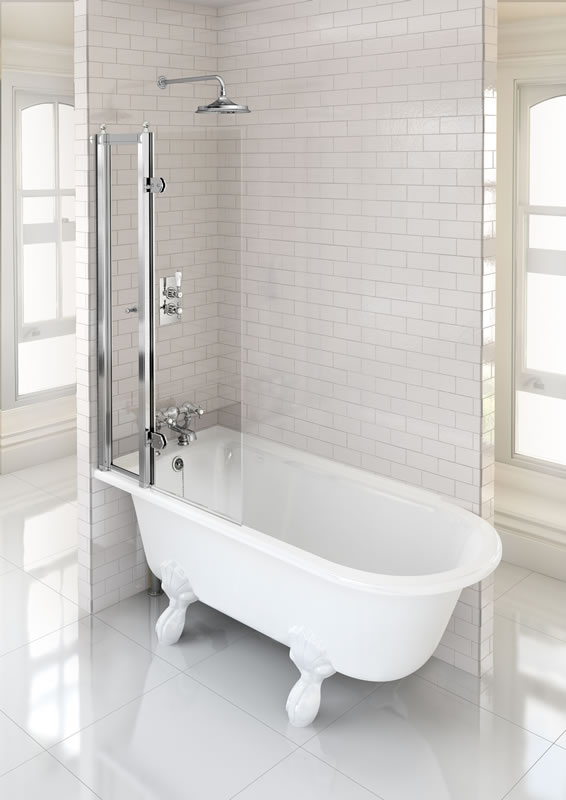

As Shown
| L1W White claw legs |
| E20 Hampton shower bath (left) |
Material
| L1W - legs - 0 |
| E20 - bath - Acrylic |
Nett Weight
| L1W - legs - 4.7kg |
| E20 - bath - 43kg |
Gross Weight Including Packaging
| L1W - legs - 5.6kg |
| E20 - bath - 45.5kg |
Packed Dimension
| L1W - 350 x 175 x 140 = 0.0086 m3 |
| E20 - 1510 x 760 x 520 = 0.5968 m3 |
Bath water capacity
| 105 litres displaced water capacity |
Tap Hole Options
| 0,1,2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
This is a roll top designed especially for showering. The rim includes a tiling up-stand for waterproofing the showering corner. |
|
Supplied left or right handed. |
|
Supplied with a template to define the taps holes or overflow holes on the bath. Tap holes can then be drilled on site as required. |
Compatible Products
| W4 - Exposed bath overflow, plug & chain |
| CW3 - P-trap |
| W21 - P-trap connection pipe |
| CW2 - Click-clack bath waste unslotted with chrome cover |
| CW6 - Exposed bath overflow, click-clack waste |
| SP1898 | inner box of E20 bath with product label |
| SP25 | spares 2 for L10 and 3 colors of bath leg set (L1, L2, L3, E9, E10, E11) |
Downloads
- Instructions - PDF - L1W (English)
- Instructions - PDF - E20 (English)
- Instructions - PDF - E20 (French)
- Instructions - PDF - L1W (French)
-
2D CAD-File - DWG -
L1W E20
(L1W E20_LD.dwg)
-

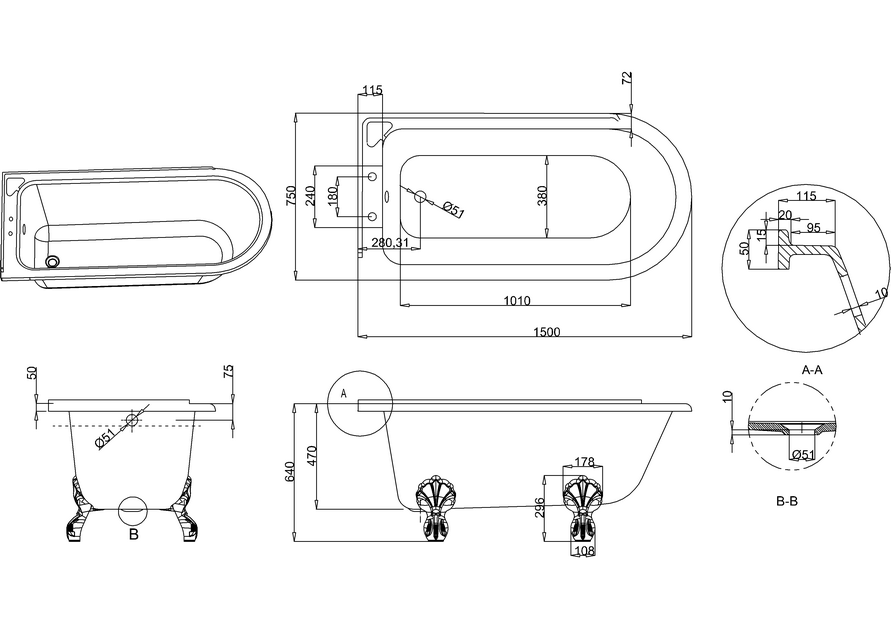

2D Drawing - PDF -
L1W E20
(L1W E20_LD.pdf)
2D Drawing - PDF - L1W E20
-
3D DWG - File - DWG
-
L1W E20
(1500HamptonbathLH.dwg)
-
3D DXF - File - DXF
-
L1W E20
(1500HamptonbathLH.dxf)
-
3D IGS - File - IGS
-
L1W E20
(1500HamptonbathLH.igs)
-
3D RFA BIMM Objects - File - RFA
-
L1W E20
(1500HamptonbathLH.rfa)
