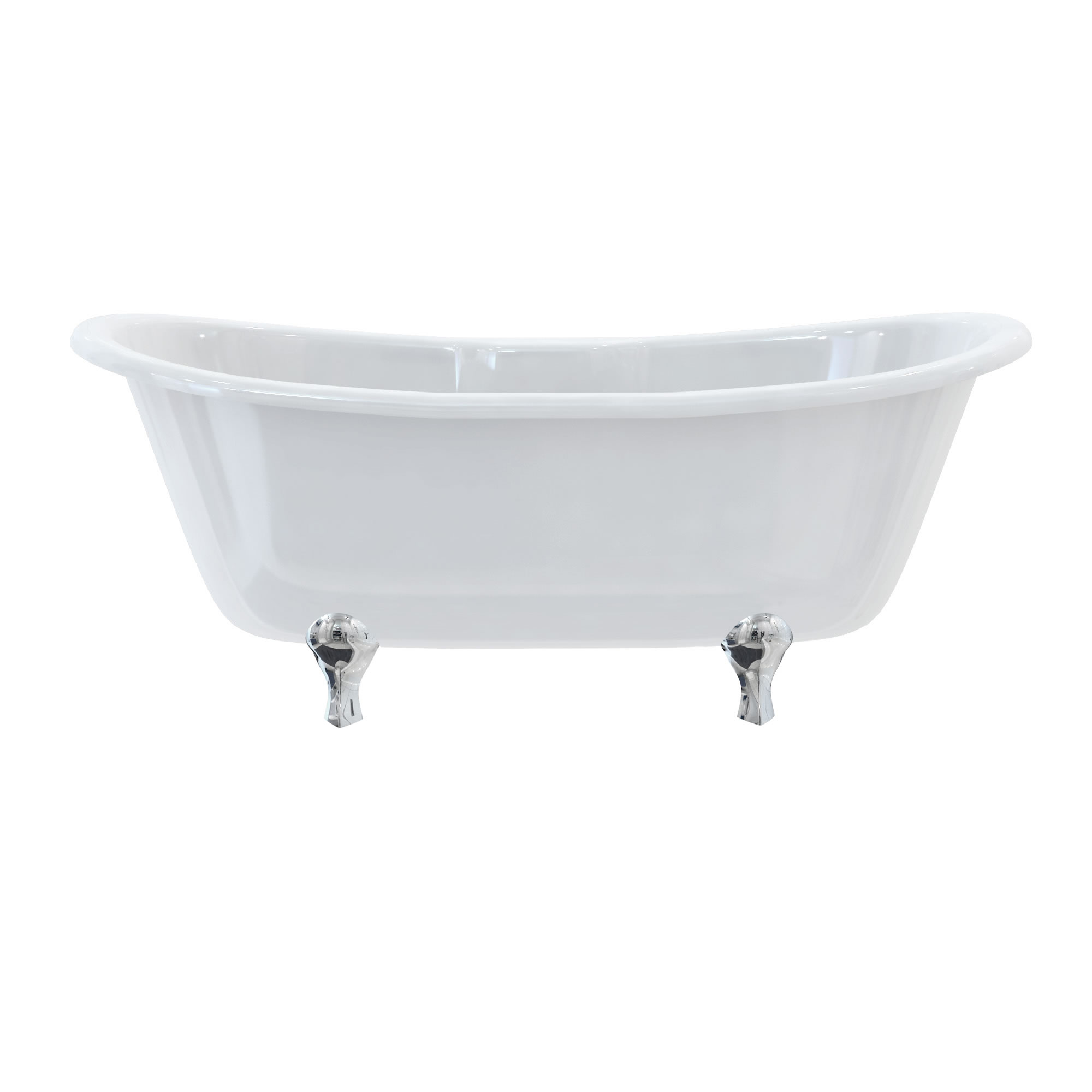

Bateau double ended 170cm bath with luxury legs
Arc feet
black
chrome
white
Classic feet
white
chrome
black
Claw feet
white
black
chrome
As Shown
| T10F Bateau |
| L2C Chrome arc legs |
Nett Weight
| T10F - bath - 50kg |
| L2C - legs - 3.9kg |
Gross Weight Including Packaging
| T10F - bath - 60kg |
| L2C - legs - 4.6kg |
Packed Dimension
| T10F - 1710 x 750 x 620 = 0.7952 m3 |
| L2C - 175 x 140 x 250 = 0.0061 m3 |
Bath water capacity
| 99 litres displaced water capacity |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow hole is predrilled |
|
The Bateau Bath is not compatible with the W8N Fire Hydrant waste. |
|
Not suitable for rim-mounted taps |
|
The exterior of this bath can be painted, if you wish to paint yours then this can be done by using Acrylic based primers and paints, you should seek advice from the paint manufacturer for suitable products and process |
Compatible Products
| W15 - Overflow bath filler single bath |
| W4 - Exposed bath overflow, plug & chain |
| CW3 - P-trap |
| W21 - P-trap connection pipe |
| CW2 - Click-clack bath waste unslotted with chrome cover |
| SP1376 | package for the bath T10F with product label |
| SP25 | spares 2 for L10 and 3 colors of bath leg set (L1, L2, L3, E9, E10, E11) |
Downloads
- Instructions - PDF - T10F (English)
- Instructions - PDF - L2C (English)
- Instructions - PDF - L2C (French)
- Instructions - PDF - T10F (French)
-
2D CAD-File - DWG -
L2C T10F
(T10F - L2C L2W L2B.dwg)
-

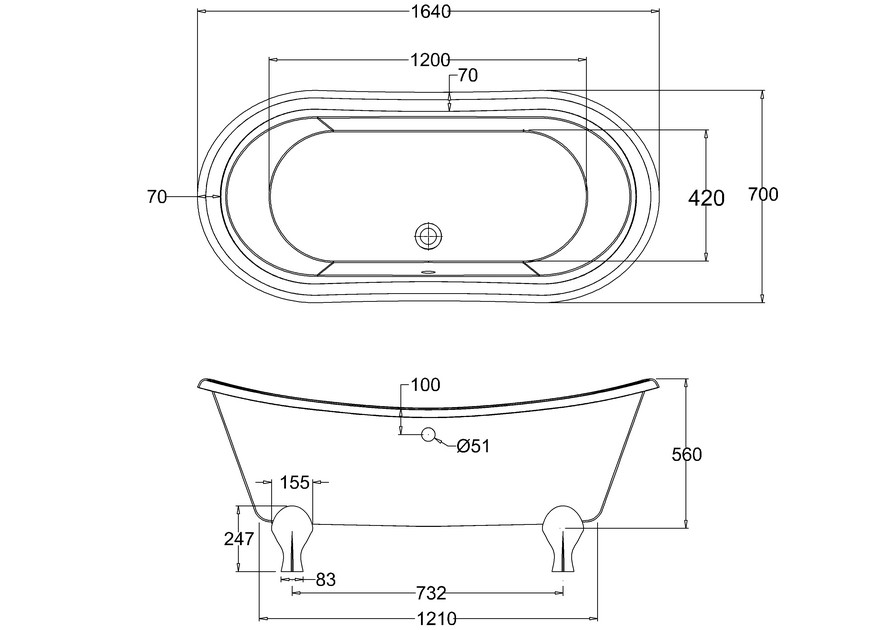

2D Drawing - PDF -
L2C T10F
(T10F - L2C L2W L2B.pdf)
2D Drawing - PDF - L2C T10F
-
3D DWG - File - DWG
-
L2C T10F
(Updated RE-1640 BATEAU_1 2-layer.DWG)
-
3D DXF - File - DXF
-
L2C T10F
(Updated RE-1640 BATEAU_1 2-layer.dxf)
-
3D IGS - File - IGS
-
L2C T10F
(Updated RE-1640 BATEAU_1 2-layer.igs)
-
3D RFA BIMM Objects - File - RFA
-
L2C T10F
(Updated RE-1640 BATEAU_1 2-layer.rfa)
