Burlington 5" basin taps
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options
Kensington Medici Regent basin tap 5 Chrome
Tap Head Options (Chrome Finish Shown)
Claremont Medici Regent basin tap 5" Claremont Anglesey Medici Regent basin tap 5" Anglesey Birkenhead Medici Regent basin tap 5" Birkenhead Handle_v2.jpg Kensington
Quarter turn options
qt_done.jpg quarter turn
Tap Base options
Kensington Medici basin tap 5 Standard base Kensington Medici Regent basin tap 5 Regent base
Indicies & lever finish
Kensington Regent basin tap 5 White Kensington Medici Regent basin tap 5 Medici Kensington Regent basin tap 5 Black
Alternate Text
As Shown
T4B_2 Regent small pair of tap bases
T6_QT Quarter turn basin pillar taps
T4 MED Kensington tap handles (pair) - chrome & medici
KER2-QT MED-QT  -  Combined product code
Colour
T4B_2 - regent tap base - Polished Chrome
T6_QT - tap - Polished Chrome
T4 MED - tap handle - Medici
Material
T4B_2 - regent tap base - Brass
T6_QT - tap - Brass
T4 MED - tap handle - Brass
Size
T4B_2 - 55 x 155 x 29mm
T6_QT - 160 x 148 x 120mm
T4 MED - 94 x 27 x 23.2mm
Nett Weight
T4B_2 - regent tap base - 0.38kg
T6_QT - tap - 1.32kg
T4 MED - tap handle - 0.29kg
Gross Weight Including Packaging
T4B_2 - regent tap base - 0.48kg
T6_QT - tap - 1.62kg
T4 MED - tap handle - 0.34kg
Packed Dimension
T4B_2 - 70 x 65 x 65 = 0.0003 m3
T6_QT - 325 x 195 x 55 = 0.0035 m3
T4 MED - 105 x 70 x 35 = 0.0003 m3
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
Additional Information
Gold and Nickel finish is only available with the quarter turn option
Gold and Nickel finish is only available with the Claremont handle
Gold and Nickel finish is only available with white indicies
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 8  9.9  11.7  14.9  17  n/a  n/a
Spout (aerator) 4.3  7.4  8.5  10.1  11.6  n/a  n/a
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP449 flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP91 G1, 2 fixing nut and washer for all finishes products of T5, T5-QT, T5-QT GOLD, T5-QT NKL, T6, T6-QT, T16, T16-QT, STA12-QT
SP72 T5, T6, T16 1, 2 and T7 3, 4 quarter turn COLD cartridge
SP71 T5, T6, T16 1, 2 and T7 3, 4 quarter turn HOT cartridge
SP1093 thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
Downloads
  • Instructions - PDF - T6_QT (English)
  • Instructions - PDF - T4 MED (English)
  • Instructions - PDF - T6_QT (French)
  • Instructions - PDF - T4 MED (French)
  • 3D DWG - File - DWG  -  KER2-QT MED-QT (T6.dwg)
  • 3D DXF - File - DXF  -  KER2-QT MED-QT (T6.dxf)
  • 3D IGS - File - IGS  -  KER2-QT MED-QT (T6.igs)
  • 3D DWG - File - DWG - T6_QT (T6.dwg)
  • 3D DXF - File - DXF - T6_QT (T6.dxf)
  • 3D IGS - File - IGS - T6_QT (T6.igs)
  • 3D DWG - File - DWG - T4B_2 (T4B-2.dwg)
  • 3D DXF - File - DXF - T4B_2 (T4B-2.dxf)
  • 3D IGS - File - IGS - T4B_2 (T4B-2.igs)
  • 3D IGS - File - IGS - T4 MED (t4.igs)
  • Product image 1 - jpg

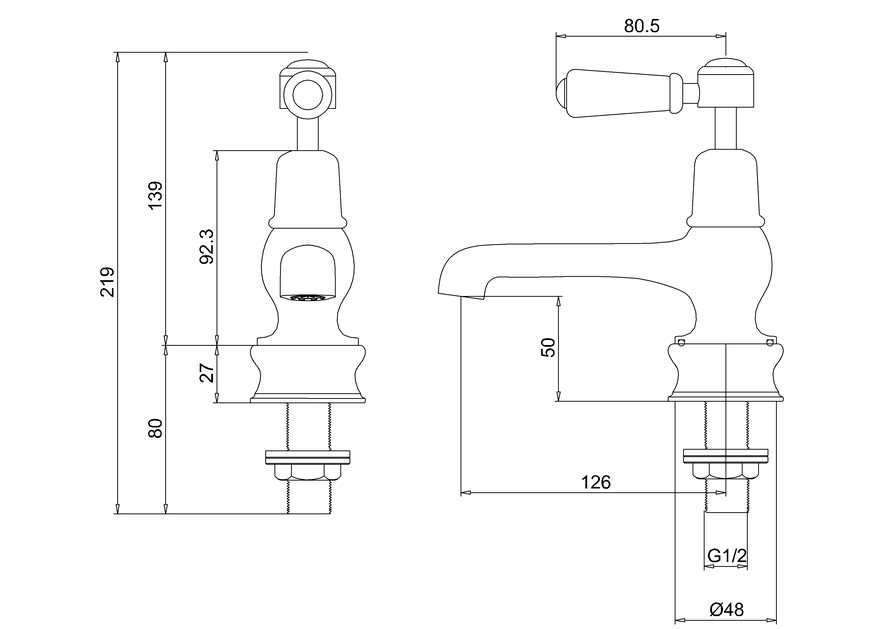

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
