Burlington 5" basin taps
Product Options
Finish Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
|
Chrome
|
Claremont
|
Anglesey
|
Birkenhead
|
Kensington
|
quarter turn
|
tradional screw-down
|
Standard base
|
Regent base
|
White
|
Medici
|
Black
|
As Shown
| T6_QT Quarter turn basin pillar taps |
| T3 Birkenhead tap handles |
| T4B_2 Regent small pair of tap bases |
| ME8 Medici hot/cold tap indices |
| BIR2 MED-QT - Combined product code |
Colour
| T6_QT - tap - Polished Chrome |
| T3 - tap handle - Polished Chrome |
| T4B_2 - regent tap base - Polished Chrome |
| ME8 - indice - medici |
Material
| T6_QT - tap - Brass |
| T3 - tap handle - Brass |
| T4B_2 - regent tap base - Brass |
| ME8 - indice - ceramic |
Size
| T6_QT - 160 x 148 x 120mm |
| T3 - 65 x 65 x 23.3mm |
| T4B_2 - 55 x 155 x 29mm |
| ME8 - 21.4 x 21.4 x 5.6mm |
Nett Weight
| T6_QT - tap - 1.32kg |
| T3 - tap handle - 0.175kg |
| T4B_2 - regent tap base - 0.38kg |
| ME8 - indice - 0.008kg |
Gross Weight Including Packaging
| T6_QT - tap - 1.62kg |
| T3 - tap handle - 0.2kg |
| T4B_2 - regent tap base - 0.48kg |
| ME8 - indice - 0.02kg |
Packed Dimension
| T6_QT - 325 x 195 x 55 = 0.0035 m3 |
| T3 - 70 x 65 x 65 = 0.0003 m3 |
| T4B_2 - 70 x 65 x 65 = 0.0003 m3 |
| ME8 - 55 x 54 x 55 = 0.0002 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Gold and Nickel finish is only available with the quarter turn option |
|
Gold and Nickel finish is only available with the Claremont handle |
|
Gold and Nickel finish is only available with white indicies |
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 12.7 | 13.8 | 17.6 | 22.2 | 22.6 | n/a | n/a |
| Spout (aerator) | 4.8 | 7.9 | 9.1 | 10.5 | 11.6 | n/a | n/a |
| SP523 | chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps |
| SP931 | decorative cap of Burlington tap handles - cold |
| SP930 | decorative cap of Burlington tap handles - hot |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP449 | flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23 |
| SP91 | G1, 2 fixing nut and washer for all finishes products of T5, T5-QT, T5-QT GOLD, T5-QT NKL, T6, T6-QT, T16, T16-QT, STA12-QT |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
| SP72 | T5, T6, T16 1, 2 and T7 3, 4 quarter turn COLD cartridge |
| SP71 | T5, T6, T16 1, 2 and T7 3, 4 quarter turn HOT cartridge |
| SP99 | the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3 |
| SP1093 | thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT |
Downloads
-
2D CAD-File - DWG -
BIR2 MED-QT
(BIR2_LD.dwg)
-

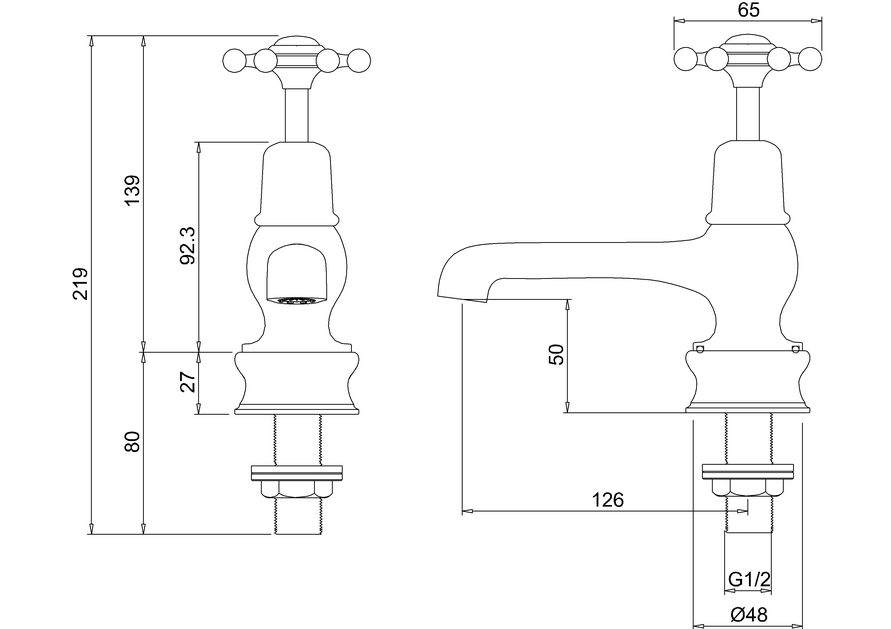

2D Drawing - PDF -
BIR2 MED-QT
(BIR2_LD.pdf)
2D Drawing - PDF - BIR2 MED-QT
-
3D RFA BIMM Objects - File - RFA
-
BIR2 MED-QT
(T6_T3_T4B-2.rfa)
- 3D DWG - File - DWG - T6_QT (T6.dwg)
- 3D DXF - File - DXF - T6_QT (T6.dxf)
- 3D IGS - File - IGS - T6_QT (T6.igs)
- 3D DWG - File - DWG - T4B_2 (T4B-2.dwg)
- 3D DWG - File - DWG - T3 (T3.dwg)
- 3D DXF - File - DXF - T3 (T3.dxf)
- 3D IGS - File - IGS - T3 (T3.igs)
- 3D DXF - File - DXF - T4B_2 (T4B-2.dxf)
- 3D IGS - File - IGS - T4B_2 (T4B-2.igs)
