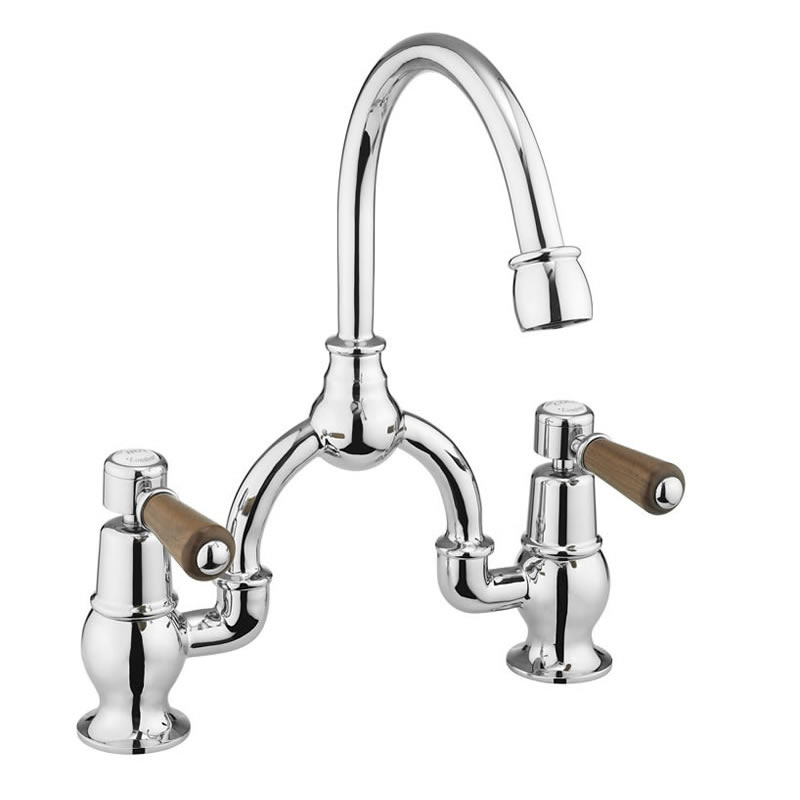

Burlington arch basin mixer with curved spout (200 mm tap centers)
asaq2.Model.Web_product_new?.web_name
Product Options
Tap Head Options (Chrome Finish Shown)
Claremont Medici 2 tap hole arch mixer with curved spout (200mm centres) Claremont Anglesey Medici 2 tap hole arch mixer with curved spout (200mm centres) Anglesey Birkenhead Medici 2 tap hole arch mixer with curved spout (200mm centres) Birkenhead Handle_v2.jpg Kensington
Quarter turn options
qt_done.jpg quarter turn
Tap Base options
Kensington Medici 2 tap hole arch mixer with curved spout (200mm centres) Standard base Kensington Medici Regent 2 tap hole arch mixer with curved spout (200mm centres) Regent base
Indicies & lever finish
2 tap hole arch mixer with curved spout (200mm centres) White Kensington Medici 2 tap hole arch mixer with curved spout (200mm centres) Medici 2 tap hole arch mixer with curved spout (200mm centres) Black Kensington Walnut 2 Tap Hole Arch Mixer with Curved Spout (200mm centres) White & Walnut
Alternate Text
As Shown
T24-QT Quarter turn arch mixer with curved spout 2TH
T4 MED Kensington tap handles (pair) - chrome & medici
KE27-QT MED-QT  -  Combined product code
Colour
T24-QT - tap - Polished Chrome
T4 MED - tap handle - Medici
Material
T24-QT - tap - Brass
T4 MED - tap handle - Brass
Size
T24-QT - 187 x 248 x 300.2mm
T4 MED - 94 x 27 x 23.2mm
Nett Weight
T24-QT - tap - 1.72kg
T4 MED - tap handle - 0.29kg
Gross Weight Including Packaging
T24-QT - tap - 2.2kg
T4 MED - tap handle - 0.34kg
Packed Dimension
T24-QT - 430 x 305 x 55 = 0.0072 m3
T4 MED - 105 x 70 x 35 = 0.0003 m3
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Supplied without a basin waste
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 6.4  9.2  17.6  24  30  n/a  n/a
Spout (aerator) 1.4  6.1  10.6  16.4  20.6  n/a  n/a
SP70 3, 4 quarter turn COLD cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT
SP69 3, 4 quarter turn HOT cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT
SP162 aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548 aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP1547 flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP92 G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT
SP1006 o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP1093 thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
Downloads
  • Instructions - PDF - T24-QT (English)
  • Instructions - PDF - T4 MED (English)
  • Instructions - PDF - T24-QT (French)
  • Instructions - PDF - T4 MED (French)
  • 3D DWG - File - DWG  -  KE27-QT MED-QT (T24.dwg)
  • 3D DXF - File - DXF  -  KE27-QT MED-QT (T24.dxf)
  • 3D IGS - File - IGS  -  KE27-QT MED-QT (T24.igs)
  • 3D DWG - File - DWG - T24-QT (T24.dwg)
  • 3D DXF - File - DXF - T24-QT (T24.dxf)
  • 3D IGS - File - IGS - T24-QT (T24.igs)
  • 3D IGS - File - IGS - T4 MED (t4.igs)
  • Product image 1 - jpg

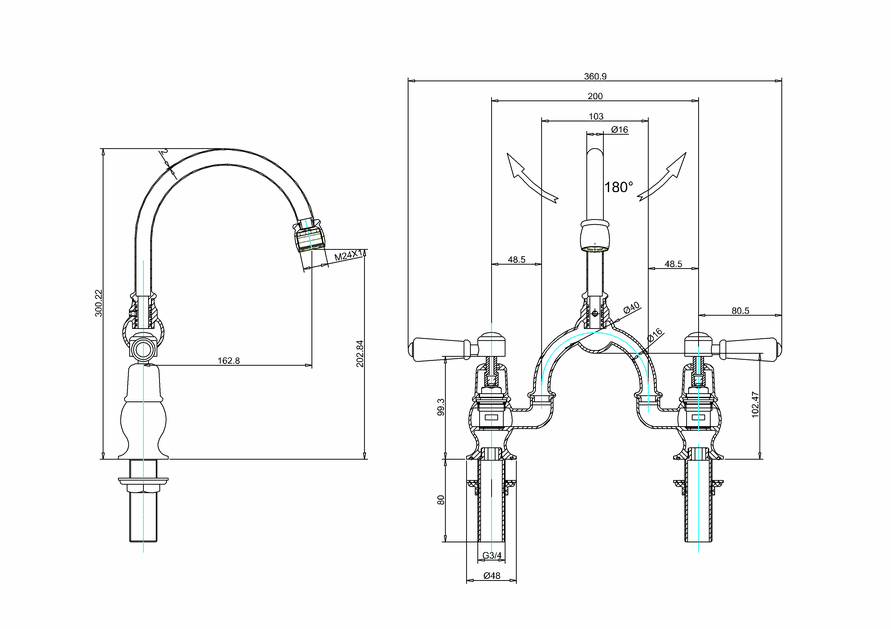

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
