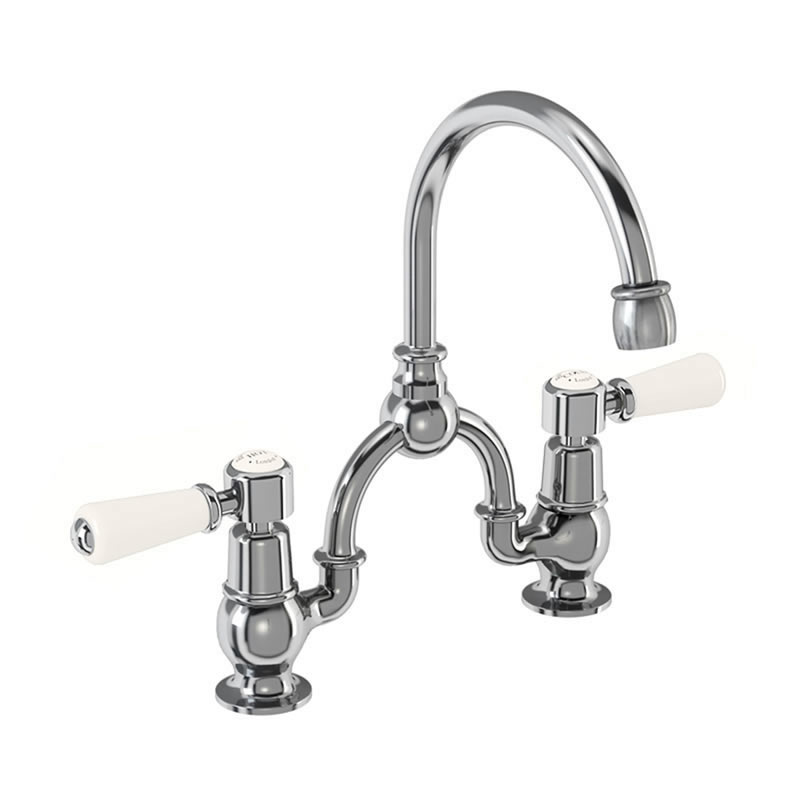

Burlington arch basin mixer with curved spout (200 mm tap centers)
Product Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
Claremont
|
Anglesey
|
Birkenhead
|
Kensington
|
quarter turn
|
Standard base
|
Regent base
|
White
|
Medici
|
Black
|
As Shown
| T4B Regent small single tap base |
| T24-QT Quarter turn arch mixer with curved spout 2TH |
| T4 MED Kensington tap handles (pair) - chrome & medici |
| KER27-QT MED-QT - Combined product code |
Colour
| T4B - regent tap base - Polished Chrome |
| T24-QT - tap - Polished Chrome |
| T4 MED - tap handle - Medici |
Gross Weight Including Packaging
| T4B - regent tap base - 0.42kg |
| T24-QT - tap - 2.2kg |
| T4 MED - tap handle - 0.34kg |
Packed Dimension
| T4B - 65 x 65 x 35 = 0.0001 m3 |
| T24-QT - 430 x 305 x 55 = 0.0072 m3 |
| T4 MED - 105 x 70 x 35 = 0.0003 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Supplied without a basin waste |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 6.4 | 9.2 | 17.6 | 24 | 30 | n/a | n/a |
| Spout (aerator) | 1.4 | 6.1 | 10.6 | 16.4 | 20.6 | n/a | n/a |
| SP70 | 3, 4 quarter turn COLD cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT |
| SP69 | 3, 4 quarter turn HOT cartridge for T27-QT, T25-QT, T24-QT, T9-QT, STA13-QT, STA14-QT |
| SP162 | aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1548 | aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP523 | chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps |
| SP1547 | flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP92 | G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT |
| SP1006 | o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT |
| SP1093 | thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT |
Downloads
- Instructions - PDF - T24-QT (English)
- Instructions - PDF - T4 MED (English)
- Instructions - PDF - T24-QT (French)
- Instructions - PDF - T4 MED (French)
-
2D CAD-File - DWG -
KER27-QT MED-QT
(KER27_W1_LD.dwg)
-
2D Drawing - PDF -
KER27-QT MED-QT
(KER27_W1_LD.pdf)
2D Drawing - PDF - KER27-QT MED-QT
-
3D DWG - File - DWG
-
KER27-QT MED-QT
(T24.dwg)
-
3D DXF - File - DXF
-
KER27-QT MED-QT
(T24.dxf)
-
3D IGS - File - IGS
-
KER27-QT MED-QT
(T24.igs)
- 3D DWG - File - DWG - T4B (T4B.dwg)
- 3D DWG - File - DWG - T24-QT (T24.dwg)
- 3D DXF - File - DXF - T24-QT (T24.dxf)
- 3D IGS - File - IGS - T24-QT (T24.igs)
- 3D DXF - File - DXF - T4B (T4B.dxf)
- 3D IGS - File - IGS - T4B (T4B.igs)
- 3D IGS - File - IGS - T4 MED (t4.igs)
