Burlington 3 tap hole basin mixer with pop-up waste

Product Options

Finish Options

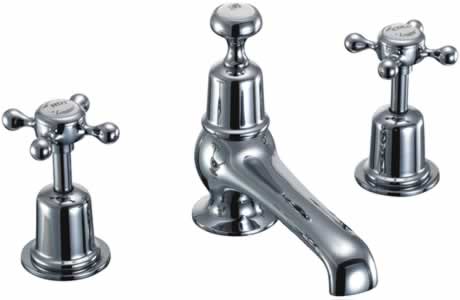

Claremont 3 tap hole mixer with pop up waste

Chrome

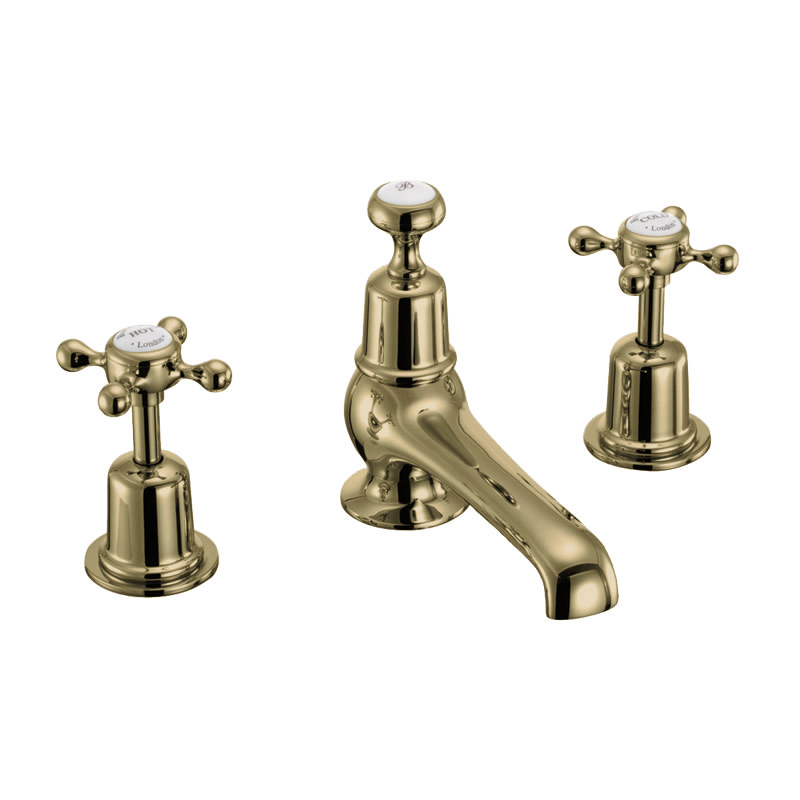

Gold

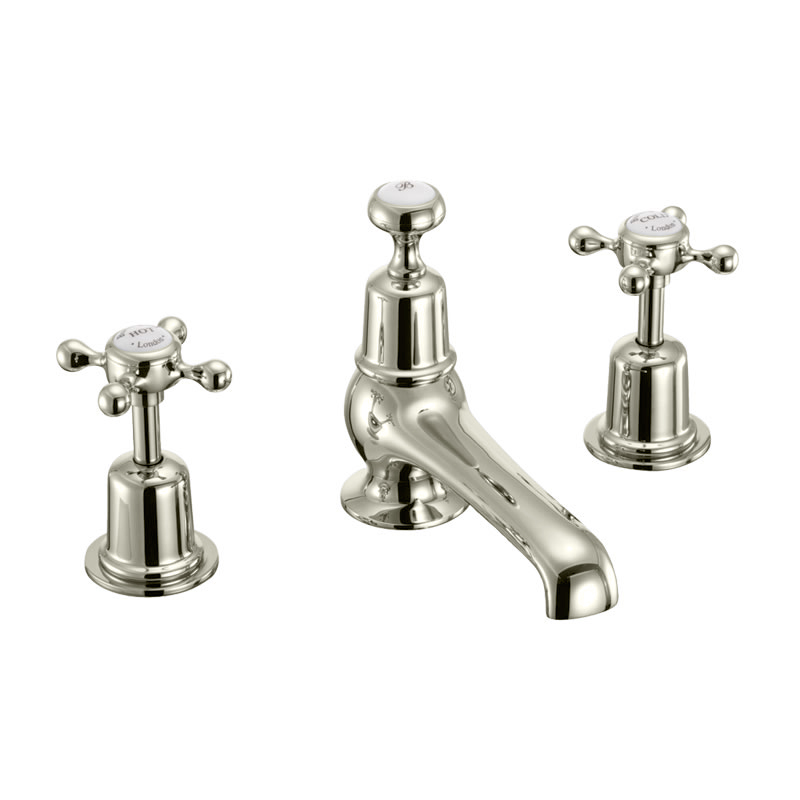

Nickel

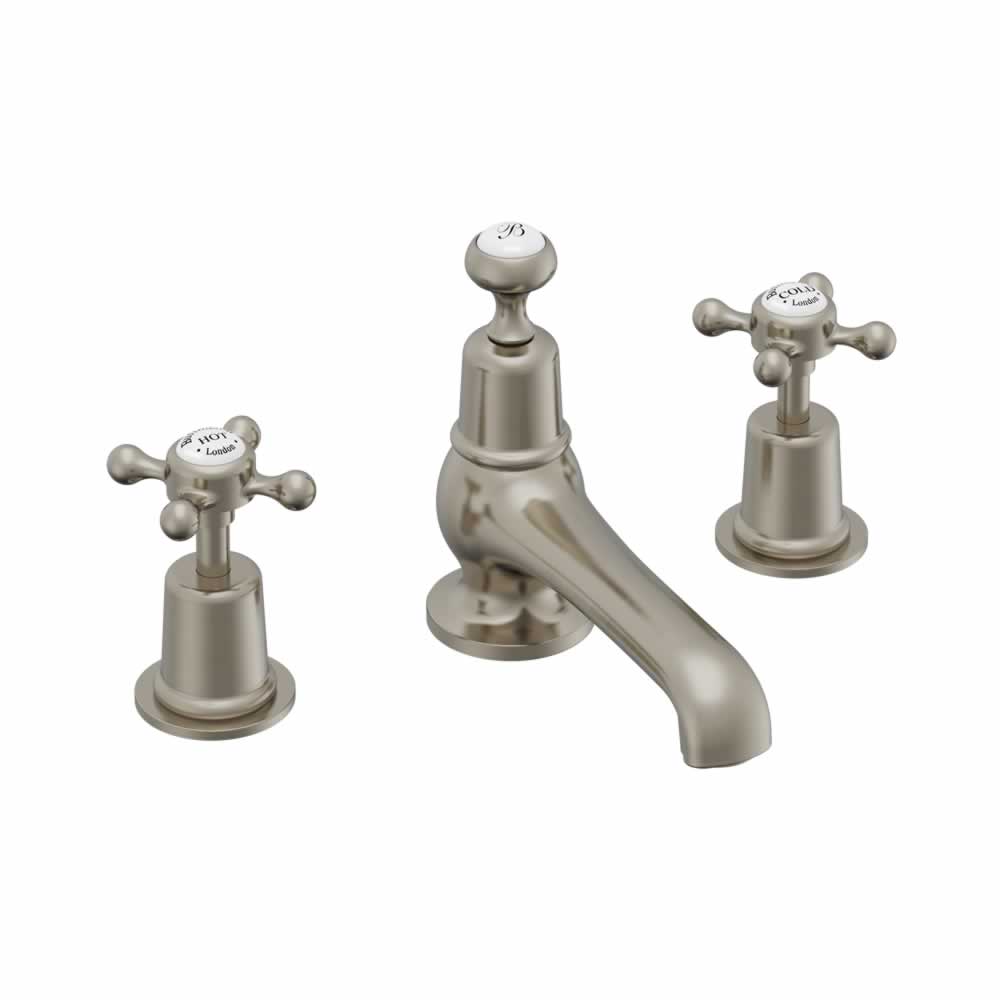

Brushed Nickel

Tap Head Options (Chrome Finish Shown)

Claremont

Anglesey

Birkenhead

Kensington

Quarter turn options

quarter turn

tradional screw-down

Tap Base options

Standard base

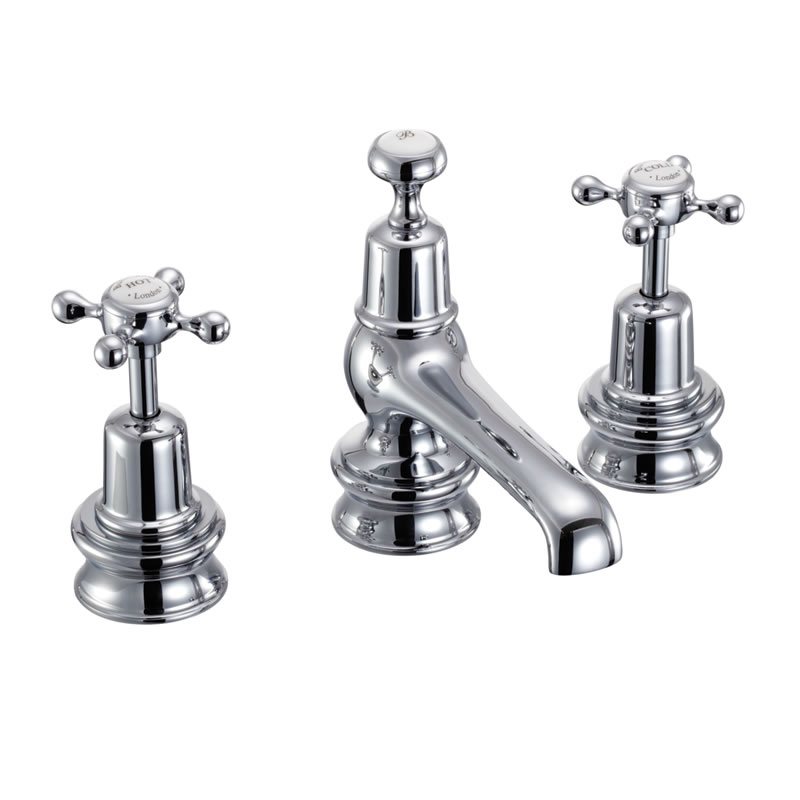

Claremont Regent 3 tap hole mixer with pop up waste

Regent base

Indicies & lever finish

White

Medici

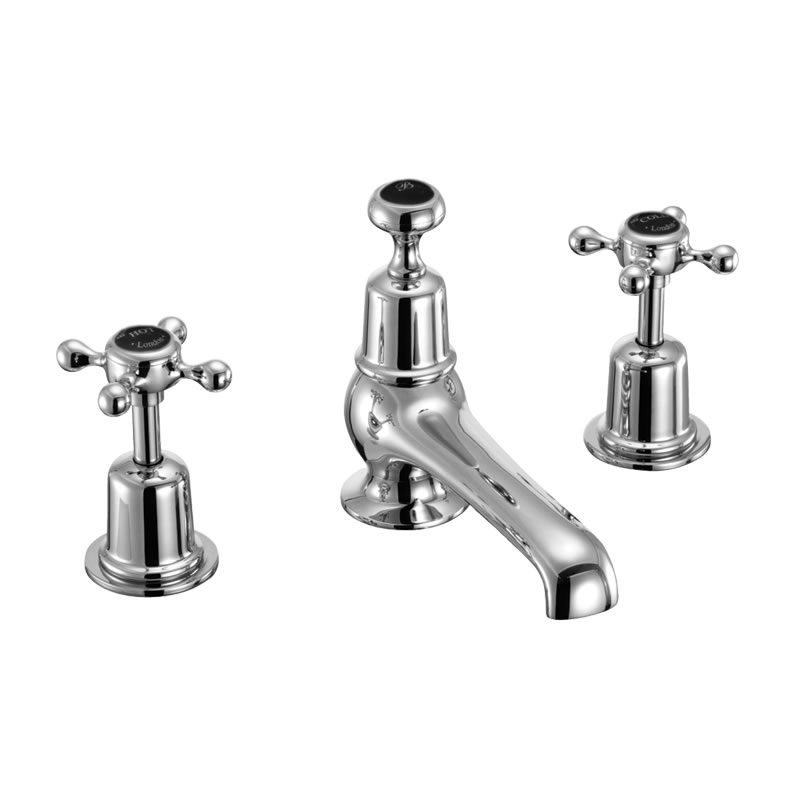

Black

As Shown

T14_QT Quarter turn 3TH with pop up

T1 Claremont tap handles

CL12-QT - Combined product code

Colour

T14_QT - tap - Polished Chrome

T1 - tap handle - Polished Chrome

Material

T14_QT - tap - Brass

T1 - tap handle - Brass

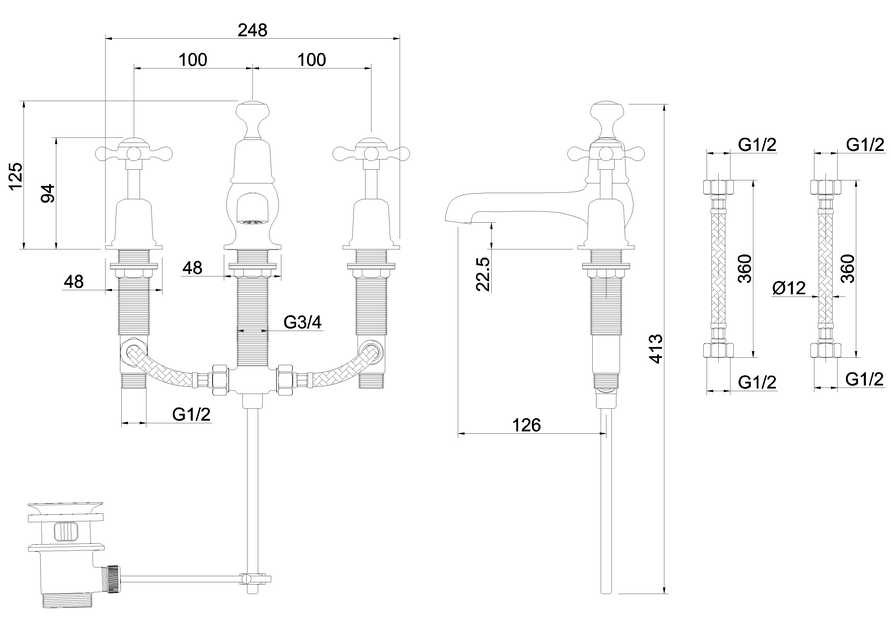

Size

T14_QT - 165 x 248 x 125mm

T1 - 65 x 65 x 28mm

Nett Weight

T14_QT - tap - 2.42kg

T1 - tap handle - 0.15kg

Gross Weight Including Packaging

T14_QT - tap - 2.89kg

T1 - tap handle - 0.17kg

Packed Dimension

T14_QT - 440 x 310 x 65 = 0.0089 m3

T1 - 60 x 60 x 62 = 0.0002 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

BS EN 817:2008

Additional Information

Gold and Nickel finish is only available with the quarter turn option

Gold and Nickel finish is only available with the Claremont handle

Gold and Nickel finish is only available with white indicies

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Supplied with pop up waste.

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	9.5	15.8	17.2	19.3	21.2	n/a	n/a
Spout (aerator)	4.1	7.7	8.9	10.6	11.6	n/a	n/a

Spare parts

SP450	aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP523	chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP931	decorative cap of Burlington tap handles - cold
SP930	decorative cap of Burlington tap handles - hot
SP468	decorative cover for T14
SP93	fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449	flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP92	G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT
SP451	key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP634	pair of flexible hoses for all finishes products of T14-QT, T14, T26 (360mm)
SP960	pair of valve bodies including the cartridges for T14-QT
SP974	plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
SP889	pop up basin waste of product T14, T14-QT, T26 (excluding the vertical pop up waste control rod)
SP1716	rod pipe in chrome finish for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED
SP1723	spout for T14, T14-QT, T14 BLA, T14-QT BLA
SP45	T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP76	T14 1, 2 quarter turn COLD cartridge
SP75	T14 1, 2 quarter turn HOT cartridge
SP102	T14, T14-QT pop up waste control rod
SP99	the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP1093	thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
SP1285	washers of pop up rod for all finishes products of T14, T14-QT, T26
