Burlington 3 tap hole basin mixer with pop-up waste
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options

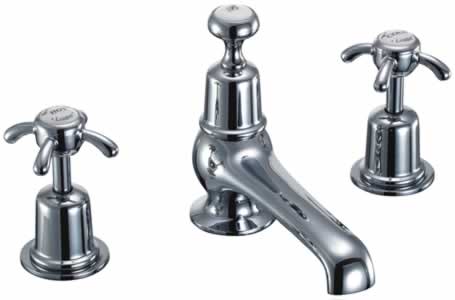

Anglesey 3 tap hole mixer with pop up waste Chrome
Tap Head Options (Chrome Finish Shown)
Claremont 3 tap hole mixer with pop up waste Claremont AngleseyTapHead.jpg Anglesey Birkenhead 3 tap hole mixer with pop up waste Birkenhead Kensington 3 tap hole mixer with pop up waste Kensington
Quarter turn options
qt_done.jpg quarter turn Anglesey 3 tap hole mixer with pop up waste tradional screw-down
Tap Base options

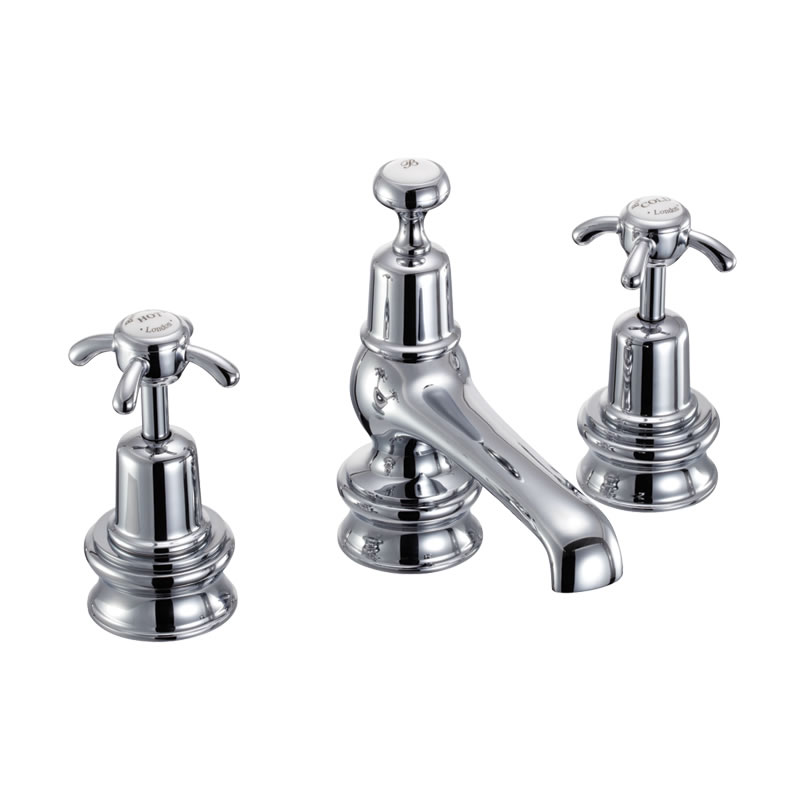

Anglesey 3 tap hole mixer with pop up waste Standard base Anglesey Regent 3 tap hole mixer with pop up waste Regent base
Indicies & lever finish

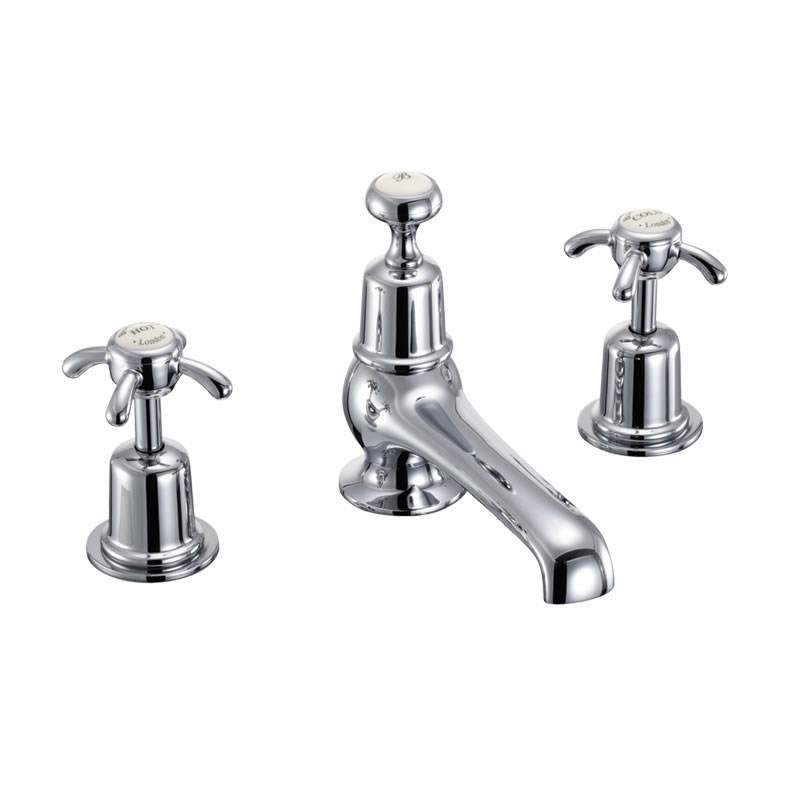

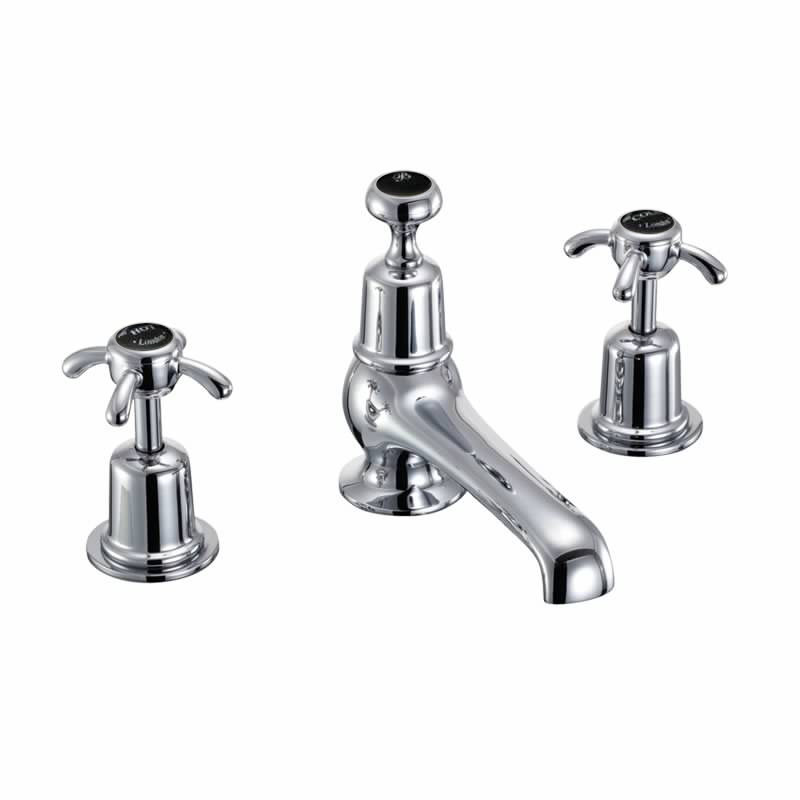

Anglesey 3 tap hole mixer with pop up waste White Anglesey Medici 3 Tap Hole Mixer with Pop Up Waste Medici Anglesey 3 tap hole mixer with pop up waste Black
Alternate Text
As Shown
T14-QT Quarter turn 3TH with pop up
T2 Anglesey tap handles
AN12-QT  -  Combined product code
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
Additional Information
Gold and Nickel finish is only available with the quarter turn option
Gold and Nickel finish is only available with the Claremont handle
Gold and Nickel finish is only available with white indicies
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Supplied with pop up waste.
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 9.5  15.8  17.2  19.3  21.2  n/a  n/a
Spout (aerator) 4.1  7.7  8.9  10.6  11.6  n/a  n/a
SP450 aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP468 decorative cover for T14
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449 flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP92 G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT
SP451 key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP634 pair of flexible hoses for all finishes products of T14-QT, T14, T26 (360mm)
SP960 pair of valve bodies including the cartridges for T14-QT
SP974 plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
SP889 pop up basin waste of product T14, T14-QT, T26 (excluding the vertical pop up waste control rod)
SP1716 rod pipe in chrome finish for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED
SP1723 spout for T14, T14-QT, T14 BLA, T14-QT BLA
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP76 T14 1, 2 quarter turn COLD cartridge
SP75 T14 1, 2 quarter turn HOT cartridge
SP102 T14, T14-QT pop up waste control rod
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP1093 thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
SP1285 washers of pop up rod for all finishes products of T14, T14-QT, T26
