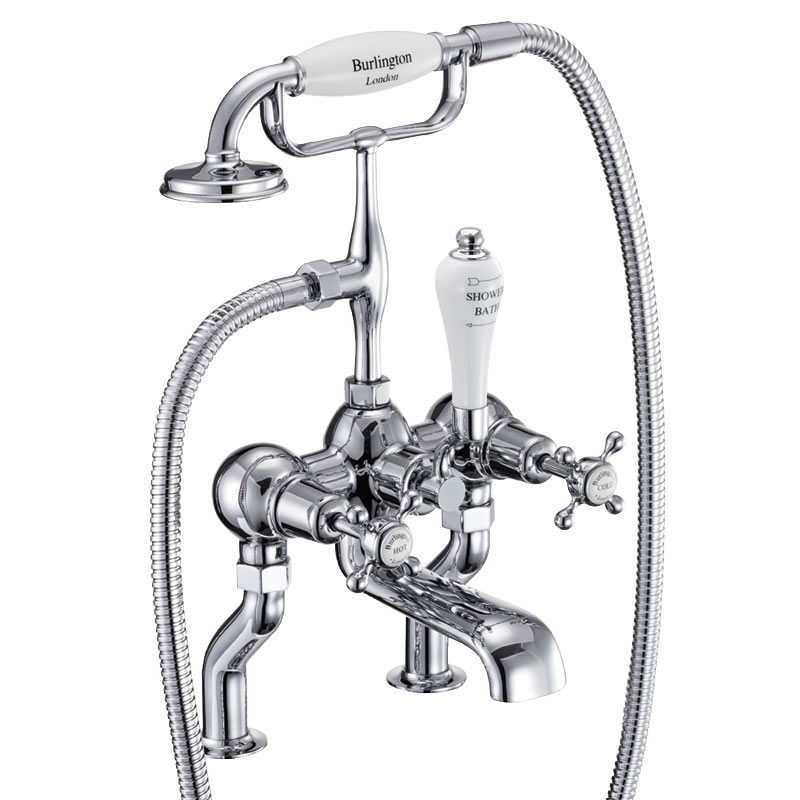

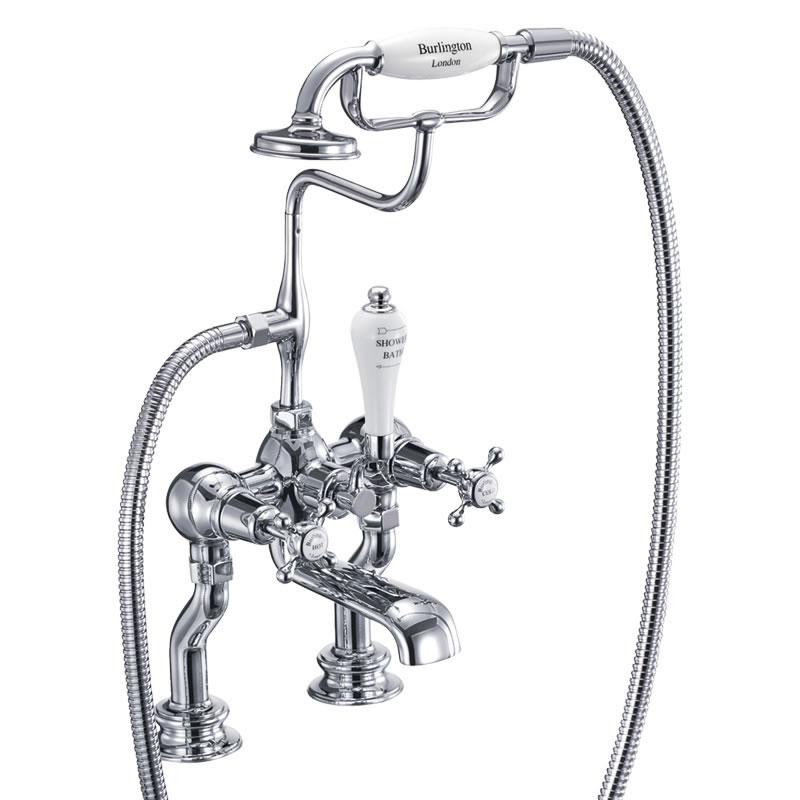

Burlington bath shower mixer deck mounted with S adjuster

Product Options

Finish Options

Claremont bath shower mixer - deck mounted

Chrome

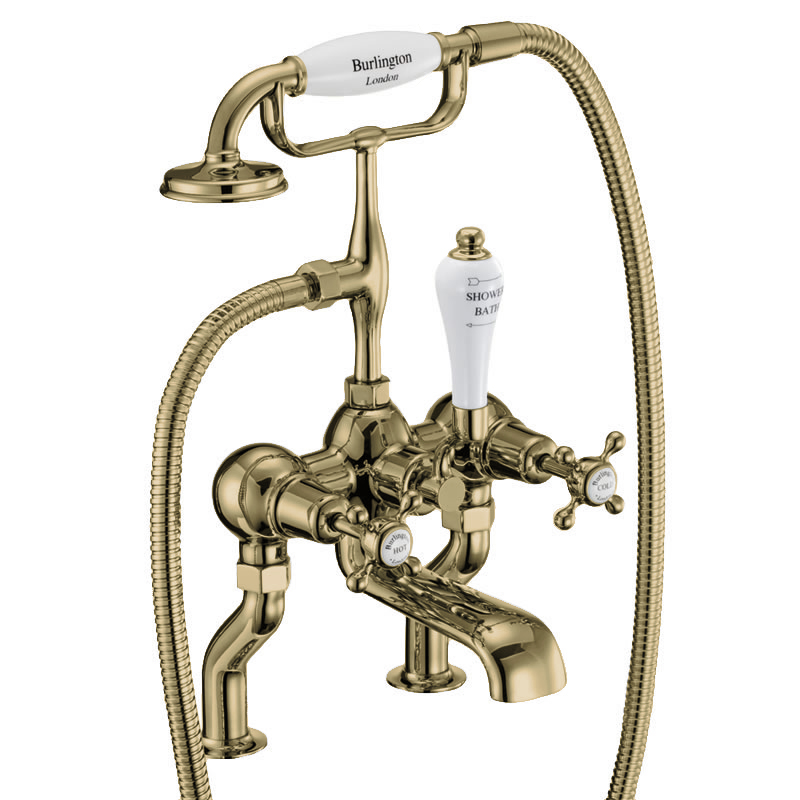

Gold

Nickel

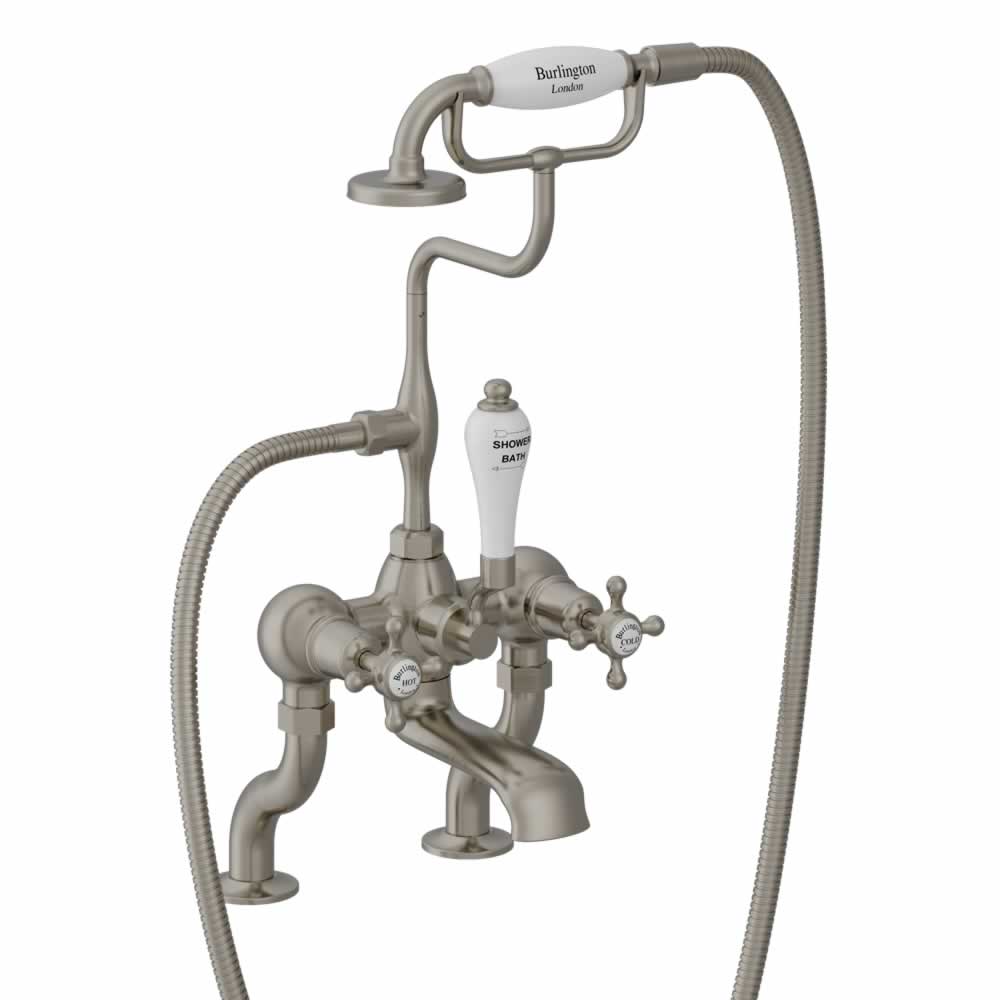

Brushed Nickel

Tap Head Options (Chrome Finish Shown)

Claremont

Anglesey

Birkenhead

Kensington

Quarter turn options

quarter turn

tradional screw-down

Tap Base options

Standard base

Claremont Regent bath shower mixer - deck mounted

Regent base

Indicies & lever finish

White

Medici

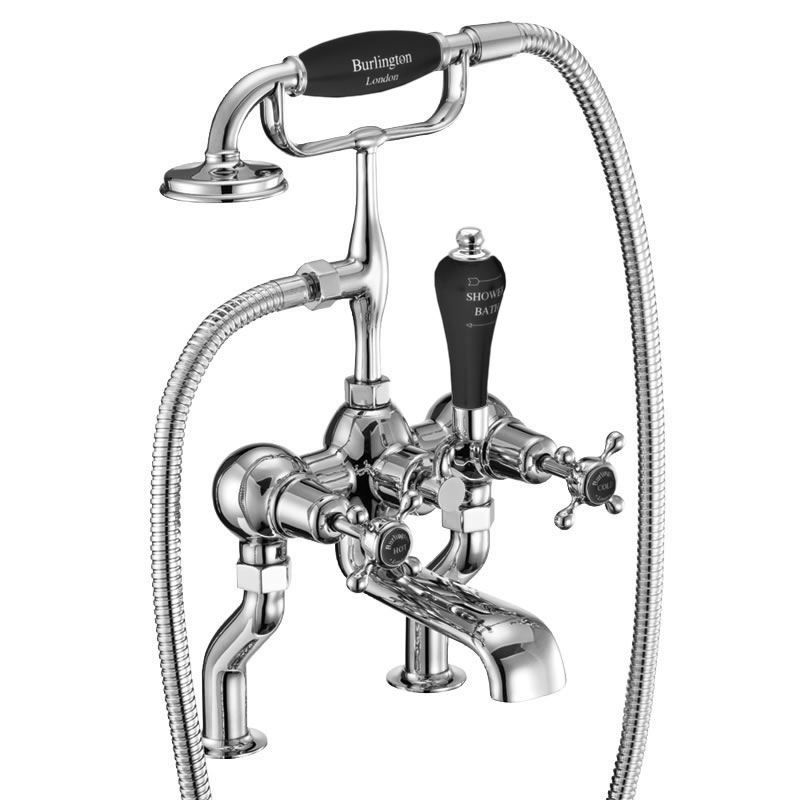

Black

As Shown

T8_QT Quarter turn bath shower mixer

T18 Deck mounting unions

T1 Claremont tap handles

CL15-QT - Combined product code

Colour

T8_QT - tap - Polished Chrome

T18 - accessories - Polished Chrome

T1 - tap handle - Polished Chrome

Material

T8_QT - tap - Brass

T18 - accessories - Brass

T1 - tap handle - Brass

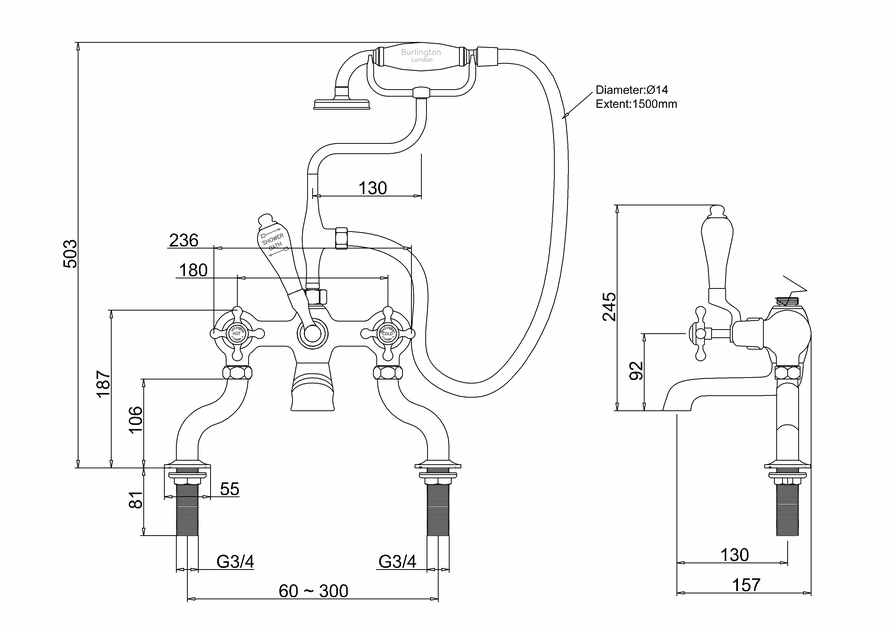

Size

T8_QT - 176.2 x 236 x 402.5mm

T18 - 55 x 255 x 106mm

T1 - 65 x 65 x 28mm

Nett Weight

T8_QT - tap - 4.02kg

T18 - accessories - 0.94kg

T1 - tap handle - 0.15kg

Gross Weight Including Packaging

T8_QT - tap - 4.76kg

T18 - accessories - 1.09kg

T1 - tap handle - 0.17kg

Packed Dimension

T8_QT - 375 x 365 x 215 = 0.0294 m3

T18 - 235 x 150 x 60 = 0.0021 m3

T1 - 60 x 60 x 62 = 0.0002 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

BS EN 817:2008

ACS Approved

Additional Information

Gold and Nickel finish is only available with the quarter turn option

Gold and Nickel finish is only available with the Claremont handle

Gold and Nickel finish is only available with white indicies

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (straightener)	22	22.6	25.2	27.2	29	n/a	n/a
Spout (aerator)	5.6	10.5	11.7	14.1	15.5	n/a	n/a
Handset	3.68	4.48	7.55	12.53	16.23	n/a	n/a

Spare parts

ACSH1	1.5m Shower hose with ACS approval for T8, T8-QT, TF2S, TF3S, AF3S, T2DB
SP162	aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548	aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
V26	burlington Shower hose 1500mm
SP1209	ceramic handle for Burlington telephone handset
SP523	chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP1771	cradle connector (including O ring) for T8, T8-QT, T9, T9-QT
SP557	cradle, handset holder, S adjuster for T8, T8-QT, T9, T9-QT
SP931	decorative cap of Burlington tap handles - cold
SP930	decorative cap of Burlington tap handles - hot
SP191	diverter for all finishes products of T8, T8-QT, T9, T9-QT
SP378	diverter handle for T8, T8-QT, T9, T9-QT
SP93	fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1547	flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP92	G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT
SP1480	inner connector for T10, T10-QT, T11, T11-QT, T8, T8-QT, T9, T9-QT
SP1722	o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2
SP1006	o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP317	s Adjustor for T8, T8-QT, T9, T9-QT
SP1072	set of parts used to connect the T8 BSM diverter and cross handle
SP45	T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP68	T8, T10, T11 3, 4 quarter turn COLD cartridge
SP67	T8, T10, T11 3, 4 quarter turn HOT cartridge
SP99	the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
