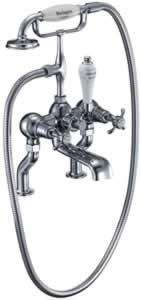

Burlington bath shower mixer deck mounted with S adjuster
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options
Anglesey bath shower mixer - deck mounted Chrome
Tap Head Options (Chrome Finish Shown)
Claremont bath shower mixer - deck mounted Claremont AngleseyTapHead.jpg Anglesey Birkenhead bath shower mixer - deck mounted Birkenhead Kensington bath shower mixer - deck mounted Kensington
Quarter turn options
qt_done.jpg quarter turn Anglesey bath shower mixer - deck mounted tradional screw-down
Tap Base options

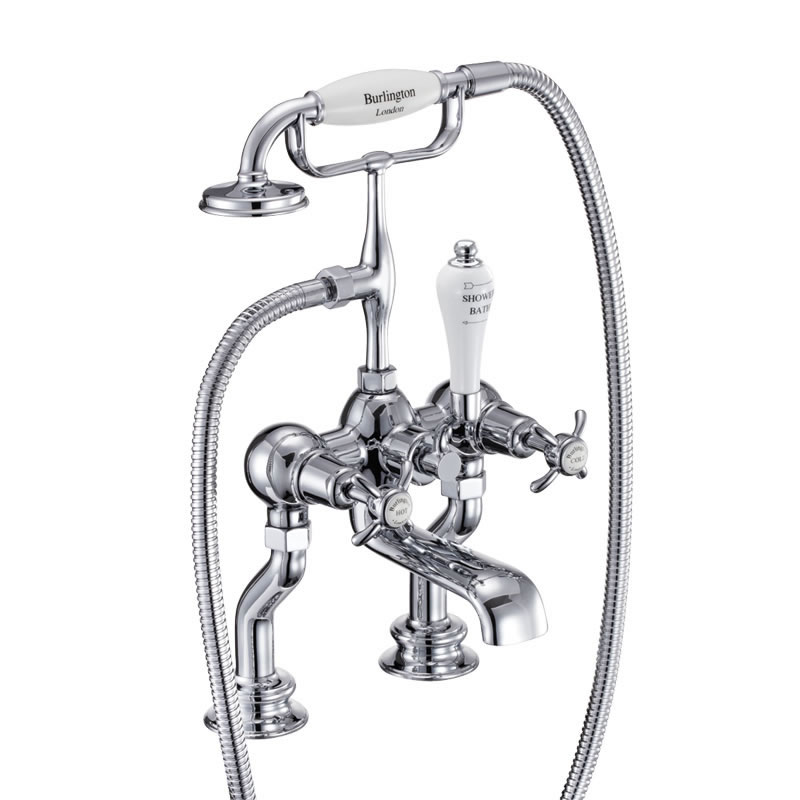

Anglesey bath shower mixer - deck mounted Standard base Anglesey Regent bath shower mixer - deck mounted Regent base
Indicies & lever finish

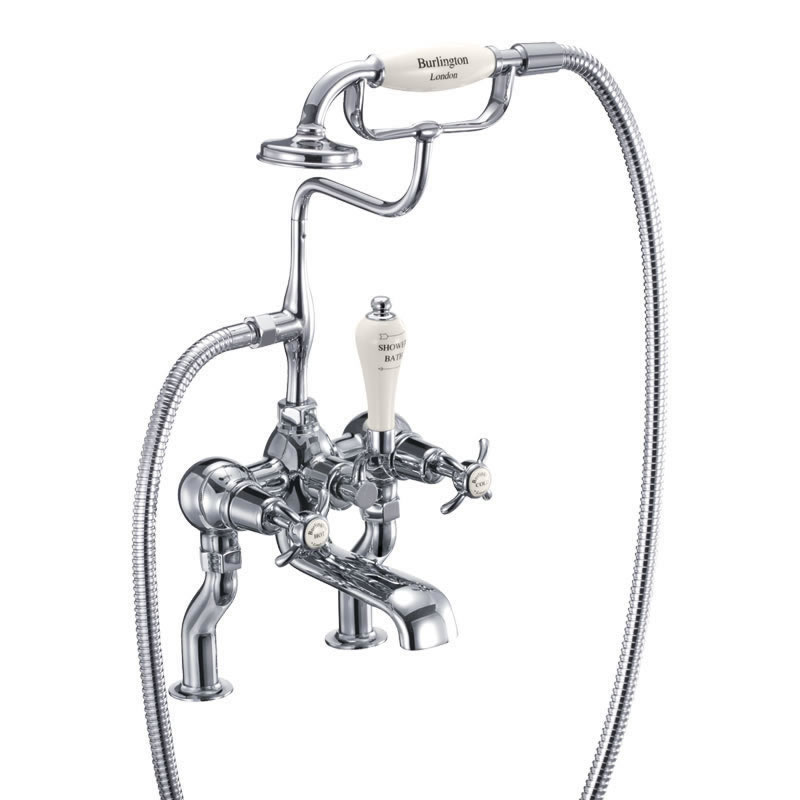

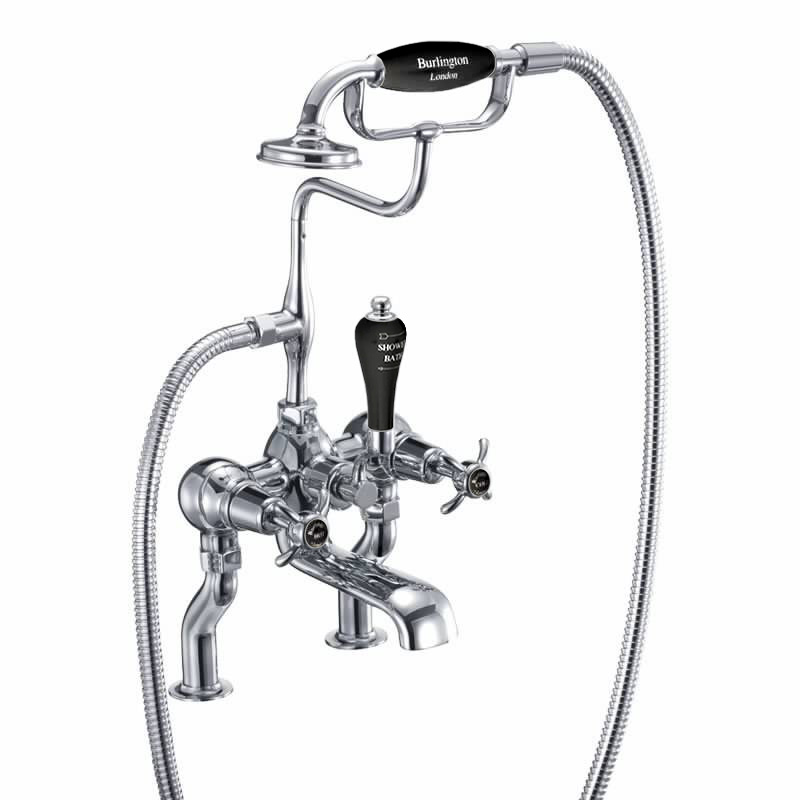

Anglesey bath shower mixer - deck mounted White Anglesey Medici bath shower mixer - deck mounted Medici Anglesey bath shower mixer - deck mounted Black
Alternate Text
As Shown
T8-QT Quarter turn bath shower mixer
T18 Deck mounting unions
T2 Anglesey tap handles
AN15-QT  -  Combined product code
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
ACS Approved
Alternate Text
Additional Information
Gold and Nickel finish is only available with the quarter turn option
Gold and Nickel finish is only available with the Claremont handle
Gold and Nickel finish is only available with white indicies
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 22  22.6  25.2  27.2  29  n/a  n/a
Spout (aerator) 5.6  10.5  11.7  14.1  15.5  n/a  n/a
Handset 3.68  4.48  7.55  12.53  16.23  n/a  n/a
ACSH1 1.5m Shower hose with ACS approval for T8, T8-QT, TF2S, TF3S, AF3S, T2DB
SP162 aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548 aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
V26 burlington Shower hose 1500mm
SP1209 ceramic handle for Burlington telephone handset
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP1771 cradle connector (including O ring) for T8, T8-QT, T9, T9-QT
SP557 cradle, handset holder, S adjuster for T8, T8-QT, T9, T9-QT
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP191 diverter for all finishes products of T8, T8-QT, T9, T9-QT
SP378 diverter handle for T8, T8-QT, T9, T9-QT
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1547 flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP92 G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT
SP1480 inner connector for T10, T10-QT, T11, T11-QT, T8, T8-QT, T9, T9-QT
SP1722 o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2
SP1006 o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP317 s Adjustor for T8, T8-QT, T9, T9-QT
SP1072 set of parts used to connect the T8 BSM diverter and cross handle
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP68 T8, T10, T11 3, 4 quarter turn COLD cartridge
SP67 T8, T10, T11 3, 4 quarter turn HOT cartridge
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
